Home /Products/Silent Diesel Generator/Professional diesel Generator Diesel Generator Set Powered by Doosan Super Silent Open 600kW 750KVA Power Plant

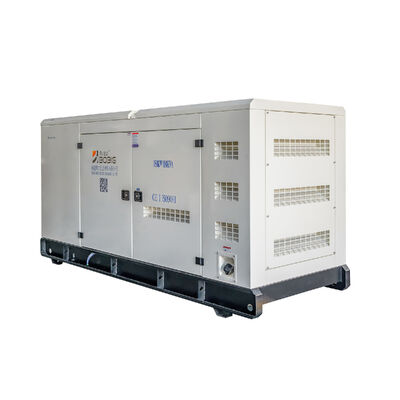

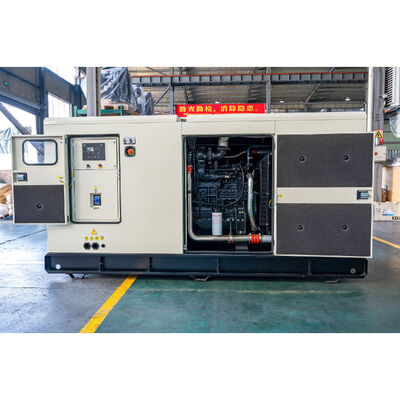

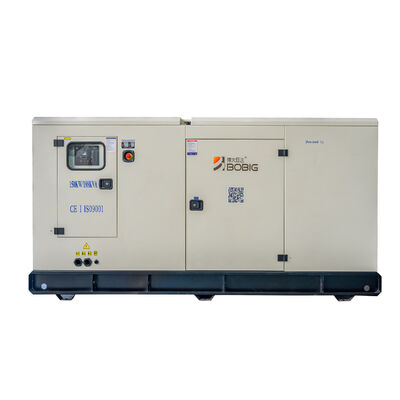

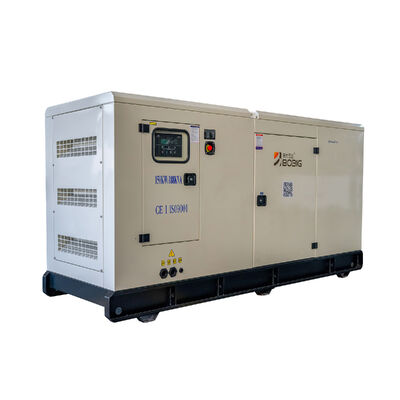

Professional diesel Generator Diesel Generator Set Powered by Doosan Super Silent Open 600kW 750KVA Power Plant

Professional diesel Generator Diesel Generator Set Powered by Doosan Super Silent Open 600kW 750KVA Power Plant
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 600kW , Powered By Doosan Diesel Generator, Standby Use Power Diesel Generator 750KVA
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 600kW
Engine: Original Doosan
Cooling Method: Water-cooling System
Highlight:

600kW silent diesel generator

,

Doosan powered generator set

,

750KVA super silent power plant
Basic Infomation
Place of Origin: China
Brand Name: Doosan
Certification: CE
Model Number: DP222LC
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 3000 Sets/Month
Product Description
600kW 750KVA BOBIG Doosan Diesel Generator (Model: DP222LC)
Our 600kW 750KVA BOBIG Doosan diesel generator (Model: DP222LC) is designed to provide reliable power for a wide range of applications. Backed by the renowned Doosan brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 600kW (750KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: DP222LC Doosan engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 750 825
Power Rating (kW) 600 660
Frequency (Hz) 50
Engine Model DP222LC
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation

ESP: Standby power rating applicable for emergency power supply during utility power interruptions
Dimensions and Weight
Model BDO825 (Open Type) BDO825S (Silent Type)
Length (mm) 4500 5600
Width (mm) 1800 2200
Height (mm) 2745 2550
Tank Capacity (L) 1380 1380
Engine Specifications
Engine Model & Manufacturer DP222LC (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 128×142mm
Displacement 21.9 liters
Cylinders and Arrangement Cast iron, 12 cylinder, Vee-Type
Battery Charging Alternator 27.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 40 liters, Min. 27 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 1420kg (engine only)
Dimension (LxWxH) 1738 × 1389 × 1258 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354FS
Alternator Rated Power 600kw/750kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Quality & Compliance
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Customization & Services
  • Customization and OEM services available with design drawings
  • Units equipped with original power supplies and standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Packaging & Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
