Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS

1
MOQ
USD 4500-7200
Price
Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

350KW silent diesel generator

,

auto start standby power generator

,

open frame electric generator set
Basic Infomation
Place of Origin: China
Brand Name: YTO
Model Number: YM6S9LF-DA
Payment & Shipping Terms
Packaging Details: 450*181*236cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description
Silent High-performance Electric Standby Power Diesel Generator Set

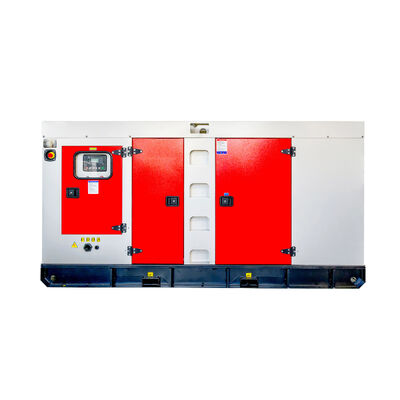

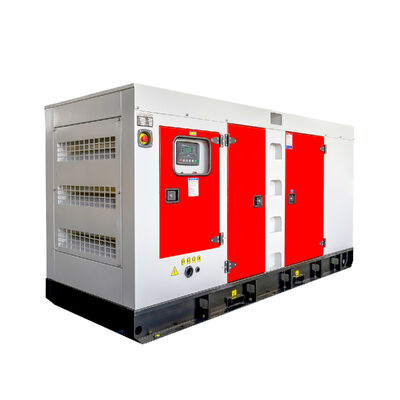

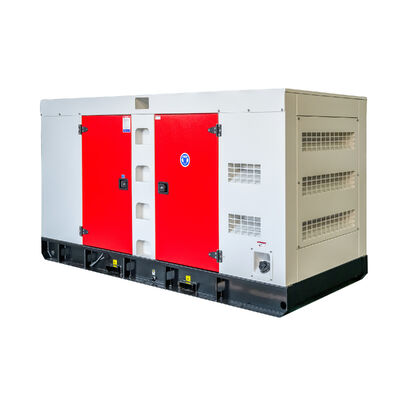

Our YTO YM6S9LF-DA Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 350kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS 0 Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 438 481
Power Rating (kW) 350 385
Frequency (Hz) 50
Engine Model YM6S9LF-DA
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation period.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Dimensions and Weight
Model BYT481 (Open Type) BYT481S (Silent Type)
Length (mm) 3600 4500
Width (mm) 1500 1810
Height (mm) 2460 2360
Tank Capacity (L) 805 805
Engine Specifications
Engine Model & Manufacturer YM6S9LF-DA (YTO)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Air Aspiration Method Turbocharged with air to air cooler
Cooling Medium Liquid
Bore 126 mm
Stroke 155 mm
Compression Ratio 17.0:1
Cubic Capacity 11.596 L
Dry Engine Weight 1100 kg
Dimensions (L×W×H) 1229 × 1813 × 965 mm
Rotation Direction Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-5-3-6-2-4 (1 cylinder furthest from flywheel)
Steady State Speed Stability ≤ 3% at constant load
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354C
Rated Power 350kW / 438kVA
Rated Voltage 230V / 400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude Rating ≤ 1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤ 50
Total Harmonic Factor (THF) ≤ 2%
Voltage Regulation, Steady State ≤ ±1%
Specific Fuel Consumption ≤ 210g/kW·h
Transient State Voltage ≤ -15% to +20%

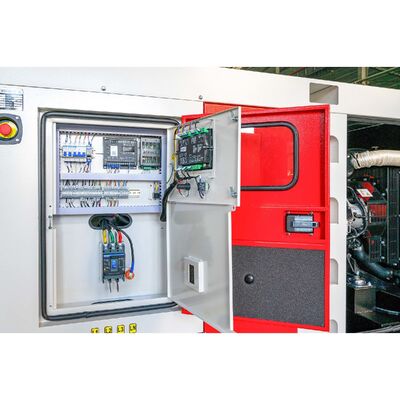

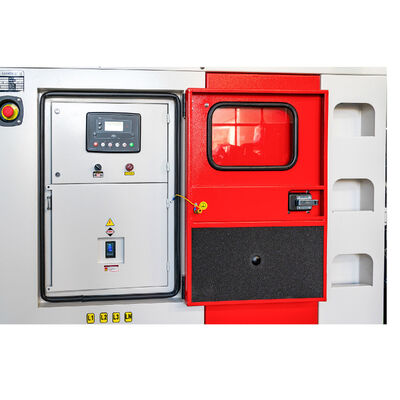

Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatically transfers between mains (utility) and generator
  • Hours counter for accurate maintenance monitoring
  • User-friendly set-up and button layout
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS 2
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility and internal PLC editor
  • 3-phase generator and mains sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains current and power monitoring
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • Real time clock and engine run-time scheduler
  • IP65 rating (with optional gasket)
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS 3 Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS 4 Silent High-performance Electric Standby Power Diesel Generator Set Auto Start Open Frame for 350KW 438KW 385KW 50Hz ATS 5
