Home /Products/Silent Diesel Generator/Low Noise Durable Customizable Water-cooled Fuel Efficiently Doosan Engine Silent Diesel Generator Set 520kW 650KVA

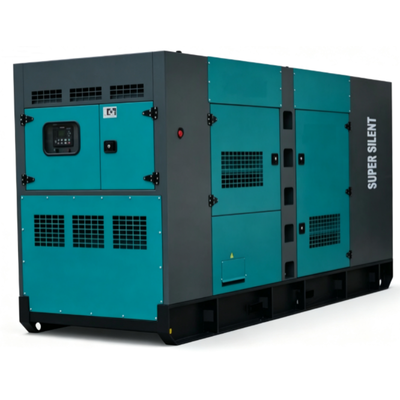

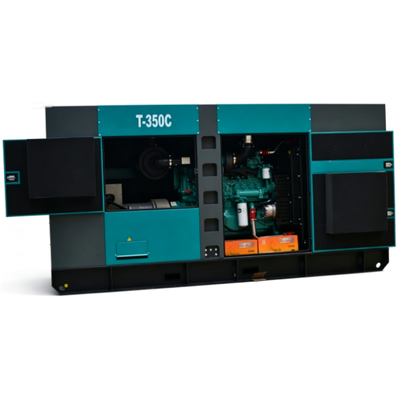

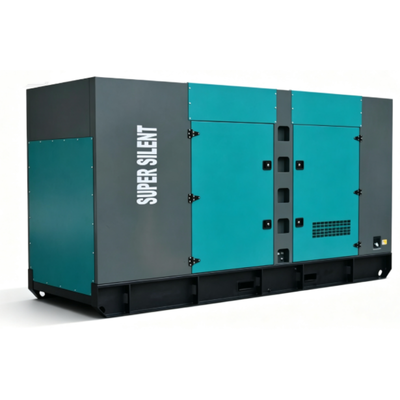

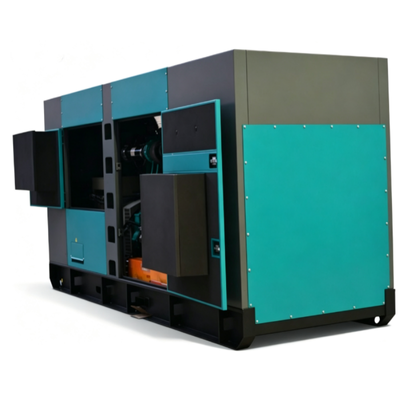

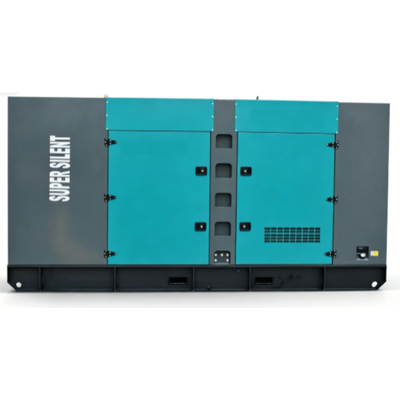

Low Noise Durable Customizable Water-cooled Fuel Efficiently Doosan Engine Silent Diesel Generator Set 520kW 650KVA

Low Noise Durable Customizable Water-cooled Fuel Efficiently Doosan Engine Silent Diesel Generator Set 520kW 650KVA
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 650KVA, Powered By Doosan Diesel Generator, Standby Use Power Diesel Generator 520kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 520kW
Engine: Original Doosan
Cooling Method: Water-cooling System
Highlight:

silent diesel generator set 520kW

,

water-cooled Doosan engine generator

,

customizable fuel efficient generator
Basic Infomation
Place of Origin: China
Brand Name: Doosan
Certification: CE
Model Number: DP180LB
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 3000 Sets/Month
Product Description
520kW 650KVA Doosan Diesel Generator Set
Our 520kW 650KVA BOBIG Doosan diesel generator (Model: DP180LB) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned Doosan brand, it delivers high-quality performance and long-term durability.
Key Features
Power Performance
Rated at 520kW (650KVA) with stable prime power output for continuous operation under heavy loads. Operates at standard 50Hz frequency suitable for most electrical equipment.
Engine Excellence
Powered by DP180LB Doosan engine featuring advanced technology, high torque, fuel efficiency, and low emissions. Runs at 1500 RPM for smooth, consistent power with minimal wear.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 650 715
Power Rating (kW) 520 572
Frequency (Hz) 50
Engine Model DP180LB
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications with 10% overload capability for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power supply during utility interruptions.
Dimensions and Weight
Model BDO715 (Open) BDO715S (Silent)
Length (mm) 4500 5600
Width (mm) 1800 2200
Height (mm) 2745 2550
Tank Capacity (L) 1196 1196
Engine Details
Engine Model & Manufacturer DP180LB (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 128 × 142mm
Displacement 18.3 liters
Cylinders and Arrangement Cast iron, 10 cylinder, Vee-Type
Battery Charging Alternator 27.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical type in injpump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 34 liters, Min. 23 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 1250kg (engine only)
Dimension (LxWxH) 1592 × 1389 × 1223 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354F
Alternator Rated Power 520kw/650kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Customization & Features
We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller (engine, generator, and controller are optional).
Generator controller and components
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Certifications
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.
Quality certification Industry certification
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Professional after-sales service available 24/7.
Why Choose Us
  • Brand Reputation: Doosan is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
