Home /Products/Silent Diesel Generator/Double-sided Spray Painting for rust Prevention 220kW 275KVA Water-cooled Type Doosan Super Silent Diesel Generator Set

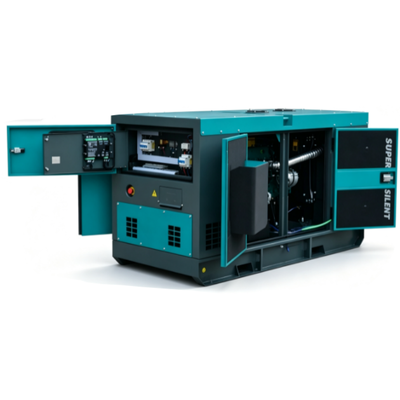

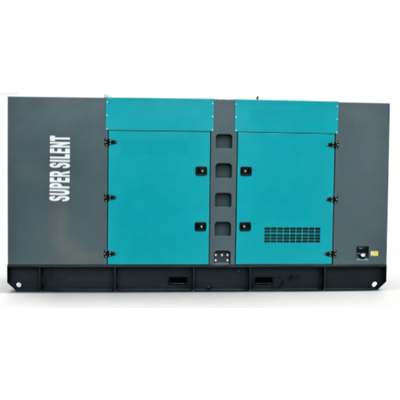

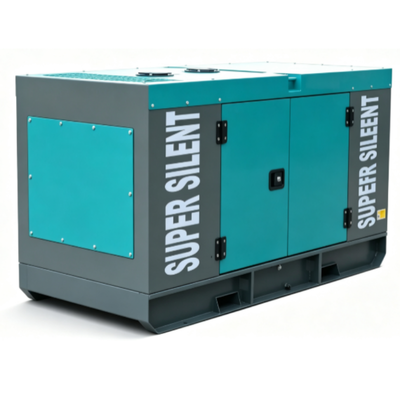

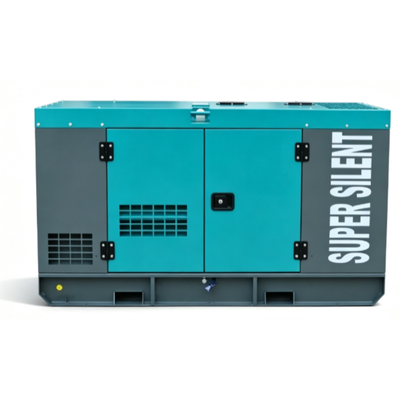

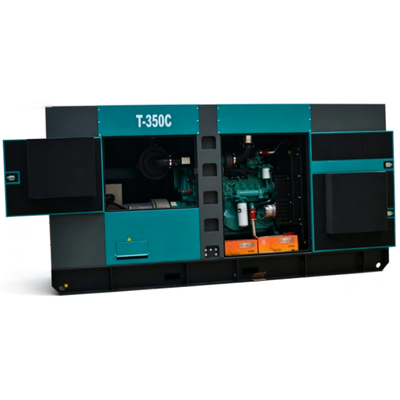

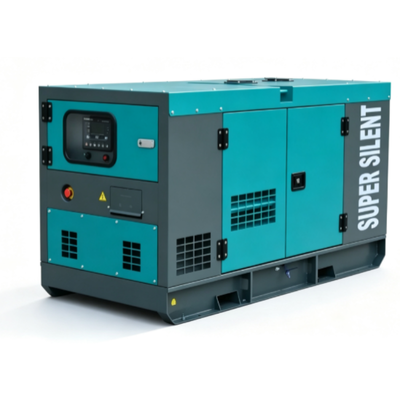

Double-sided Spray Painting for rust Prevention 220kW 275KVA Water-cooled Type Doosan Super Silent Diesel Generator Set

Double-sided Spray Painting for rust Prevention 220kW 275KVA Water-cooled Type Doosan Super Silent Diesel Generator Set
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 220kW , Powered By Doosan Diesel Generator, Standby Use Power Diesel Generator 275KVA
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 220kW
Engine: Original Doosan
Cooling Method: Water-cooling System
Highlight:

Doosan silent diesel generator set

,

Water-cooled diesel generator 220kW

,

Super silent diesel generator 275KVA
Basic Infomation
Place of Origin: China
Brand Name: Doosan
Certification: CE
Model Number: P126TI
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 3000 Sets/Month
Product Description
220kW 275KVA BOBIG Doosan Diesel Generator Set
Our 220kW 275KVA BOBIG Doosan diesel generator (Model: P126TI) provides reliable power for industrial, commercial, and residential applications. Built with Doosan engine technology, it delivers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 220kW (275kVA)
Frequency: 50Hz
Stable prime power output for continuous operation
Engine Excellence
Engine Model: P126TI Doosan
Engine Speed: 1500 RPM
High torque, fuel efficiency, and low emissions
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 275 303
Power Rating (kW) 220 242
Frequency (Hz) 50
Engine Model P126TI
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity ≥ 8h @ 75% load
Dimension and Weight
Model BDO303 (Open) BDO303S (Silent)
Length (mm) 3100 3900
Width (mm) 1050 1400
Height (mm) 2100 1950
Tank Capacity (L) 506 506
Engine Details
Engine Model & Manufacturer P126TI (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 123 × 155mm
Displacement 11 liters
Cylinders and Arrangement Cast iron, 6 cylinder, In-line Type
Battery Charging Alternator 28.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Dry Weight 950kg (engine only)
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314CS
Rated Power 220kW/275kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Protection Grade IP23
Insulation Class H class
Environmental Specifications
Ambient Temperature: +5°C to +40°C
Altitude: Up to 1000m (custom solutions available for different conditions)
Certifications & Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE standards
Product Certification Quality Standards Certification
Applications
  • Industrial Use: Backup power for factories and manufacturing facilities
  • Commercial Buildings: Office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Customization & Services
We support customization and OEM services with design drawings
Standard DSE 6120 controller included (engine, generator, and controller options available)
Packaging: Plywood case
Delivery: 10-15 working days after receiving deposit
Generator Controller
Warranty & Support
1-year or 1000-hour warranty (whichever comes first)
Free spare parts during warranty period for quality issues
24/7 technical support and after-sales service
Parts available within 3-5 days
