Home /Products/Silent Diesel Generator/Original KOFO 30kW 38KVA Open or Silent Diesel Generator Set CE Certified, Factory Direct, Built to European Standards

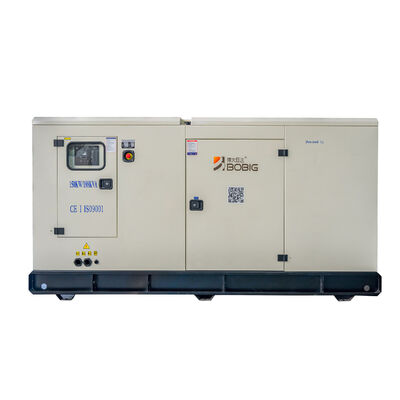

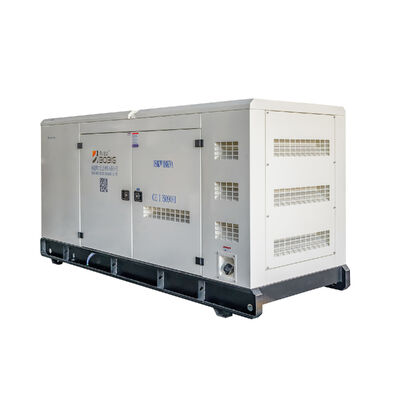

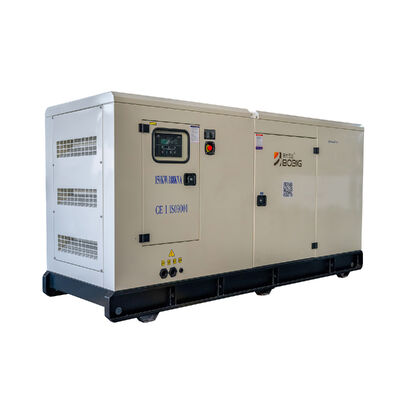

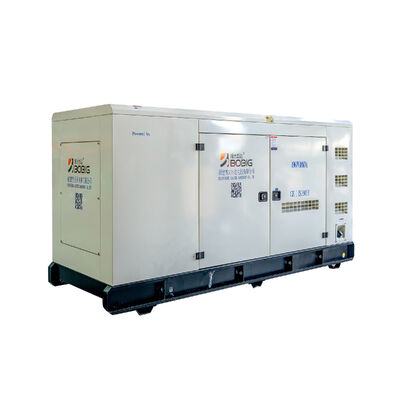

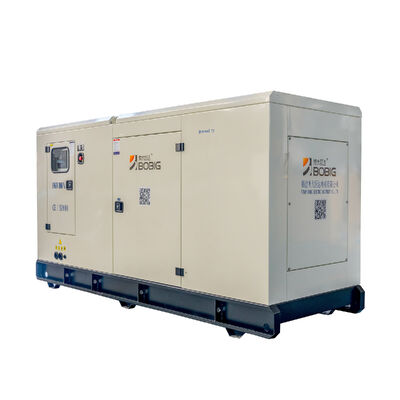

Original KOFO 30kW 38KVA Open or Silent Diesel Generator Set CE Certified, Factory Direct, Built to European Standards

Original KOFO 30kW 38KVA Open or Silent Diesel Generator Set CE Certified, Factory Direct, Built to European Standards
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 38KVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 30kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 30kW
Engine: Original KOFO
Cooling Method: Water-cooling System
Highlight:

Original KOFO 30kW diesel generator

,

38KVA silent diesel generator set

,

CE certified diesel generator
Basic Infomation
Place of Origin: China
Brand Name: KOFO
Certification: CE
Model Number: MN4105DS-38
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description
30kW 38KVA KOFO Diesel Generator Set
Original KOFO 30kW 38KVA open or silent diesel generator set, CE certified, factory direct, built to European standards. Model: MN4105DS-38.
Product Overview
Our 30kW 38KVA BOBIG KOFO diesel generator is engineered to deliver reliable power for diverse applications. Backed by the reputable KOFO brand, it ensures high-quality performance and long-term durability.
Power Performance
  • Rated Power: 30kW (38KVA) for industrial, commercial, and residential applications
  • Stable prime power output ensures continuous operation under heavy loads
  • Standard frequency: 50Hz, compatible with most electrical equipment
Engine Specifications
  • Engine Model: MN4105DS-38 KOFO engine
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Advanced technology with high torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 38 41
Power Rating (kW) 30 33
Frequency (Hz) 50
Engine Model MN4105DS-38
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BW41 (Open Type) BW41S (Silent Type)
Length (mm) 1670 2200
Width (mm) 760 880
Height (mm) 1160 1200
Tank Capacity (L) 69 69
Engine Details
Engine Model & Manufacturer MN4105DS-38 (KOFO)
Air Intake Mode Natural aspiration
Number of Cylinders 4
Bore Diameter × Stroke (mm) 105×120
Displacement (L) 4.15
Fuel Consumption Rate (g/kW.h) ≤220
Cooling System Force Water Cooling Cycle
Starting Method Electric start
Net Mass (kg) 360
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184FS
Rated Power 30kW/38kva
Rated Voltage 230v/400v
Protection Grade IP23
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Certifications and Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, ensuring quality, safety, and reliability.
KOFO Generator Certification 1 KOFO Generator Certification 2
Customization and Services
  • Customization and OEM services available with design drawings
  • Standard DSE 6120 controller included (engine, generator, and controller options available)
  • One-year or 1200-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Applications
  • Industrial Use: Backup power for factories during outages
  • Commercial Buildings: Office buildings, shopping malls, hotels
  • Residential Areas: Reliable power for communities with unstable grids
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C
  • Altitude: Up to 1000m (custom solutions available for other conditions)
KOFO Diesel Generator Controller
Packaging and Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
