Original KOFO 24kW 30kVA Silent Diesel Generator Set | CE Certified, Factory Direct Price with European Quality Standards

Original KOFO 24kW 30kVA Silent Diesel Generator Set | CE Certified, Factory Direct Price with European Quality Standards
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 30kVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 24kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 24kW
Engine: Original KOFO
Cooling Method: Water-cooling System
Highlight:

Original KOFO silent diesel generator

,

24kW diesel generator set

,

CE certified diesel generator
Basic Infomation
Place of Origin: China
Brand Name: KOFO
Certification: CE
Model Number: MN4100DS-30
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description

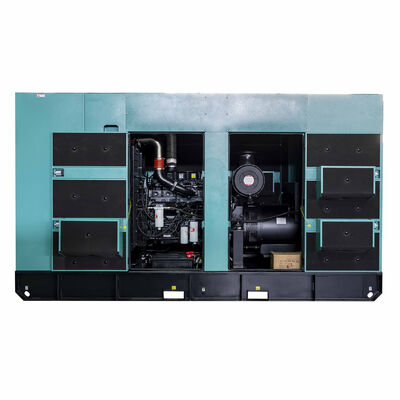

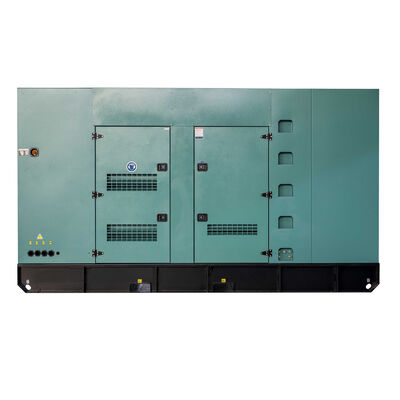

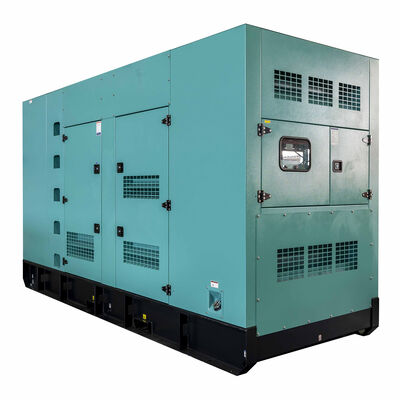

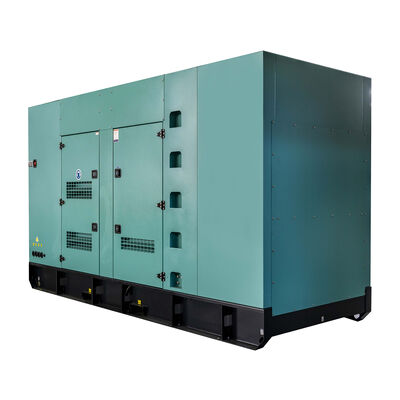

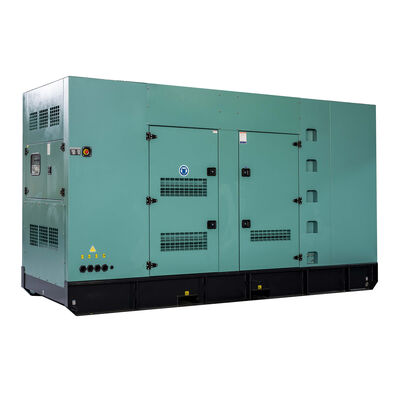

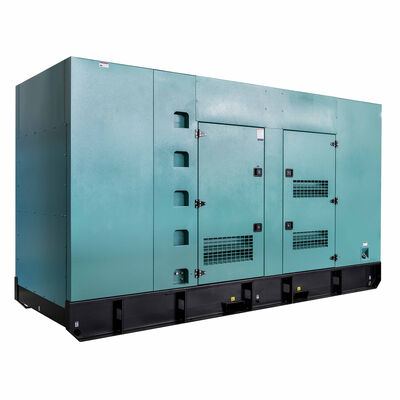

Original KOFO 24kW 30kVA Silent Diesel Generator Set
CE Certified, Factory Direct Price with European Quality Standards
Product Overview
Our 24kW 30KVA BOBIG KOFO diesel generator (Model: MN4100DS-30) is designed to provide reliable power for a wide range of applications. Backed by the renowned KOFO brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 24kW (30KVA) for industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: MN4100DS-30 KOFO engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
Power Ratings
General Information Prime Power Standby Power
Rated Power (kVA) 30 33
Power Rating (kW) 24 26
Frequency (Hz) 50
Engine Model MN4100DS-30
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BW33 (Open Type) BW33S (Silent Type)
Length (L) mm 1550 2150
Width (W) mm 610 880
Height (H) mm 1150 1200
Tank Capacity (L) 55 55
Engine Specifications
Engine Model & Manufacturer MN4100DS-30 (KOFO)
Air Intake Mode Natural Inspiration
Number of Cylinders 4
Way of Burning Direct Injection
Bore Diameter × Stroke (mm) 100 × 115
Aspiration Naturally Aspirated
Displacement (L) 3.61
Cooling System Force Water Cooling Cycle
Starting Method Electric Start
Net Mass (kg) 390
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184G
Alternator Rated Power 24kw/30kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use at altitudes up to 1000m
  • Custom Solutions: Available for different environmental conditions
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Certifications and Standards
Our generator complies with multiple international and national standards, including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Generator Certification 1 Generator Certification 2
Customization and Services
  • We support customization and OEM services with design drawings
  • All units equipped with original power supplies and standard DSE 6120 controller
  • Engine, generator, and controller options available
Generator Controller System
Warranty and After-Sales Service
BOBIG products have a guarantee for one year or 1200 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality. Our professional after-sales service team is available 24/7 for technical support, maintenance, and repair services.
Why Choose Us
  • Brand Reputation: KOFO is a well-known and trusted brand in the diesel generator industry
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Customized solutions based on your specific requirements
Packaging & Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
Generator Packaging 1 Generator Packaging 2
