Home /Products/SDEC Diesel Generator/500kW 625KVA SDEC Silent Diesel Generator Set Integrated Auto-Start Controller Factory Direct Sales Large-scale Customization

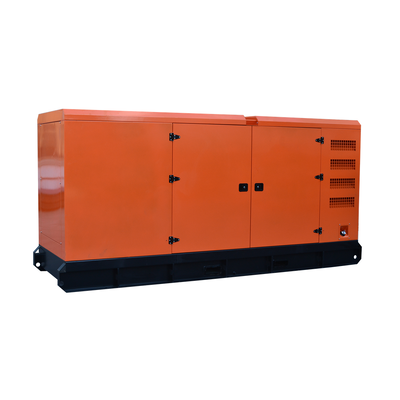

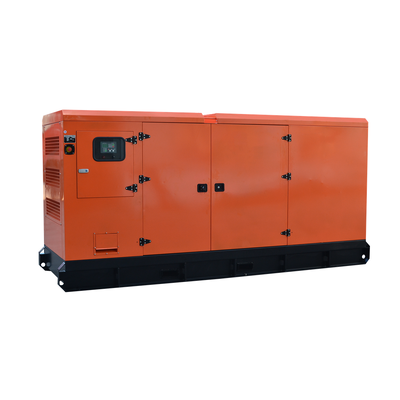

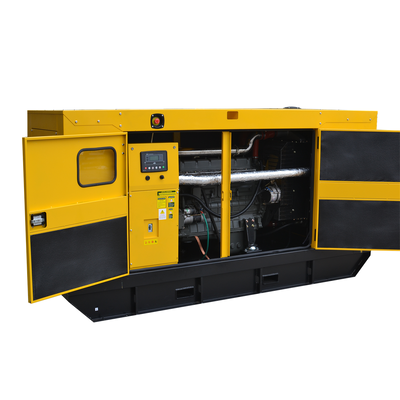

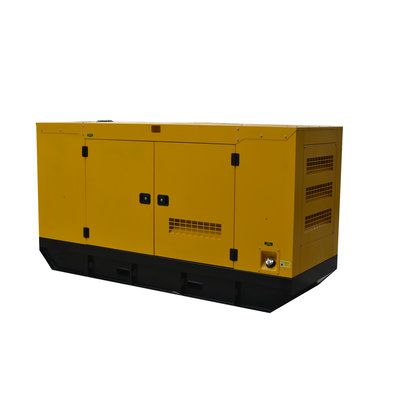

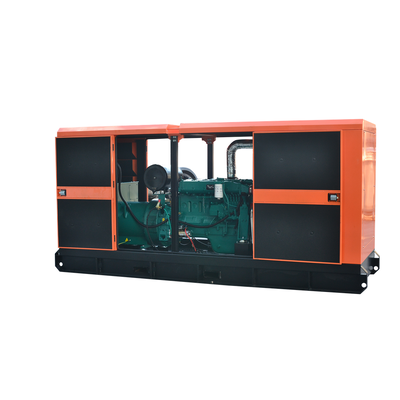

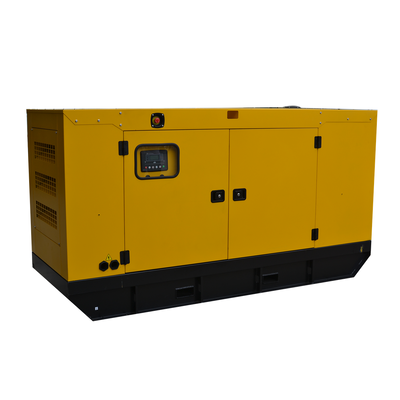

500kW 625KVA SDEC Silent Diesel Generator Set Integrated Auto-Start Controller Factory Direct Sales Large-scale Customization

500kW 625KVA SDEC Silent Diesel Generator Set Integrated Auto-Start Controller Factory Direct Sales Large-scale Customization
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 625KVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 500kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 500kW
Engine: Original SDEC
Cooling Method: Water-cooling System
Highlight:

500kW SDEC silent diesel generator

,

625KVA auto-start diesel generator

,

large-scale SDEC generator customization
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: SC27G830D2
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description
500kW 625KVA SDEC Silent Diesel Generator Set

Our 500kW 625KVA BOBIG SDEC diesel generator (Model: SC27G830D2) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned SDEC brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: 500kW (625KVA) prime power output

Frequency: 50Hz standard operation

Voltage: 400/230V (customizable)

Phase: 3-phase, 4-wire system

Power Factor: 0.8

Engine Excellence

Engine Model: SC27G830D2 (SDEC)

Engine Speed: 1500 RPM

Engine Type: V-type, 4-stroke, water-cooled, turbocharged with aftercooler

Cylinders: 12 cylinders, 26.6L displacement

Fuel System: Direct injection with electric governor

Technical Specifications
Power Ratings
Parameter Prime Power Standby Power
Rated Power (kVA) 625 688
Power Rating (kW) 500 550
Fuel Consumption ≥ 8 hours @ 75% load
Dimensions & Weight
Model Type Length (mm) Width (mm) Height (mm) Tank Capacity (L)
Open Type (BSD688) 3800 1740 2745 1150
Silent Type (BSD688S) 4500 1810 2360 1150
Engine Details
Engine Model SC27G830D2 (SDEC)
Type V-type, 4 strokes, water-cooled, 2 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinders 12
Bore × Stroke 135 × 155 mm
Displacement 26.6 lit.
Compression Ratio 16 : 1
Dry Weight 2080 kg
Alternator Specifications
Alternator Brand BOBIG (FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD)
Alternator Model BW-354E
Rated Power 500kW/625kVA
Protection Grade IP23
Insulation Class H class
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Voltage Regulation ≤±1% (Steady State), ≤-15%~+20% (Transient State)
Environmental Specifications

Ambient Temperature: Operational range of +5°C to +40°C

Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)

Compliance: ISO 8528-5:2018, GB/T2820.5-2009, and CE certified

Control System & Customization

Standard units include the DSE 6120 auto-start controller with digital control system. We support comprehensive customization and OEM services with design drawings. Engine, generator, and controller options are available.

BOBIG SDEC Diesel Generator Control System
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Quality Certifications
BOBIG Quality Certification 1 BOBIG Quality Certification 2
Why Choose BOBIG SDEC Generators
  • Brand Reputation: SDEC is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
  • Comprehensive Warranty: 1 year or 1000 hours warranty with 24/7 support
Manufacturing Capability

With 10,000 square meters factory area, 160 employees including 20 technicians, and advanced equipment including CAD systems, automated assembly, and digital testing equipment. ISO9000 Quality System Certified.

Factory & Facilities
BOBIG Factory Overview BOBIG Manufacturing Facility
Production Workshop
BOBIG Production Workshop 1 BOBIG Production Workshop 2
Advanced Equipment
BOBIG Manufacturing Equipment 1 BOBIG Manufacturing Equipment 2
Production Process
BOBIG Production Process 1 BOBIG Production Process 2
Quality Testing
BOBIG Quality Testing 1 BOBIG Quality Testing 2
Packaging & Shipping
BOBIG Packaging Process 1 BOBIG Packaging Process 2
Service & Support

BOBIG products include a 1-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of defective parts. After warranty expiration, we offer cost-effective spare parts and maintenance services.

Frequently Asked Questions
Ordering & Payment

Q: What is your MOQ, payment method, and delivery time?

A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Shipping & Export

Q: Which port do you use for export?

A: Fuzhou port, Fujian province or as customer requested.

Parts & Maintenance

Q: Do you provide spare parts for maintenance?

A: Yes, we provide air filter, water filter, fuel filter, and oil filter for self-maintenance.

Customization

Q: Can you customize voltage, frequency, tank capacity, phase, and color?

A: Yes, all parameters can be customized according to your requirements.

Distribution

Q: What is your distribution policy?

A: We welcome distributors worldwide and provide authority certificates and agreements.
