High Quality 500kW 625KVA Silent Diesel Generator Set SDEC Integrated Auto-Start Controller and Heavy Duty Alternator ISO/CE

High Quality 500kW 625KVA Silent Diesel Generator Set SDEC Integrated Auto-Start Controller and Heavy Duty Alternator ISO/CE
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 625KVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 500kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 500kW
Engine: Original SDEC
Cooling Method: Water-cooling System
Highlight:

500kW silent diesel generator

,

625KVA SDEC generator set

,

auto-start diesel generator with alternator
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: 6KTAA25-G310
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description

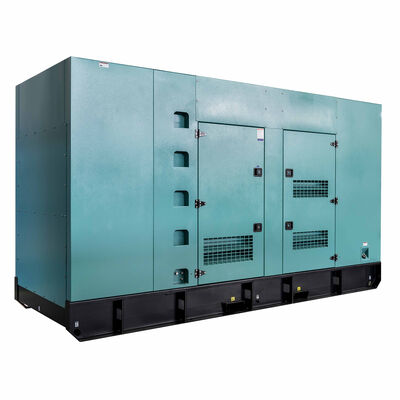

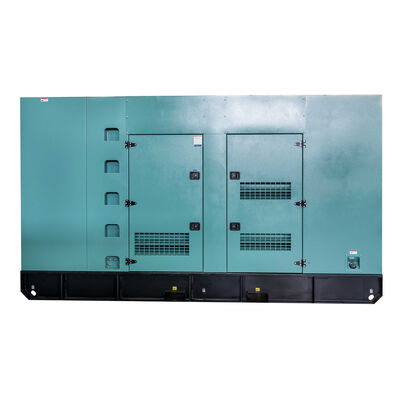

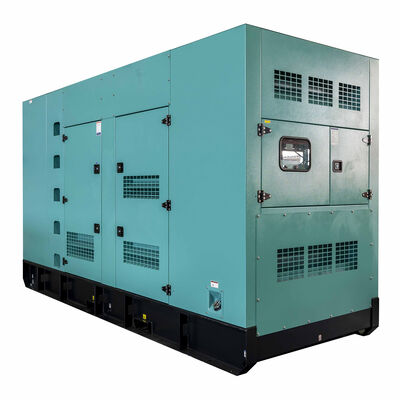

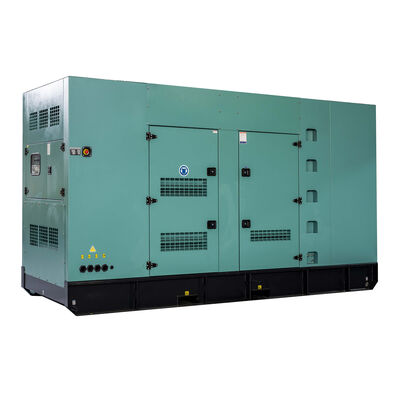

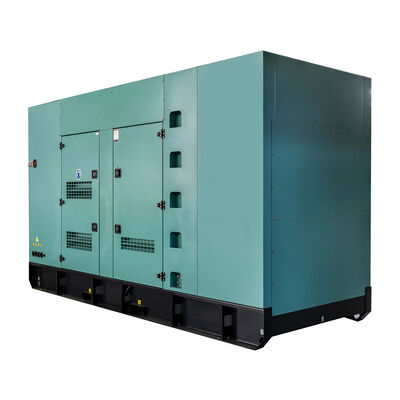

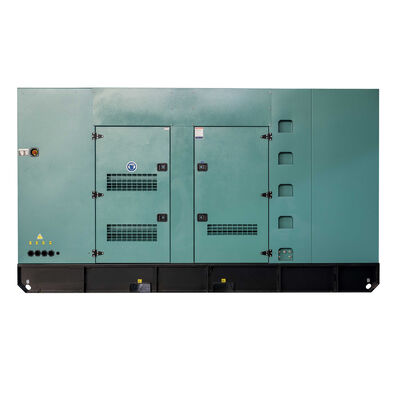

500kW 625KVA Silent Diesel Generator Set
High-quality SDEC integrated auto-start controller with heavy-duty alternator, ISO/CE certified for reliable power solutions.
Product Overview
Our 500kW 625KVA BOBIG SDEC diesel generator (Model: 6KTAA25-G310) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned SDEC brand, it delivers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 500kW (625KVA) for various industrial applications
  • Stable prime power output ensures continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: 6KTAA25-G310 SDEC engine
  • Advanced technology with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 625 688
Power Rating (kW) 500 550
Frequency (Hz) 50
Engine Model 6KTAA25-G310
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power supply during utility interruptions.
Dimensions and Weight
Model BSD688 (Open Type) BSD688S (Silent Type)
Length (mm) 3900 5400
Width (mm) 1610 2000
Height (mm) 2500 2500
Tank Capacity (L) 1150 1150
Engine Specifications
Engine Model & Manufacturer 6KTAA25-G310 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 170 × 185 mm
Displacement 25.2 lit.
Compression Ratio 16 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle Electronic control
Dry Weight 2760 kg
Dimension 2348×1181×1659mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354E
Alternator Rated Power 500kw/625kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Quality Certifications
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.
Quality Certification 1 Quality Certification 2
Customization & Services
  • We support customization and OEM services with design drawings
  • All units equipped with original power supplies and standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • 24/7 technical support, maintenance, and repair services
Why Choose Our Diesel Generators
  • Brand Reputation: SDEC is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured according to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
