SDEC Silent diesel Generators Set 450kW 563KVA Integrated Auto-Start Controller Heavy Duty Alternator ISO/CE Certified

SDEC Silent diesel Generators Set 450kW 563KVA Integrated Auto-Start Controller Heavy Duty Alternator ISO/CE Certified
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 563KVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 450kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 450kW
Engine: Original SDEC
Cooling Method: Water-cooling System
Highlight:

SDEC silent diesel generator 450kW

,

SDEC diesel generator with auto-start controller

,

heavy duty diesel generator ISO/CE certified
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: SC27G755D2
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description

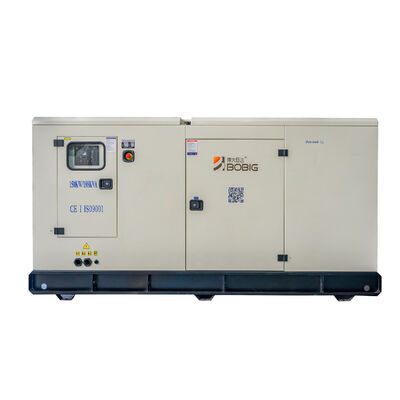

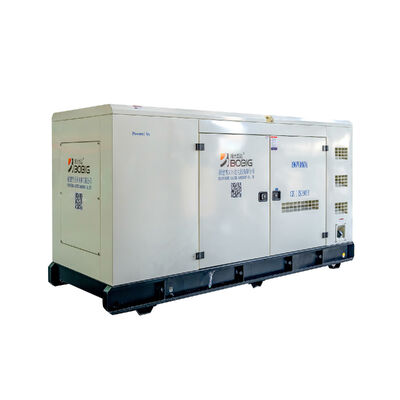

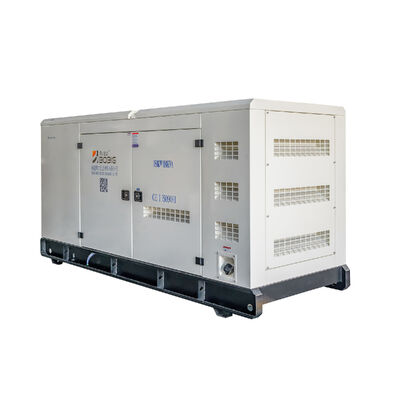

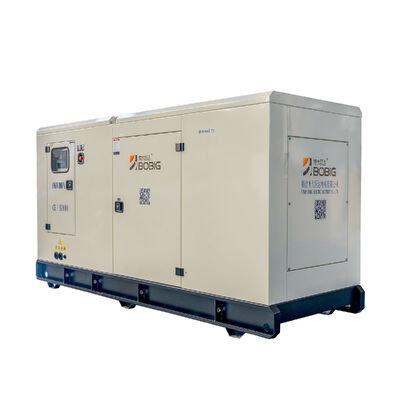

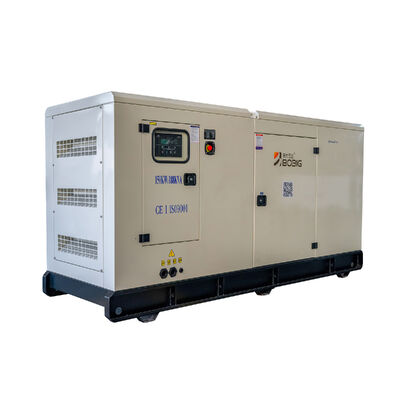

450kW 563KVA SDEC Silent Diesel Generator Set
Model: SC27G755D2 - Reliable Power Solution with Integrated Auto-Start Controller and Heavy Duty Alternator
Product Overview
Our 450kW 563KVA BOBIG SDEC diesel generator (Model: SC27G755D2) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the renowned SDEC brand, it offers superior performance, fuel efficiency, and long-term durability.
Key Features
Power Performance
  • Rated Power: 450kW (563KVA) for stable, efficient operation under heavy loads
  • Standard Frequency: 50Hz compatibility with most electrical equipment
  • Continuous operation capability with prime power output
Engine Excellence
  • Engine Model: SC27G755D2 SDEC engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • High torque, fuel efficiency, and low emissions design
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 563 619
Power Rating (kW) 450 495
Frequency (Hz) 50
Engine Model SC27G755D2
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.

ESP (Standby Power): Applicable for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability.
Dimensions and Weight
Model BSD619 (Open Type) BSD619S (Silent Type)
Length (mm) 3600 4500
Width (mm) 1500 1810
Height (mm) 2460 2360
Tank Capacity (L) 1035 1035
Engine Specifications
Engine Model & Manufacturer SC27G755D2 (SDEC)
Engine Type V-type, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 12
Bore × Stroke 135 × 155 mm
Displacement 26.6 lit.
Compression Ratio 16 : 1
Firing Order 1-12-5-8-3-10-6-7-2-11-4-9
Fuel Injection Advance Angle 13.5°BTDC
Dry Weight 2080 kg
Dimension 1930x1686x1872mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354DS
Alternator Rated Power 450kw/563kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Adaptability
  • Ambient Temperature Range: +5°C to +40°C
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
Certifications and Standards
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
ISO and CE Certification for SDEC Diesel Generator Quality Standards Certification for Power Equipment
Applications
Industrial Use: Backup power for factories ensuring continuous production during outages
Commercial Buildings: Power for offices, shopping malls, and hotels maintaining essential services
Residential Areas: Reliable power for communities with unstable power grids
Customization and Services
  • We support customization and OEM services with design drawings
  • All units equipped with original power supplies and standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Why Choose Our Diesel Generators
  • Brand Reputation: SDEC is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions for specific requirements
  • Technical Support: Comprehensive after-sales service and maintenance
Packaging and Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit. Shipping typically through Fuzhou port, Fujian province or as requested.
Professional Packaging for Diesel Generators Secure Shipping Preparation for Power Equipment
