Customized Factory Price Open/Silent Type SDEC Diesel Generator 120KW/150KVA Power Supply Water Cooling

• Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
• 50°C radiator with fan for optimal engine cooling during extended operation
• Advanced control systems including generator set control, ATS system, remote control, and parallel operation
• High-quality steel canopy construction (2MM to 6MM thickness)
• High-density sound-absorbing material for effective sound insulation and fireproofing
• 12V/24V DC battery with charger and connecting wires
• 10-12 hours fuel tank with fuel indicator for continuous operation
• High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
• Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
• Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
• Double open doors on both sides for comprehensive engine and alternator access
• Available in silent, super silent, soundproof, trailer type, and container type configurations
• Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

1.Power range:132KW

2.Alternator options:BOBIG/SDEC

3.Two types:open type and silent type

Engine:

1)Cooling method:closed water cooling

2)Starting method:electric start

3)Rated speed:1500rpm

Alternator

1)Brand:BOBIG

2)Rate output:132KW-145KW/165KVA-182KVA

3)Rate voltage:230V/400V

4)Rate frequency:50hz

5)Power factor:0.8

6)Phase:3-phase,4-wire

7)Connection:Y or other type connection

8)Excitation:harmonic excitation or phase comound or brushless

9)Voltage regulation:automatic/manual

Size

1)Open type:2370*950*1760

2)Silent type:3140*1200*1660

Front View

Side View

Control Panel

Engine Detail

Alternator View

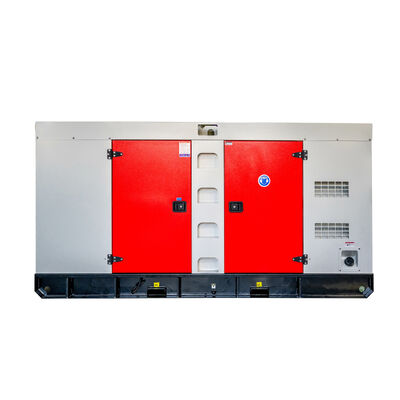

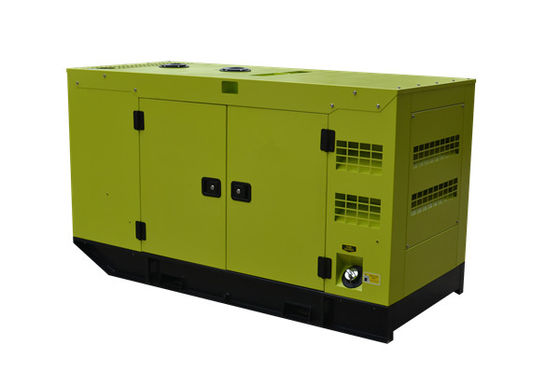

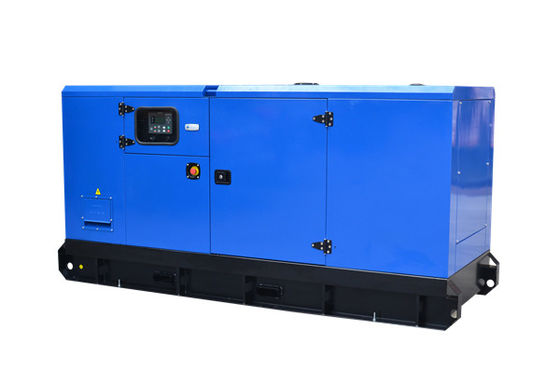

Silent Type Exterior

Internal Components

Cooling System

Fuel System

Electrical Connections

Full Assembly

Quality Inspection
