High-Cost-Effective 720kW SDEC Silent diesel Generator 900KVA Gen Set CE Approved, Directly From Factory Low Fuel Consumption

High-Cost-Effective 720kW SDEC Silent diesel Generator 900KVA Gen Set CE Approved, Directly From Factory Low Fuel Consumption
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 900KVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 720kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 720kW
Engine: Original SDEC
Cooling Method: Water-cooling System
Highlight:

720kW silent diesel generator

,

900KVA diesel gen set

,

low fuel consumption generator
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: 6KTAA25-G320
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description

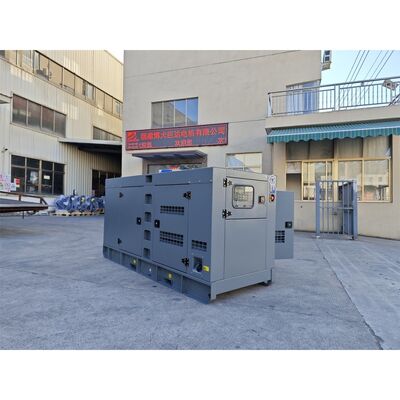

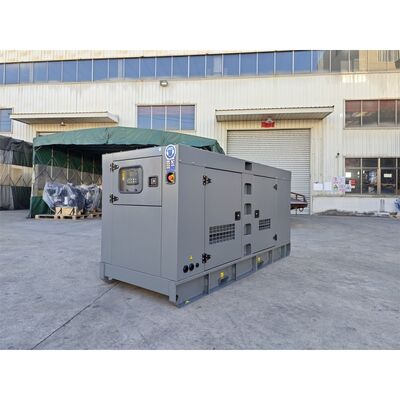

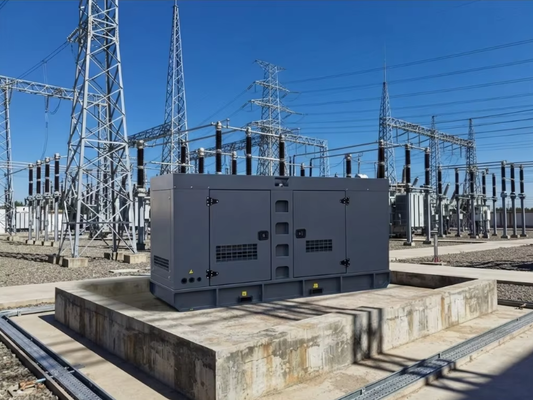

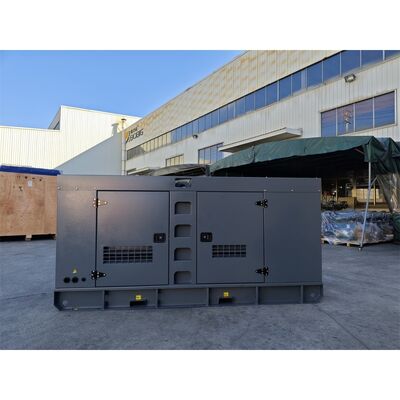

720kW SDEC Silent Diesel Generator - 900KVA Gen Set
High-cost-effective 720kW SDEC silent diesel generator with 900KVA capacity, CE approved, directly from factory with low fuel consumption.
Product Overview
Our 720kW 900KVA BOBIG SDEC diesel generator (Model: 6KTAA25-G320) is designed to provide reliable power for a wide range of applications. Backed by the renowned SDEC brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 720kW (900KVA) for various industrial, commercial, and residential applications
  • Stable and efficient prime power output for continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: 6KTAA25-G320 SDEC engine
  • Advanced technology with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 900 990
Power Rating (kW) 720 792
Frequency (Hz) 50
Engine Model 6KTAA25-G320
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating applicable for emergency power supply during utility power interruptions.
Dimensions and Weight
Model BSD990 (Open Type) BSD990S (Silent Type)
Length (mm) 4360 5600
Width (mm) 1600 2200
Height (mm) 3375 2550
Tank Capacity (L) 1656 1656
Engine Specifications
Engine Model & Manufacturer 6KTAA25-G320 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 170 × 185 mm
Displacement 25.2 lit.
Compression Ratio 14.5 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle Electronic control
Dry Weight 2850 kg
Dimension 2302 × 1544 × 1598mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404D
Alternator Rated Power 720kw/900kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Certifications and Standards
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.
Generator Certification Additional Certifications
Customization Services
We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller (engine, generator, and controller are optional).
Generator Controller
Packaging & Shipping
Plywood case packaging, 10-15 working days after receiving customer deposit.
Warranty and Service
BOBIG products have a one-year or 1000-hour warranty (whichever comes first). Free easy-damageable spare parts provided during warranty period. Cost spare parts maintenance available after expiration.
Why Choose Us
  • Brand Reputation: SDEC is a well-known and trusted brand in the diesel generator industry
  • Quality Assurance: Manufactured in strict accordance with international standards
  • Customization Options: Tailored solutions based on specific requirements
  • Professional Support: 24/7 technical support, maintenance, and repair services
