POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set

POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: Customized
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 100kva , Powered By FAWDE Diesel Generator, Standby Use Power Diesel Generator 80kw
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 100kva
Engine: Original FAWDE
Cooling Method: Water-cooling System
Highlight:

100kva silent diesel generator

,

80kw open type power generator

,

intelligent diesel generator with warranty
Basic Infomation
Place of Origin: China
Brand Name: FAWDE
Certification: CE
Model Number: CA6F2D - 14D
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
80kW 100KVA BOBIG FAWDE Diesel Generator (Model: CA6F2D-14D)

Our 80kW 100KVA BOBIG FAWDE diesel generator (Model: CA6F2D-14D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance: Rated power of 80kW (100KVA) with stable and efficient prime power output
Engine Excellence: Powered by CA6F2D-14D FAWDE engine with high torque, fuel efficiency, and low emissions
Standard Frequency: Operates at 50Hz, suitable for most electrical equipment
Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 100 110
Power Rating (kW) 80 88
Frequency (Hz) 50
Engine Model CA6DF2D-14D-YFD10W
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications Details
Engine Model & Manufacturer CA6DF2D-14D-YFD10W (FAWDE)
Engine Model CA6F2D-14D
No. of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged
Cooling System Water-cooled
Bore 110 mm
Stroke 115 mm
Compression Ratio 17.5:1
Displacement 6.56 L
Dry Engine Weight 700 kg
Dimension (L*W*H) 1310*721*995
Alternator Specifications Details
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274C
Alternator Rated Power 80kw/100kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Dimension and Weight Open Type (BFA110S) Silent Type
Length (L) mm 2200 3000
Width (W) mm 900 1040
Height (H) mm 1500 1420
Tank Capacity (L) 184 184
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues.

Quality Standards

Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.

Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (customized solutions available for different conditions)

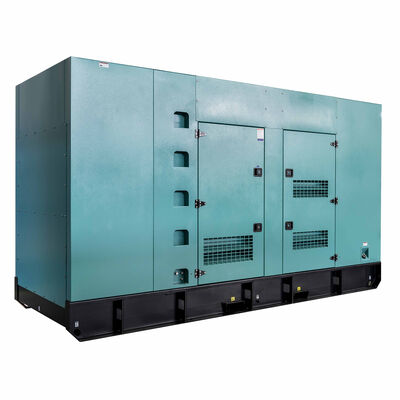

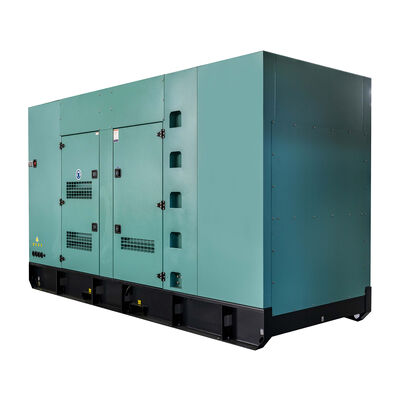

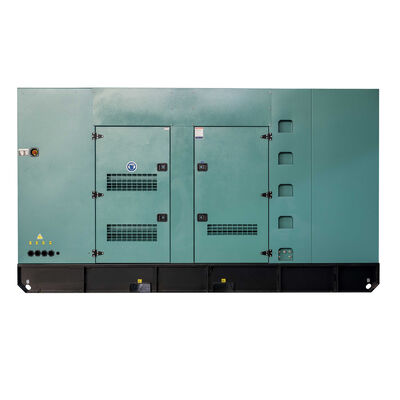

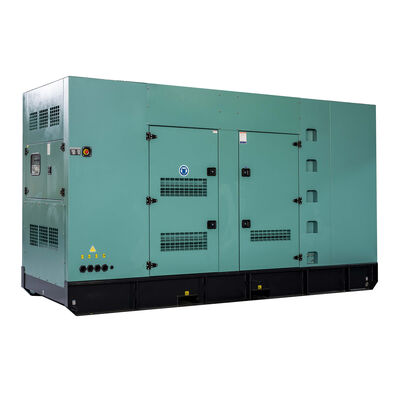

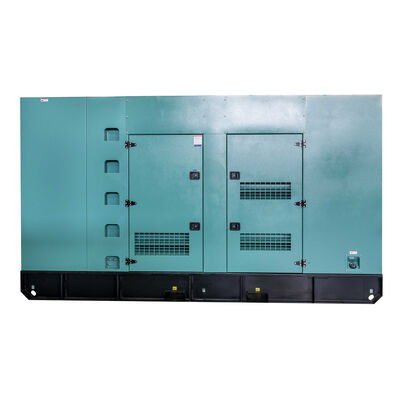

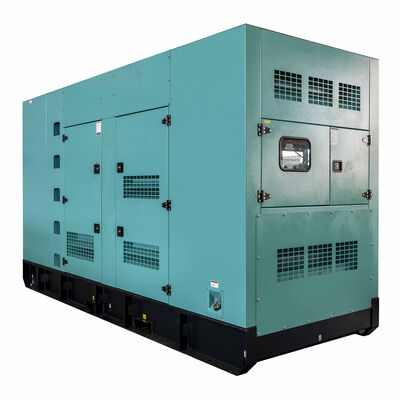

Product Image
POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set 0
Packaging & Shipping

Plywood case, 10-15 working days after receiving customer deposit.

Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as customer request.

Do you provide spare parts?

Yes, we provide regular engine filters for self-maintenance and can supply parts anytime within 3-5 days.

Can you customize voltage, frequency, and other specifications?

Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
