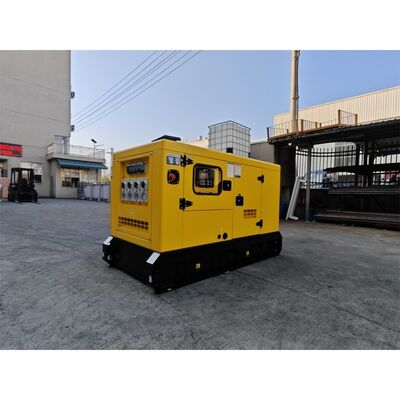

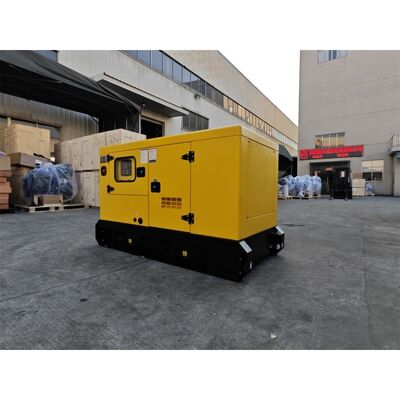

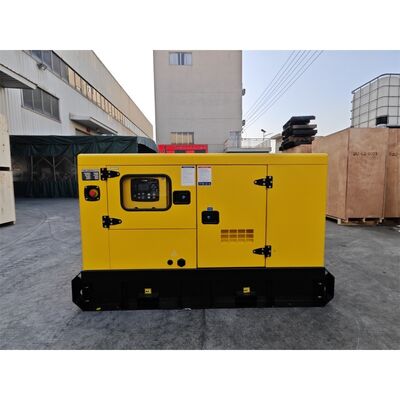

Customizable POWER 100kW Open Silent Diesel Generator 50/60Hz 125KVA Soundproof 100kW Home Use Standby Diesel Generator

Customizable POWER 100kW Open Silent Diesel Generator 50/60Hz 125KVA  Soundproof 100kW Home Use Standby Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 100kW , Powered By FAWDE Diesel Generator, Standby Use Power Diesel Generator 125KVA
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 100kW
Engine: Original FAWDE
Cooling Method: Water-cooling System
Highlight:

100kW silent diesel generator

,

soundproof home standby generator

,

customizable 125KVA diesel generator

Basic Infomation
Place of Origin: China
Brand Name: FAWDE
Certification: CE
Model Number: CA6DF2 - 17D
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
Customizable POWER 100kW Open Silent Diesel Generator 50/60Hz 125KVA Soundproof 100kW Home Use Standby Diesel Generator
Product Overview

Our 100kW 125KVA BOBIG FAWDE diesel generator (Model: CA6DF2-17D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 100kW (125KVA) for various industrial, commercial, and residential applications
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: CA6DF2-17D FAWDE engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 125 138
Power Rating (kW) 100 110
Frequency (Hz) 50
Engine Model CA6DF2-17D-YFD10W
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel or negotiated outage operation capability available.

Engine Specifications Details
Engine Model & Manufacturer CA6DF2-17D-YFD10W (FAWDE)
No. of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged
Cooling System Water-cooled
Bore 110 mm
Stroke 125 mm
Compression Ratio 17.5:1
Displacement 7.13 L
Dry Engine Weight 700 kg
Dimension (L*W*H) 1305*934*920 mm
Alternator Specifications Details
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274D
Alternator Rated Power 100kW/125kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Dimension and Weight Open Type (BFA138) Silent Type (BFA138S)
Length (L) mm 2350 3100
Width (W) mm 950 1040
Height (H) mm 1580 1420
Tank Capacity (L) 230 230
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from the ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we continue to provide cost-effective spare parts maintenance with 24/7 technical support.

Why Choose Us
  • Brand Reputation: Trusted brand with long history of producing high-quality products
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific requirements including voltage, frequency, tank capacity, phase, and color
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, Trade Assurance, PayPal, Western Union. Delivery: 10-15 working days after receiving deposit.
Which port do you use for export?
Fuzhou port, Fujian province or as per customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance and can supply parts anytime, typically shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase and color?
Yes, all specifications can be customized according to your needs.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign distribution agreements accordingly.
