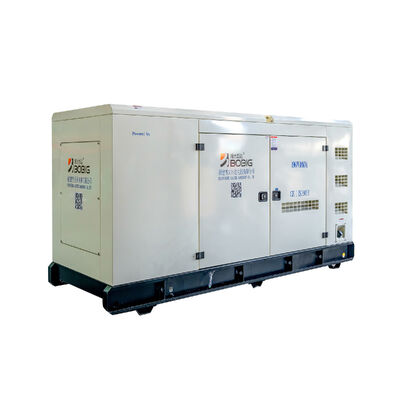

POWER Intelligent diesel Generator 200kW Open Type Silent diesel Electric Power Make Generator 250KVA FACTORY PRICE

POWER Intelligent diesel Generator 200kW Open Type Silent diesel Electric Power Make Generator 250KVA FACTORY PRICE
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 200kW , Powered By FAWDE Diesel Generator, Standby Use Power Diesel Generator 250KVA
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 200kW
Engine: Original FAWDE
Cooling Method: Water-cooling System
Highlight:

200kW silent diesel generator

,

250KVA open type power generator

,

FAWDE diesel generator with warranty
Basic Infomation
Place of Origin: China
Brand Name: FAWDE
Certification: CE
Model Number: CA6DL2 - 30D
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

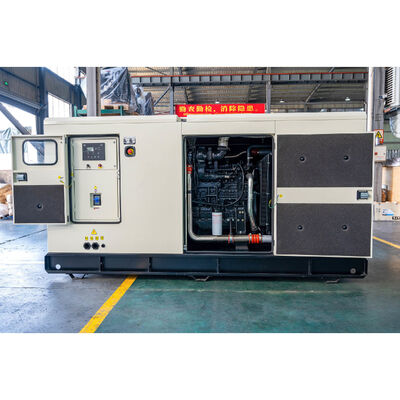

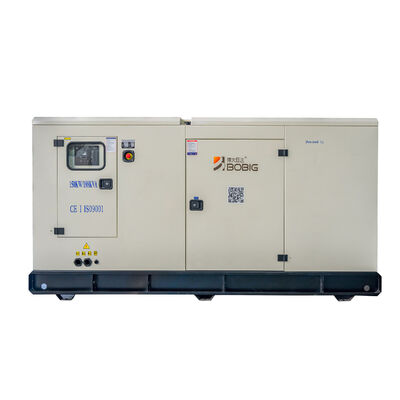

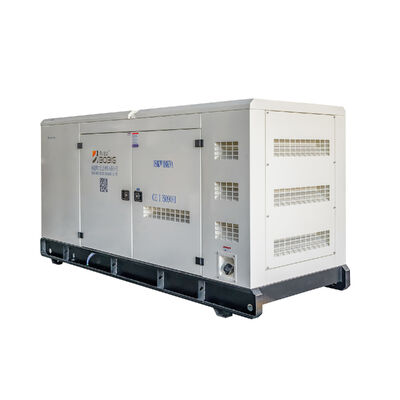

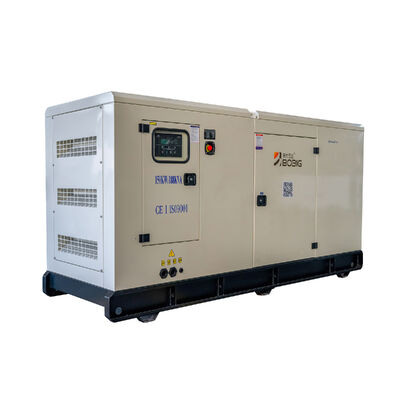

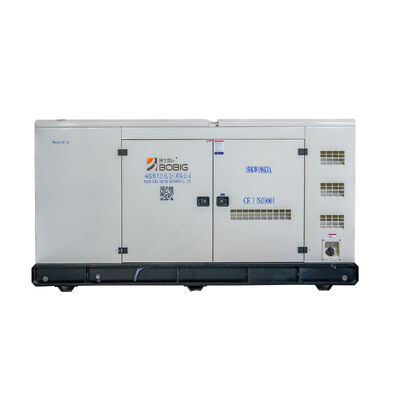

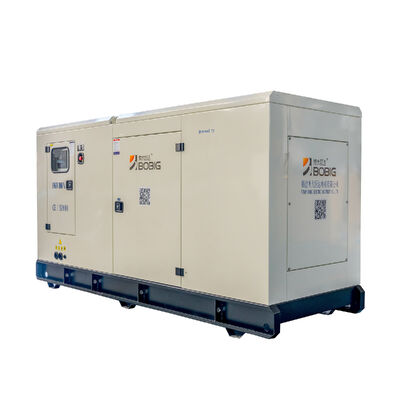

200kW 250KVA BOBIG FAWDE Diesel Generator (Model: CA6DL2-30D)
Product Overview

Our 200kW 250KVA BOBIG FAWDE diesel generator (Model: CA6DL2-30D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 200kW (250KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: CA6DL2-30D FAWDE engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model CA6DL2-30D
Engine Speed (RPM) 1500
Phase 3
PF 0.8

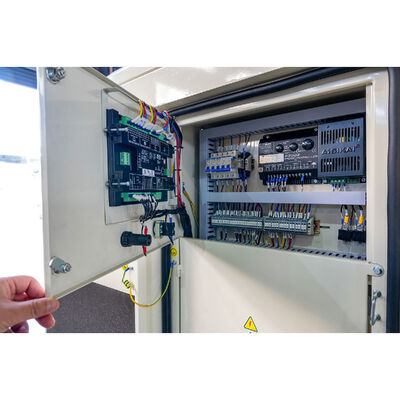

Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

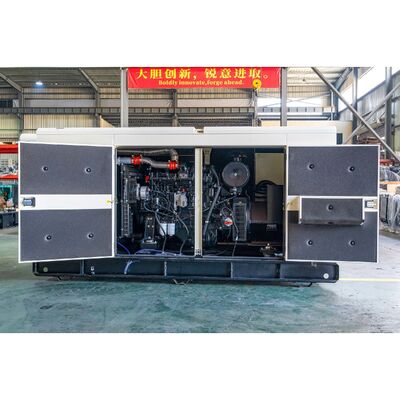

Engine Specifications
Parameter Specification
Engine Model & Manufacturer CA6DL2-30D (FAWDE)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged & Intercooled
Cooling System Water-cooled
Bore 112 mm
Stroke 145 mm
Compression Ratio 17.5:1
Displacement 8.57 L
Dry Engine Weight 830 kg
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Alternator Rated Power 200kW/250kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Altitude ≤1000m
Insulation Class H class
Dimensions and Weight
Model Type Open Type (BFA275) Silent Type (BFA275S)
Length (mm) 2600 3700
Width (mm) 1100 1220
Height (mm) 1850 1950
Tank Capacity (L) 460 460
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Compliance Standards

Our generator complies with multiple international and national standards, including:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.

Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.

Packaging & Shipping

Plywood case packaging with delivery within 10-15 working days after receiving customer deposit.

Frequently Asked Questions

Q: What is your MOQ, payment method, and delivery time?

A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Q: Which port do you use for export?

A: Fuzhou port, Fujian province or as customer request.

Q: Can you provide spare parts for maintenance?

A: Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance.
