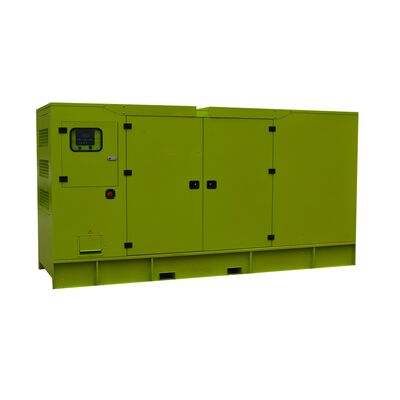

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling

1set
MOQ
3992-6102USD
Price
Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling
Features Gallery Product Description Request A Quote
Features
Specifications
Speed: 1500RPM
Frequency: 50/60HZ
Rated Power: 5KW To 2000KW
Output Type: AC Three Phase
Type: Open Or Silent(super Silent)
Color: At Your Requirement,Customized
Highlight:

SDEC diesel generator 800KW water cooling

,

silent type SDEC diesel generator 1000KVA

,

customized SDEC diesel generator with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: SDEC
Model Number: 6KTAA25-G321
Payment & Shipping Terms
Packaging Details: plywood
Delivery Time: 20work days
Payment Terms: L/C, T/T
Supply Ability: 50sets per month
Product Description
Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling
High quality water cooling SDEC diesel generator available in both open and silent configurations to meet diverse operational requirements.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)10001100
Power Rating (kW)800880
Frequency (Hz)50
Engine Model6KTAA25-G321
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Power Definitions
PRP (Prime Power): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Emergency Standby Power): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Dimension and WeightOpen TypeSilent Type
ModelBSD1100BSD1100S
Length (L) mm44505800
Width (W) mm18002200
Height (H) mm33752550
Tank Capacity (L)18401840
Engine Specifications
SpecificationDetails
Engine Model & Manufacturer6KTAA25-G321 (SDEC)
Engine TypeIn-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion TypeDirect injection
Cylinder TypeWet cylinder liner
Number of Cylinders6
Bore × Stroke170 × 185mm
Displacement25.2 lit.
Compression Ratio14.5 : 1
Firing Order1-5-3-6-2-4
Fuel Injection Advance AngleElectronic control
Dry Weight2850 kg
Dimension2302 × 1544 × 1598mm
RotationCCW viewed from flywheel
Fly Wheel HousingSAE 0#
Fly WheelSAE 18# (number of teeth: 143)
Injection PumpHPCR
GovernorElectric type
Feed PumpElectric type
Injection NozzleMulti hole type
Alternator Specifications
SpecificationDetails
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-404E
Alternator Rated Power800kw/1000kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%
Product Images

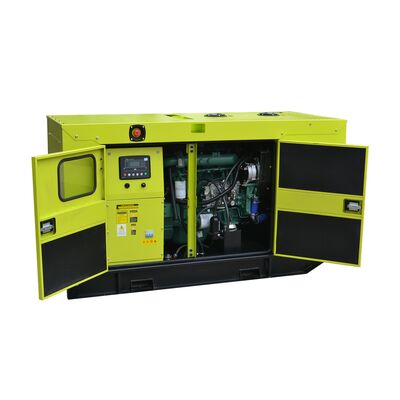

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 0
Front View

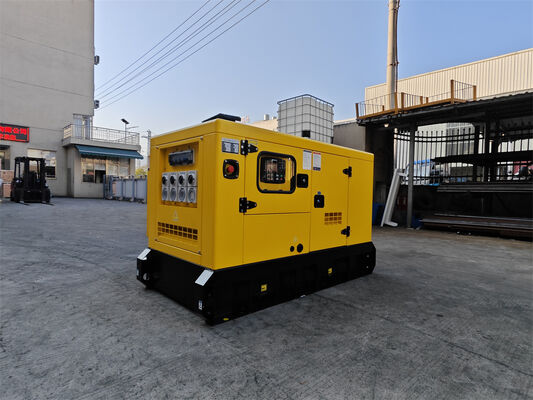

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 1
Side View

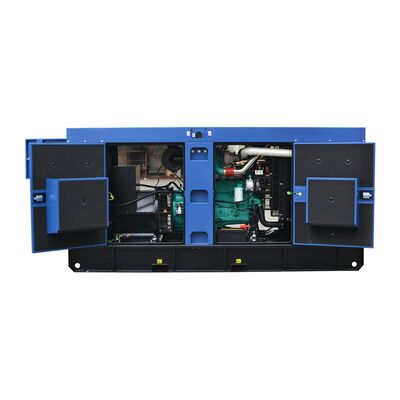

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 2
Control Panel

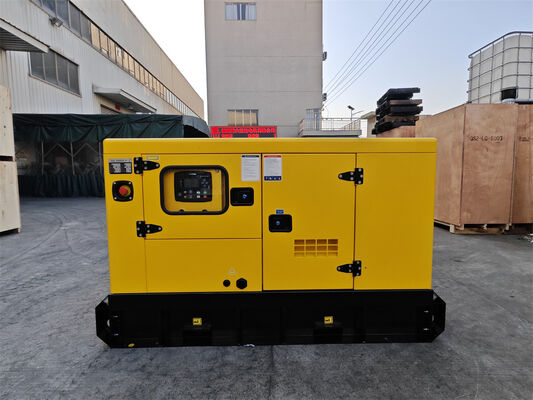

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 3
Engine Detail

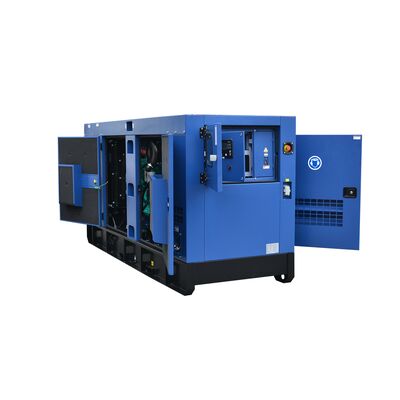

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 4
Alternator View

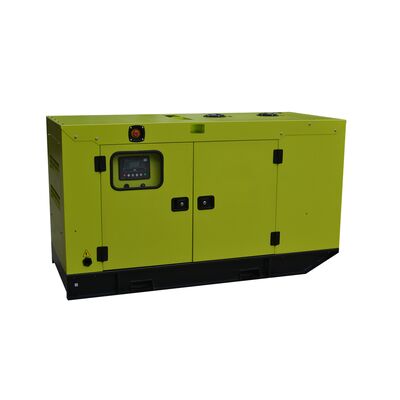

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 5
Silent Type Exterior

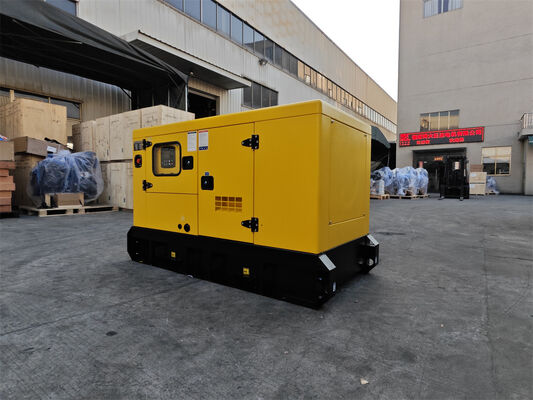

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 6
Internal Components

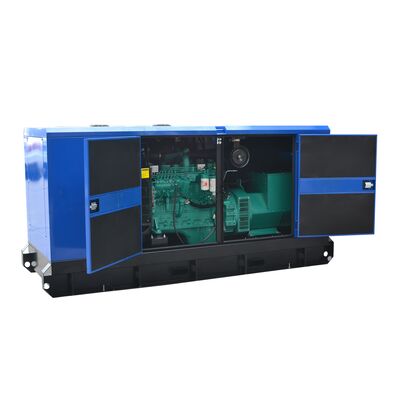

Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 7
Cooling System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 8
Fuel System
Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 9
Electrical Connections
Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 10
Full Assembly
Customized Factory Price Open/Silent Type SDEC Diesel Generator 800KW/1000KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
