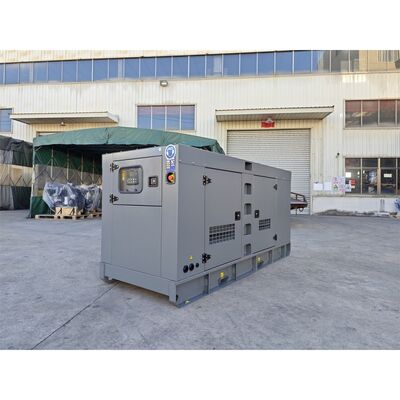

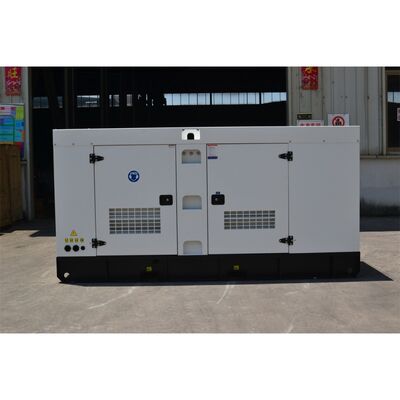

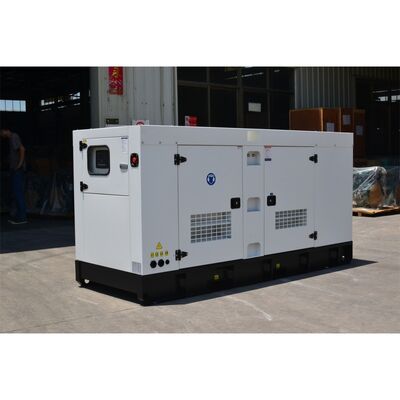

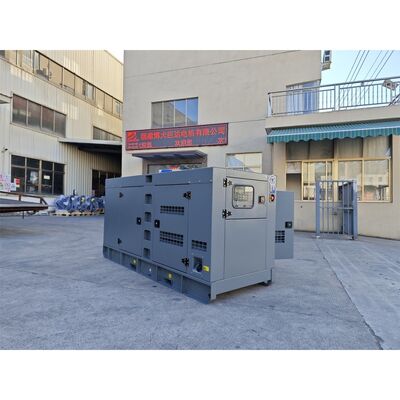

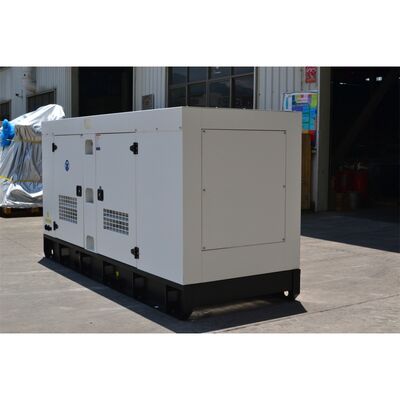

Fast Delivery Portable Diesel Generator 375kva Single & Three Phase Silent 300kw Rated Power Super Silent Diesel Generator Set

Fast Delivery Portable Diesel Generator 375kva Single & Three Phase Silent 300kw Rated Power Super Silent Diesel Generator Set
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: Customized
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 300kw , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 375kva
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 300kw
Engine: Original SDEC
Cooling Method: Water-cooling System
Highlight:

375kva silent diesel generator

,

300kw portable diesel generator

,

three phase diesel generator set
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: SC12E480D2
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
Fast Delivery Portable Diesel Generator 375kva Single & Three Phase Silent 300kw Rated Power Super Silent Diesel Generator Set
Product Overview

Our 300kW 375KVA BOBIG SDEC diesel generator (Model: SC12E480D2) is designed to provide reliable power for a wide range of applications. Backed by the SDEC brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: 300kW (375KVA) with stable and efficient prime power output. Frequency: 50Hz standard operation suitable for most electrical equipment.

Engine Excellence

Engine Model: SC12E480D2 SDEC engine with advanced technology, high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth and consistent power supply.

Technical Specifications
Dimensions and Weight
Model BSD413 BSD413S
Type Open type Silent type
Length (L) mm 3100 4200
Width (W) mm 1160 1300
Height (H) mm 2150 1950
Tank capacity (L) 690 690
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 375 413
Power Rating (kW) 300 330
Frequency (Hz) 50
Engine Model SC12E480D2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Parameter Specification
Engine Model & Manufacturer SC12E480D2 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 128 × 153mm
Displacement 11.8 lit.
Compression Ratio 17 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle 14°BTDC
Dry Weight 1164 kg
Dimension 1787×918×1287mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 1#
Fly Wheel SAE 14# (number of teeth: 133)
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314F
Alternator Rated Power 300kw/375kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.

Why Choose Us
  • Brand Reputation: Trusted brand with long history of high-quality products
  • Quality Assurance: Manufactured according to international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific requirements
Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after receiving deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as customer request.

Do you provide spare parts?

Yes, we provide regular engine filters for self-maintenance and can supply parts anytime within 3-5 days.

Can specifications be customized?

Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
