Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling

1set
MOQ
3242-5299USD
Price
Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling
Features Gallery Product Description Request A Quote
Features
Specifications
Speed: 1500RPM
Frequency: 50/60HZ
Rated Power: 5KW To 2000KW
Output Type: AC Three Phase
Type: Open Or Silent(super Silent)
Color: At Your Requirement,Customized
Highlight:

SDEC diesel generator 360KW water cooling

,

silent type SDEC diesel generator 450KVA

,

open type diesel generator power supply
Basic Infomation
Place of Origin: CHINA
Brand Name: SDEC
Model Number: SC25G610D2
Payment & Shipping Terms
Packaging Details: plywood
Delivery Time: 20work days
Payment Terms: L/C, T/T
Supply Ability: 50sets per month
Product Description
Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling
Customized Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling. High quality water cooling SDEC diesel generator available in both open and silent configurations to meet diverse operational requirements.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 450 495
Power Rating (kW) 360 396
Frequency (Hz) 50
Engine Model SC25G610D2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power)
Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Emergency Standby Power)
The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BSD495 (Open Type) BSD495S (Silent Type)
Length (L) mm 3440 4500
Width (W) mm 1350 1810
Height (H) mm 2460 2360
Tank Capacity (L) 828 828
Note: Specifications and illustrations are subject to revision without notice.
Engine Specifications
Engine Model & Manufacturer SC25G610D2 (SDEC)
Engine Type V-type, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 12
Bore × Stroke 135 × 150 mm
Displacement 25.8 lit.
Compression Ratio 16 : 1
Firing Order 1-12-5-8-3-10-6-7-2-11-4-9
Fuel Injection Advance Angle 13.5°BTDC
Dry Weight 2080 kg
Dimension 1930×1686×1872mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 1/2#
Fly Wheel SAE 14# (number of teeth: 137)
Injection Pump YiJie Inline Type P Pump
Governor Electric type
Feed Pump Mechanical type
Injection Nozzle Multi hole type
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354C
Alternator Rated Power 360kw/450kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Product Images

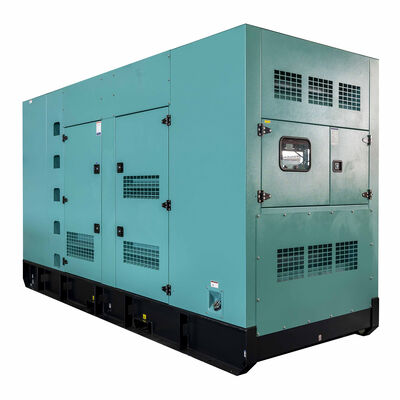

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 0
Front View

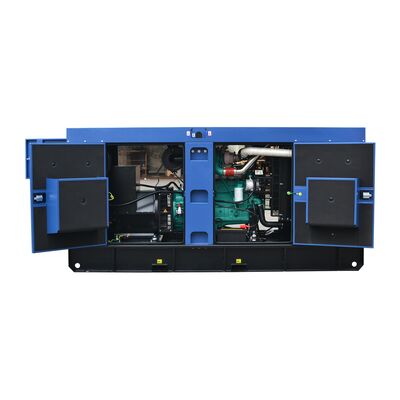

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 1
Side View

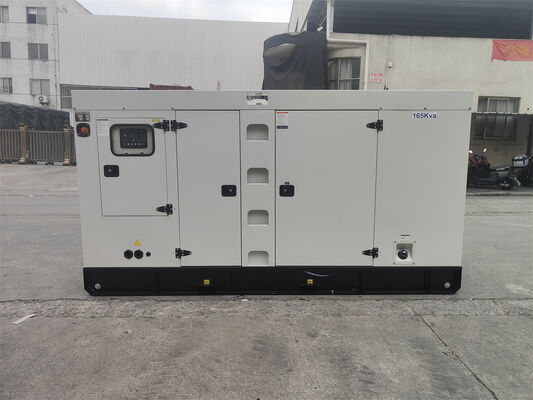

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 2
Control Panel

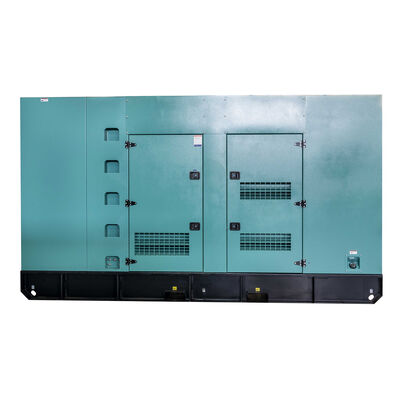

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 3
Engine Detail

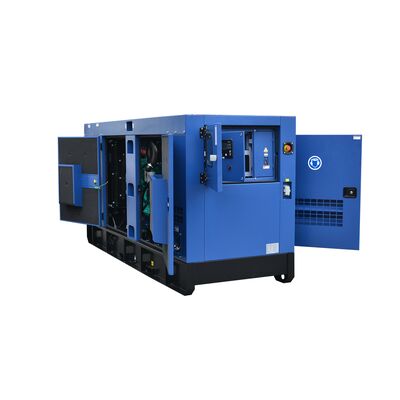

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 4
Alternator View

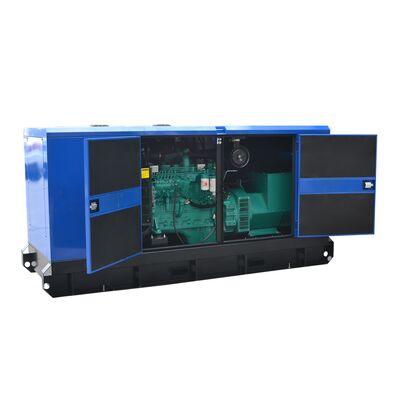

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 5

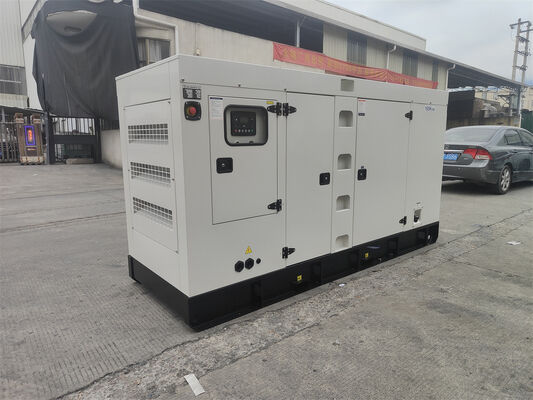

Silent Type Exterior

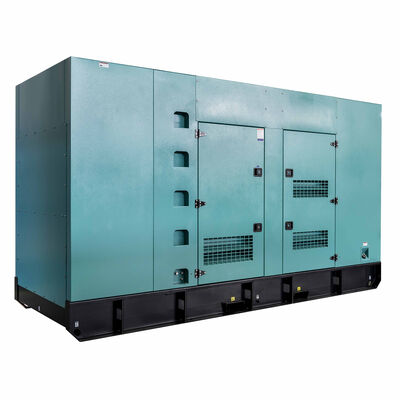

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 6
Internal Components

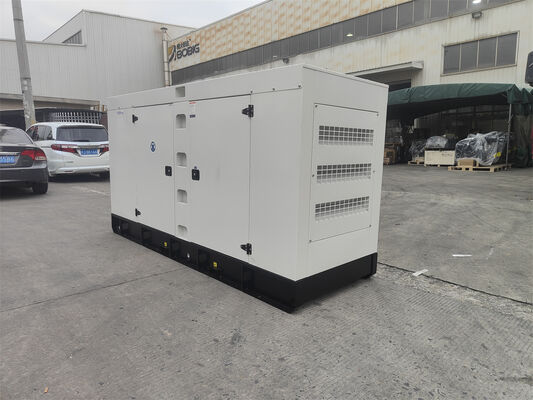

Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 7
Cooling System
Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 8
Fuel System
Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 9
Electrical Connections
Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 10
Full Assembly
Factory Price Open/Silent Type SDEC Diesel Generator 360KW/450KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
