Name: Customized Factory Price Open/Silent Type SDEC Diesel Generator 150KW/188KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: SC7H220D2
Price: 2,549.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Speed: 1500RPM

Frequency: 50/60HZ

Rated Power: 5KW To 2000KW

Output Type: AC Three Phase

Type: Open Or Silent(super Silent)

Color: At Your Requirement,Customized

Highlight:

SDEC diesel generator 150KW water cooling

silent type SDEC diesel generator 188KVA

customized factory price diesel generator

Basic Infomation

Place of Origin: CHINA

Brand Name: SDEC

Model Number: SC7H220D2

Payment & Shipping Terms

Packaging Details: plywood

Delivery Time: 10work days

Payment Terms: L/C, T/T

Supply Ability: 50sets per month

Gallery

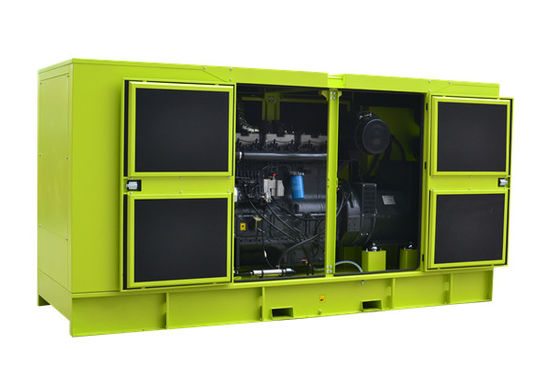

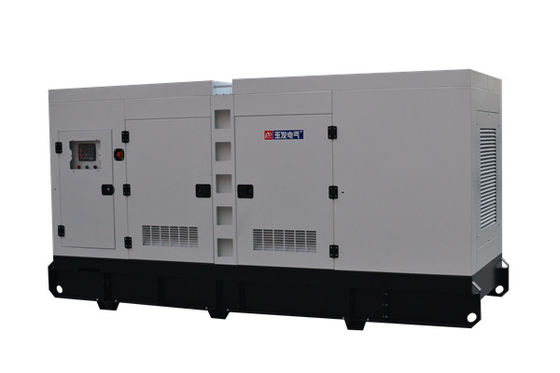

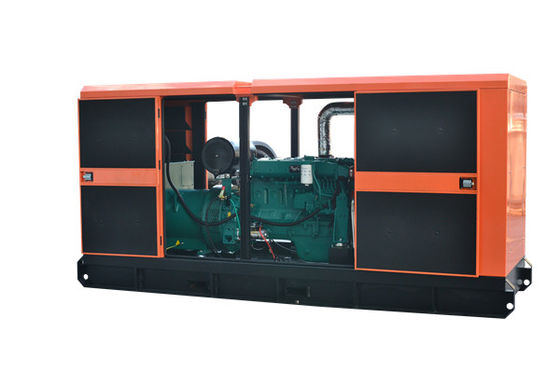

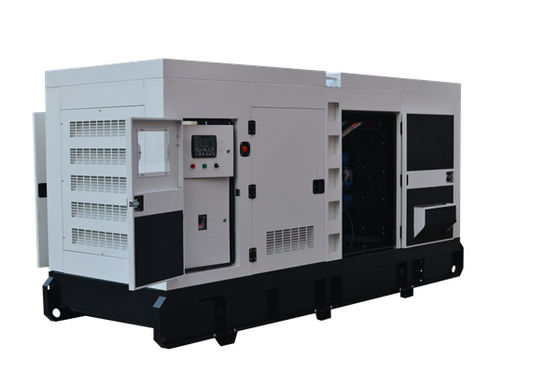

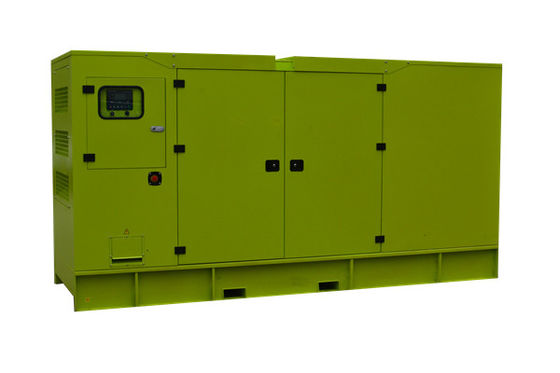

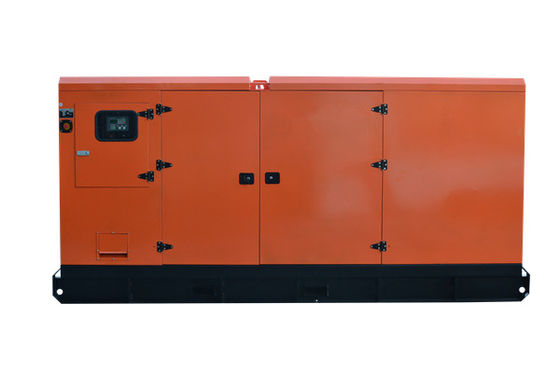

Customized Factory Price Open/Silent Type SDEC Diesel Generator 150KW/188KVA Power Supply Water Cooling

Product Description

Customized Factory Price Open/Silent Type SDEC Diesel Generator 150KW/188KVA Power Supply Water Cooling

High Quality Open/Silent Type SDEC Diesel Generator providing reliable 150KW/188KVA backup power supply with water cooling system. Available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	188	206
Power Rating (kW)	150	165
Frequency (Hz)	50
Engine Model	6HTAA6.5-G23
Engine Speed (RPM)	1500
Phase	3
Power Factor	0.8
Control System	Digital
Rated Voltage (V)	400/230
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BSD206
Type	Open Type	Silent Type
Length (L) mm	2500	3150
Width (W) mm	800	1120
Height (H) mm	1760	1700
Tank Capacity (L)	345	345

Engine Specifications

Engine Model & Manufacturer	6HTAA6.5-G23 (SDEC)
Engine Type	In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type	Direct injection
Cylinder Type	Dry liner
Number of Cylinders	6
Bore × Stroke	105 × 124 mm
Displacement	6.5 lit.
Compression Ratio	16 : 1
Firing Order	1-5-3-6-2-4
Fuel Injection Advance Angle	Electronic control
Dry Weight	600 kg
Dimension	1343×741×1267 mm

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274G
Alternator Rated Power	150kw/188kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
