Name: Customized Factory Price Open/Silent Type SDEC Diesel Generator 90KW/113KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: SC4H160D2
Price: 2,049.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Speed: 1500RPM

Frequency: 50/60HZ

Rated Power: 5KW To 2000KW

Output Type: AC Three Phase

Type: Open Or Silent(super Silent)

Color: At Your Requirement,Customized

Highlight:

90KW SDEC diesel generator

water cooling diesel generator

silent type SDEC generator

Basic Infomation

Place of Origin: CHINA

Brand Name: SDEC

Model Number: SC4H160D2

Payment & Shipping Terms

Packaging Details: plywood

Delivery Time: 10work days

Payment Terms: L/C, T/T

Supply Ability: 50sets per month

Gallery

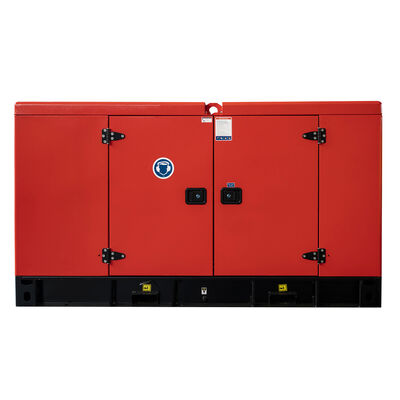

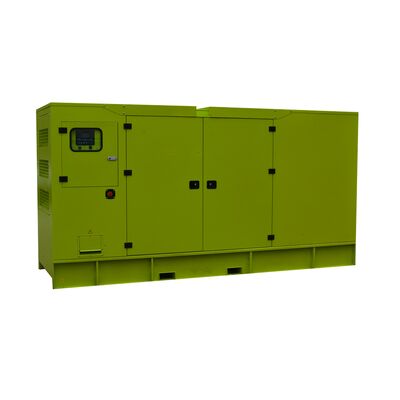

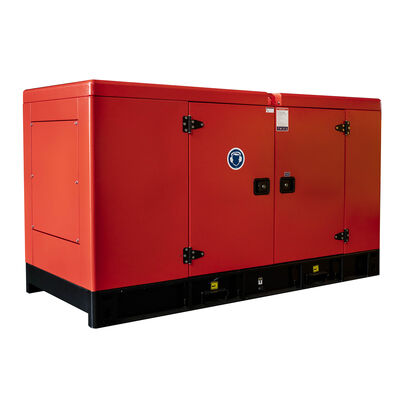

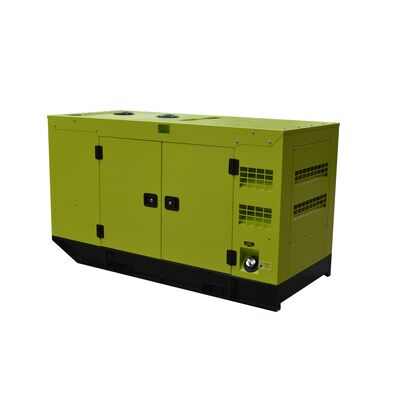

Customized Factory Price Open/Silent Type SDEC Diesel Generator 90KW/113KVA Power Supply Water Cooling

Product Description

Customized Factory Price Open/Silent Type SDEC Diesel Generator 90KW/113KVA Power Supply Water Cooling

High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling

Product Features

Equipped with famous Brushless alternator - Leroy Somer, Marathon, BOBIG, Mecc alte
Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

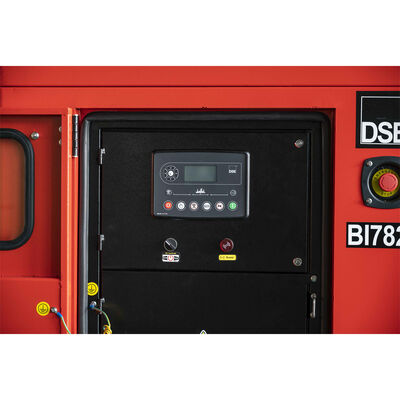

Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system
Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
Equipped with high density sound-absorbing material -- sound insulation, fireproofing
Generator equipped with 12V/24V DC battery with charger, battery connects wire
Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working

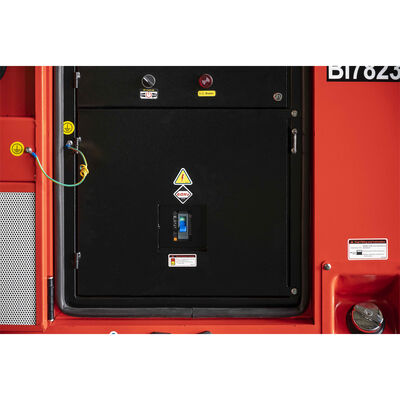

High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency
Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator
All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type
Our generator set compliance with all main standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4 standard

Key Specifications

Power range: 90KW
Alternator options: BOBIG/SDEC
Two types: open type and silent type

Engine Specifications

Cooling method: closed water cooling
Starting method: electric start
Rated speed: 1500rpm

Alternator Specifications

Brand: BOBIG
Rate output: 90KW-99KW/113KVA-124KVA
Rate voltage: 230V/400V
Rate frequency: 50hz
Power factor: 0.8
Phase: 3-phase, 4-wire
Connection: Y or other type connection
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: automatic/manual

Dimensions

Open type: 2200*800*1580
Silent type: 2750*1100*1430

Technical Specifications

General information	Prime power	Standby power
Rated Power (kVA)	113	124
Power Rating (kW)	90	99
Frequency (Hz)	50
Engine Model	SC4H160D2
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated voltage (V)	400/230 (According to customer requirements)
Fuel tank capacity operating time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimension and Weight

Model	BSD124
Type	Open type	Silent type
Length (L) mm	2000	2750
Width (W) mm	850	1100
Height (H) mm	1580	1430
Tank capacity (L)	207	207

Note: Specifications and illustrations are subject to revision without notice.

Detailed Engine Specifications

Engine model & manufacturer	SC4H160D2(SDEC)
Engine Model	SC4H160D2
Engine Type	In-line, 4 strokes, water-cooled; 4 valves, Turbo charged
Combustion type	Direct injection
Cylinder Type	Dry liner
Number of cylinders	4
Bore × stroke	105 × 124 mm
Displacement	4.3 lit.
Compression ratio	16 : 1
Firing order	1-3-4-2
Fuel injection advance angle	11 °BTDC
Dry weight	460 kg
Dimension	1080 ×738×1078mm
Rotation	CCW viewed from flywheel
Fly wheel housing	SAE 3#
Fly wheel	SAE 11.5#(number of teeth: 127)
Injection pump	Beiyou in-line "AD" type
Governor	Electric type/RSV
Feed pump	Mechanical type
Injection nozzle	Multi hole type

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274D
Alternator Rated Power	90kw/113kva
Rated voltage (V)	230v/400v
Rated frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%
