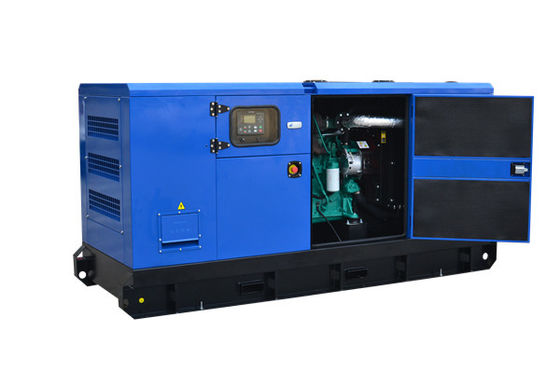

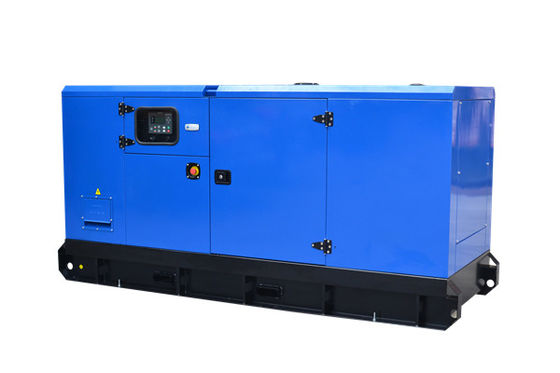

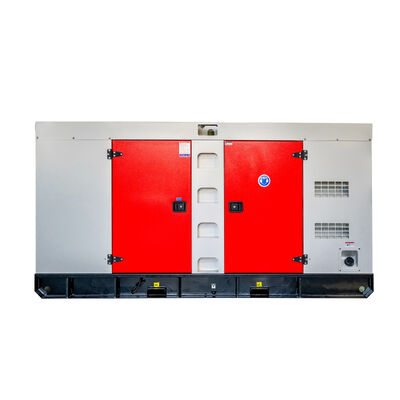

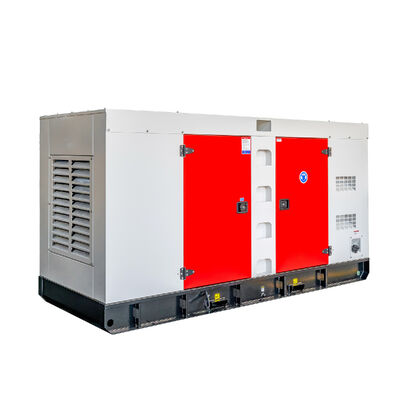

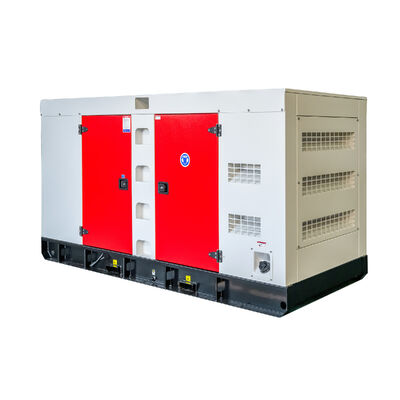

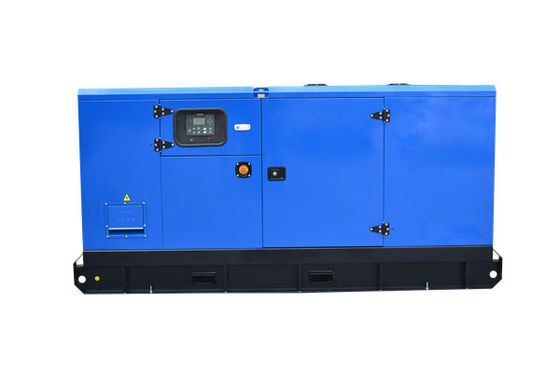

Name: High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: SC4H140D2
Price: 2,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Speed: 1500RPM

Frequency: 50/60HZ

Rated Power: 5KW To 2000KW

Output Type: AC Three Phase

Type: Open Or Silent(super Silent)

Color: At Your Requirement,Customized

Highlight:

SDEC diesel generator 90KW backup power

silent type SDEC diesel generator

water cooling diesel generator 113KVA

Basic Infomation

Place of Origin: CHINA

Brand Name: SDEC

Model Number: SC4H140D2

Payment & Shipping Terms

Packaging Details: plywood

Delivery Time: 10work days

Payment Terms: L/C, T/T

Supply Ability: 50sets per month

Gallery

High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling

Product Description

High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling

Product Features

Equipped with famous Brushless alternator - Leroy Somer, Marathon, BOBIG, Mecc alte
Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system
Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
Equipped with high density sound-absorbing material -- sound insulation, fireproofing
Generator equipped with 12V/24V DC battery with charger, battery connects wire
Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working
High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency
Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator
All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type
Our generator set compliance with all main standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4 standard

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	113	124
Power Rating (kW)	90	99
Frequency (Hz)	50
Engine Model	4HTAA4.3-G23
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated voltage (V)	400/230
Fuel tank capacity operating time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimension and Weight

Model	Open Type (BSD124)	Silent Type (BSD124S)
Length (mm)	2200	2650
Width (mm)	800	1040
Height (mm)	1500	1400
Tank capacity (L)	207	207

Note: Specifications and illustrations are subject to revision without notice.

Engine Specifications

Engine Model & Manufacturer	4HTAA4.3-G23 (SDEC)
Engine Type	In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion type	Direct injection
Cylinder Type	Dry liner
Number of cylinders	4
Bore × stroke	105 × 124 mm
Displacement	4.3 lit.
Compression ratio	16 : 1
Firing order	1-3-4-2
Fuel injection advance angle	10°BTDC
Dry weight	450 kg
Dimension	1080 × 738 × 1078 mm
Rotation	CCW viewed from flywheel

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274D
Alternator Rated Power	90kw/113kva
Rated voltage (V)	230v/400v
Rated frequency	50hz
Connecting Type	3 Phase and 4 W
Protection Grade	IP23
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
