Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA

1
MOQ
USD 300-800
Price
Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

SDEC diesel generator 160kW

,

Farm irrigation diesel generator 200kVA

,

SDEC 6DTAA8.9-G21 generator
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Model Number: 6DTAA8.9-G21
Payment & Shipping Terms
Packaging Details: 315*112*170cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description

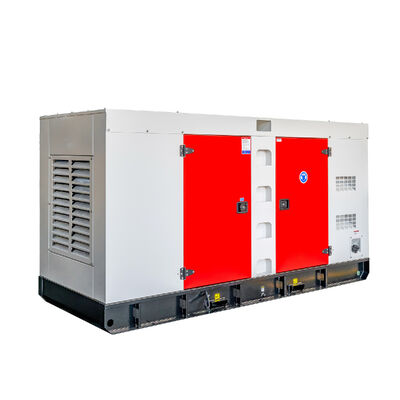

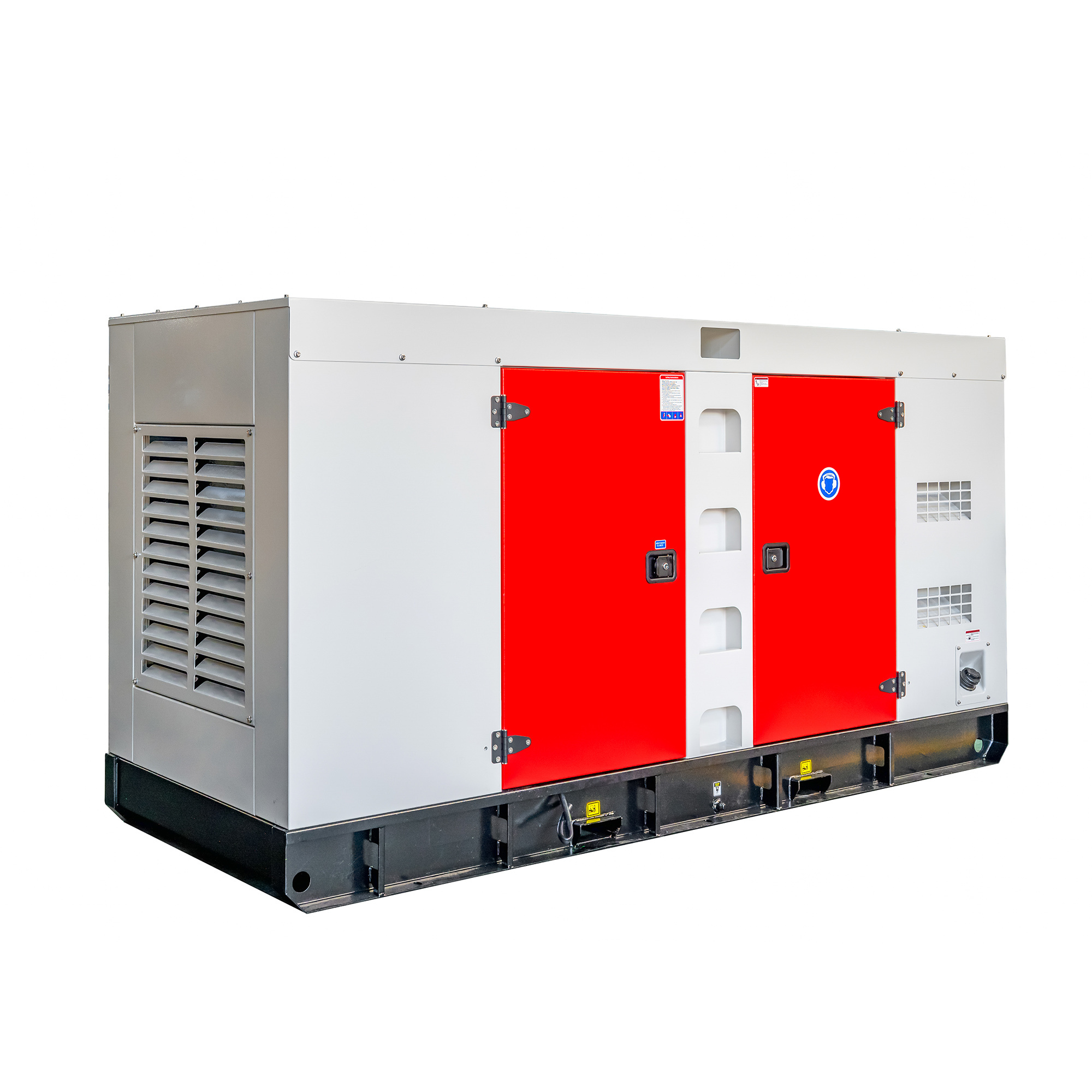

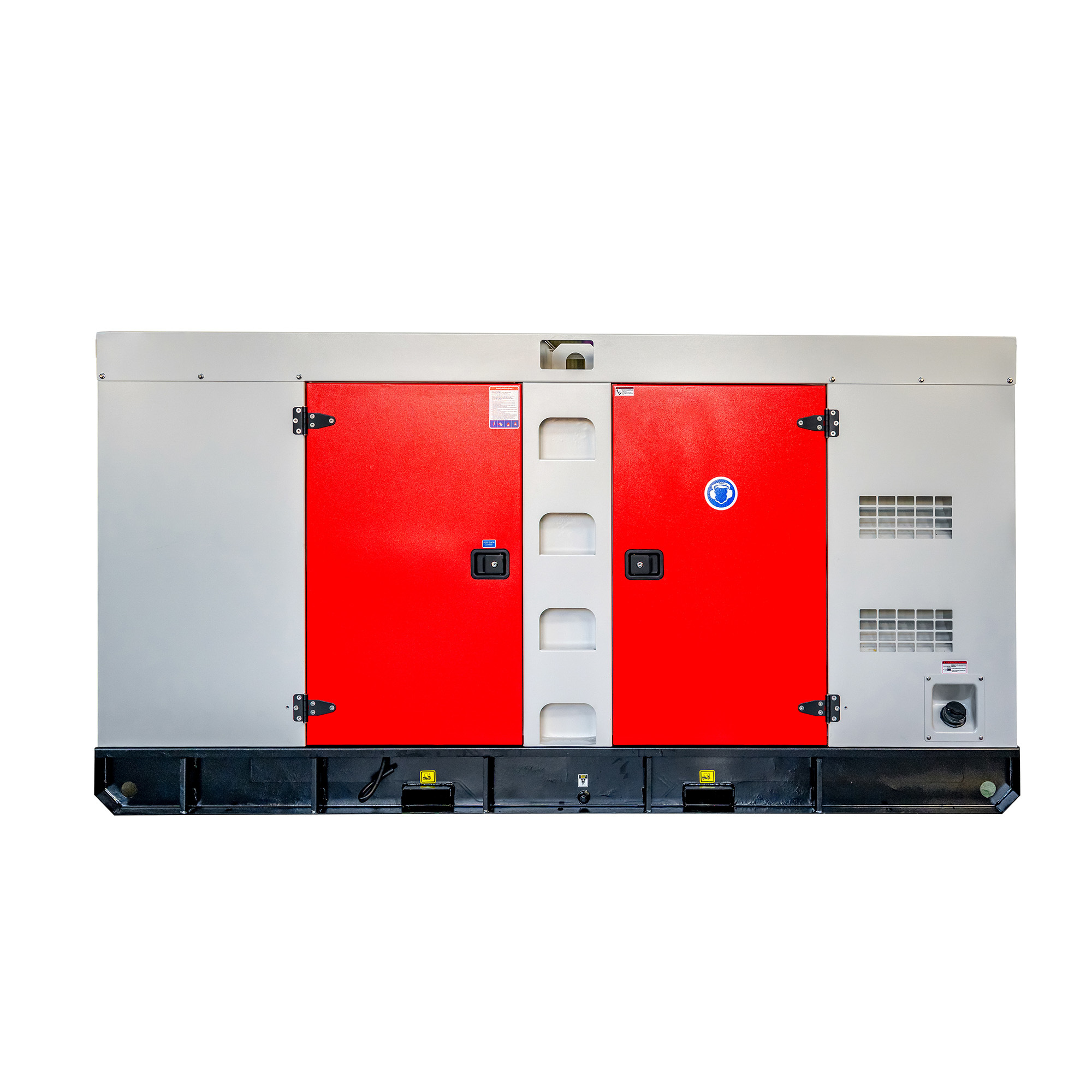

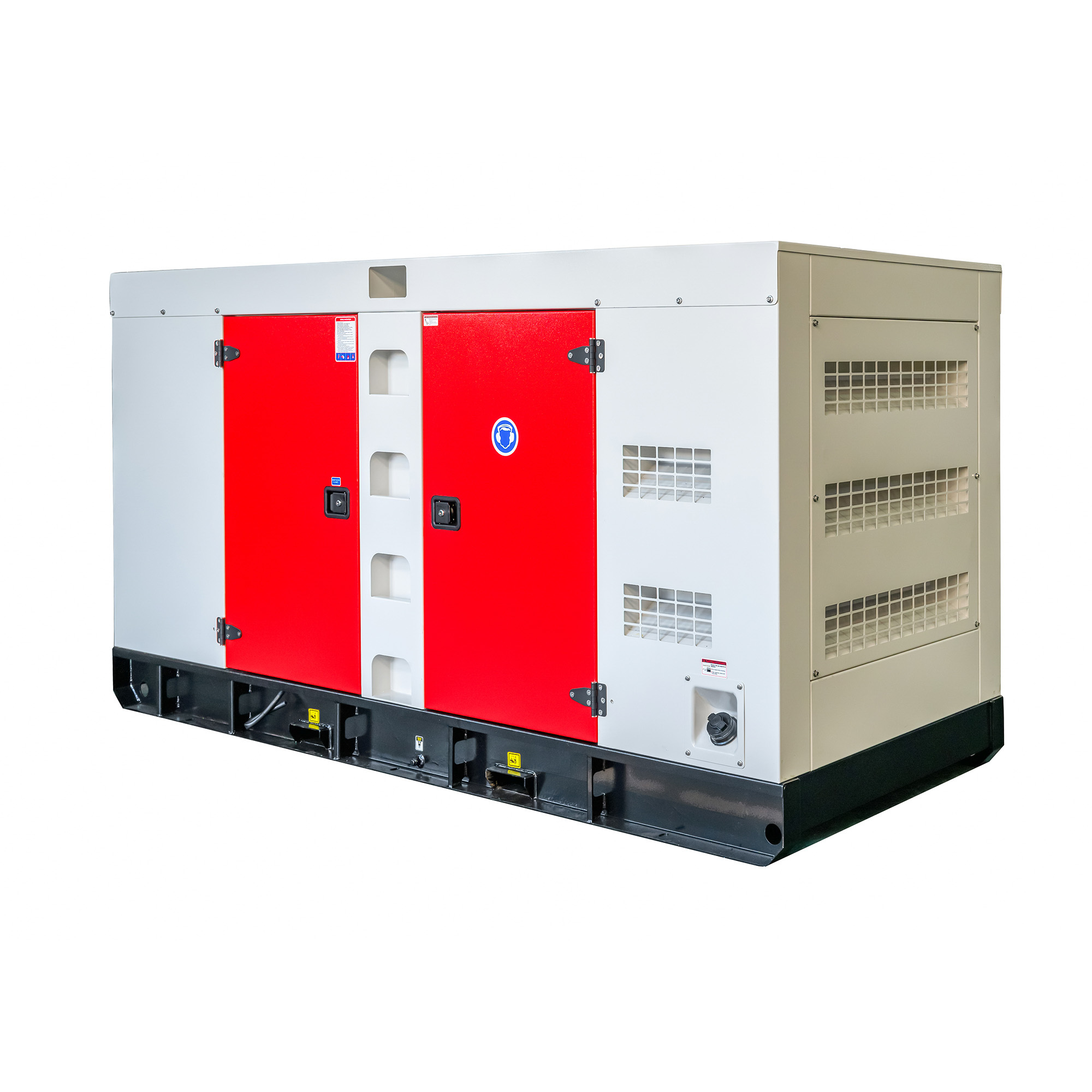

Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA

SDEC diesel generator set
Our SDEC 6DTAA8.9-G21 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 160kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA 0Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA 1
General Specifications
General informationPrime powerStandby power
Rated Power (kVA)200220
Power Rating (kW)160176
Frequency (Hz)50
Engine Model6DTAA8.9-G21
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated voltage (V)400/230
Fuel tank capacity operating time≥ 8h @ 75% load
Power Rating Notes:

PRP Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
ModelBSD220BSD220S
TypeOpen typeSilent type
Length (L) mm26003550
Width (W) mm10001220
Height (H) mm18501950
Tank capacity (L)368368

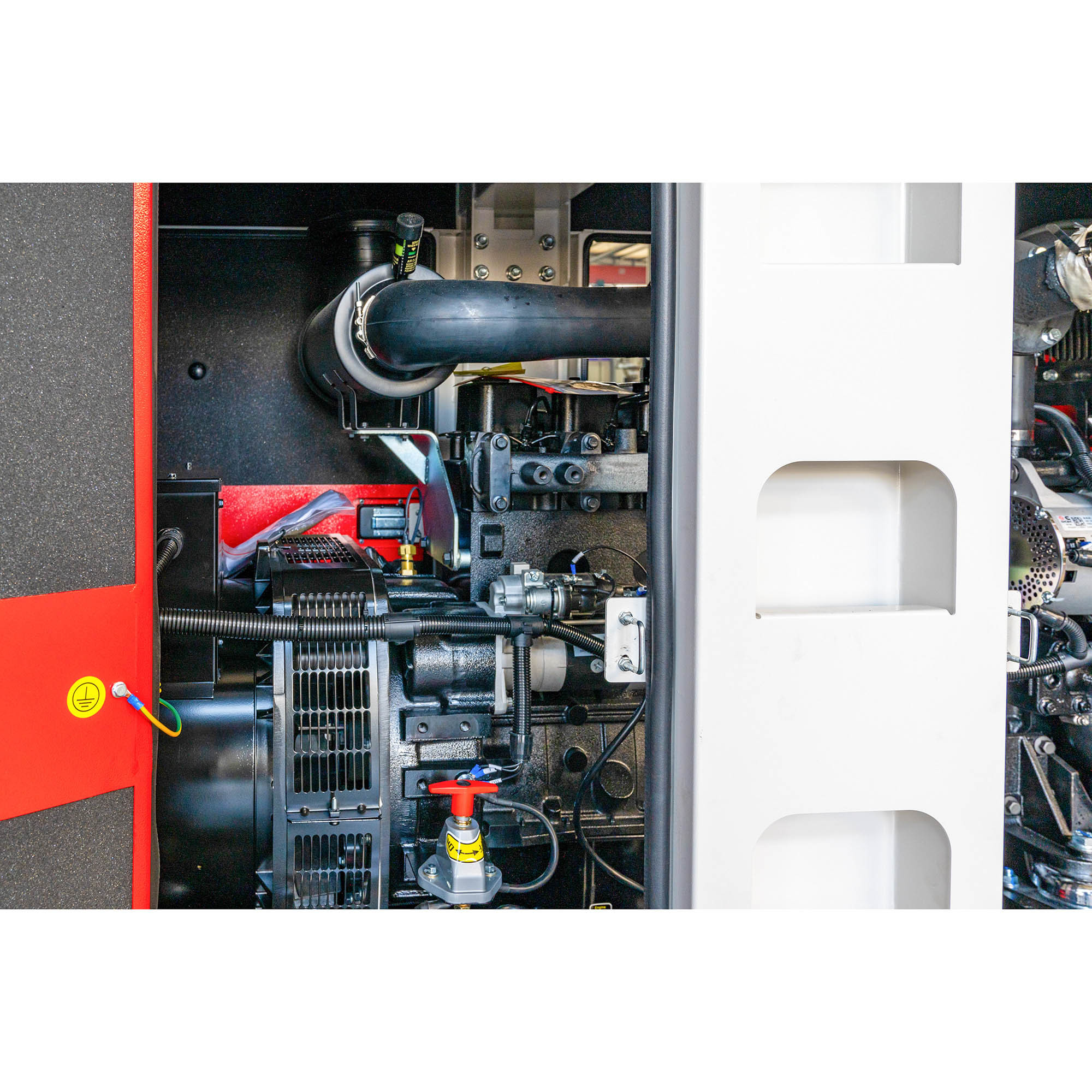

Engine Specifications
Engine model & manufacturer6DTAA8.9-G21(SDEC)
Engine Model6DTAA8.9-G21
Engine TypeIn-line, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion typeDirect injection
Cylinder Typewet cylinder liner
Number of cylinders6
Bore × stroke114 × 144 mm
Displacement8.82 lit.
Compression ratio18 : 1
Firing order1-5-3-6-2-4
fuel injection advance angle7.5°BTDC
Dry weight740 kg
Dimension1422×762×1186mm
RotationCCW viewed from flywheel
Fly wheel housingSAE 2#
Fly wheelSAE 11.5#(number of teeth: 125)
Injection pumpLongkou in-line "P" type
GovernorElectric type
Feed pumpMechanical type
Injection nozzleMulti hole type
Alternator Specifications
Alternator
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274H
Alternator Rated Power160kw/200kva
Rated voltage (V)230v/400v
Rated frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%

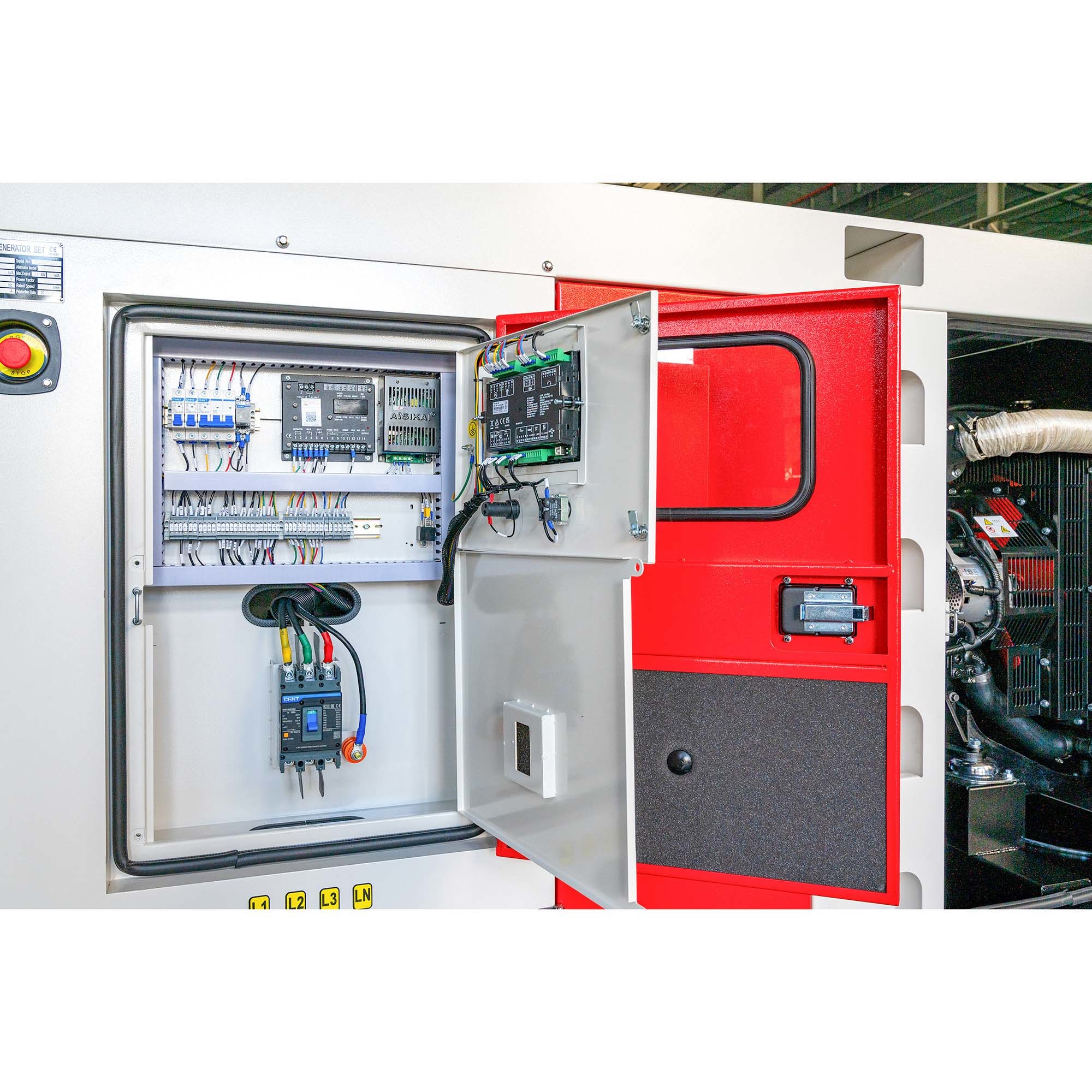

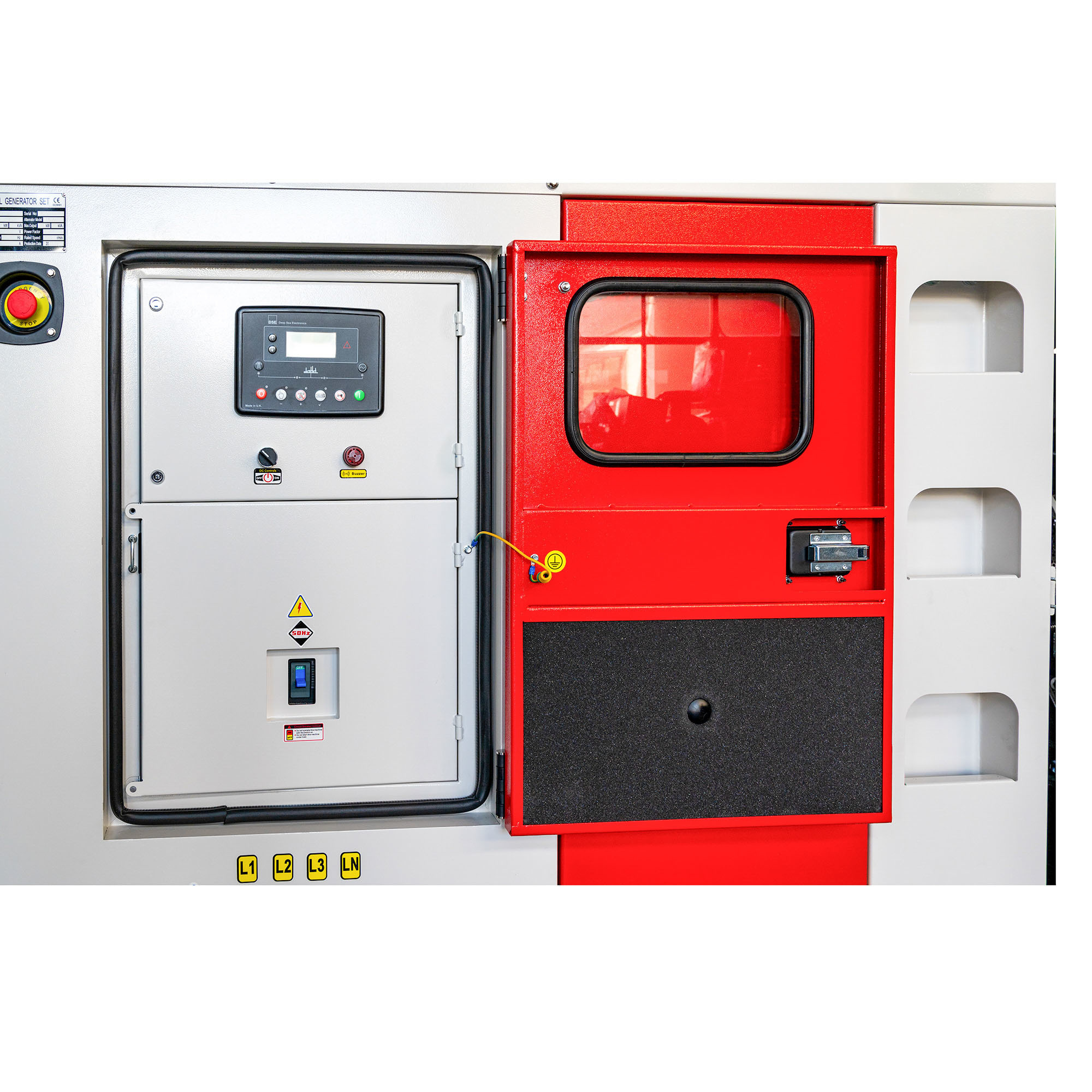

Control Panel Features
DSE 6120 Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)(DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
EngineAlternatorFuel SystemGenerating Set
Water Jacket PreheaterPMG excitation12 / 24 hour base tankDeepsea, ComAp, Smartgen etc. controller
Oil PreheaterSpace heaterBunded fuel tankTrailer
Oil manual pumpWinding temperature measuringExternal fuel tankTools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA 3Farm Irrigation SDEC 6DTAA8.9-G21 Diesel Generator 160kW 200kVA 4
