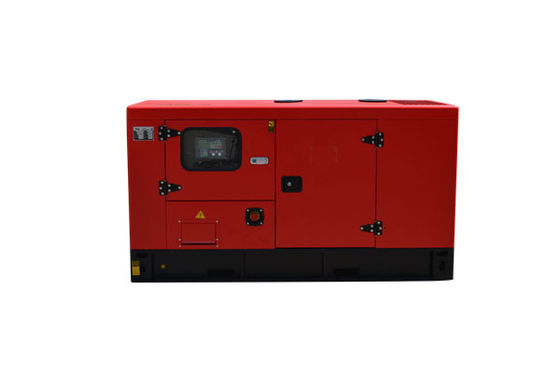

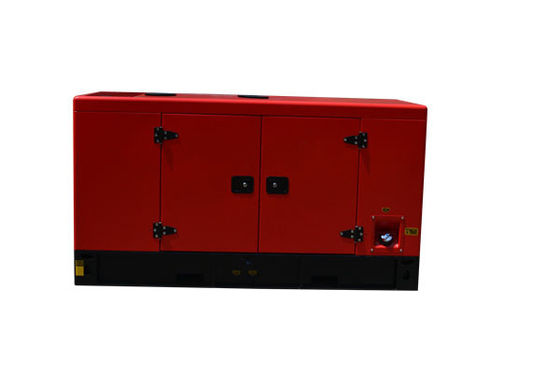

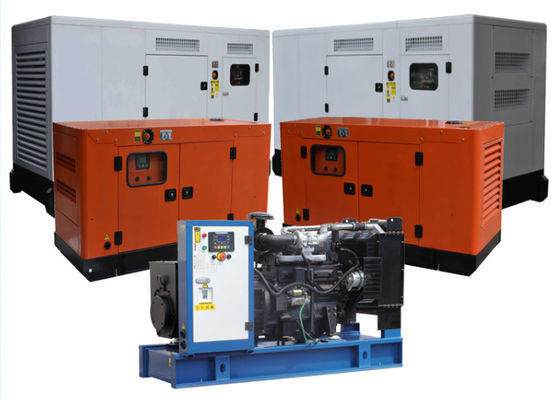

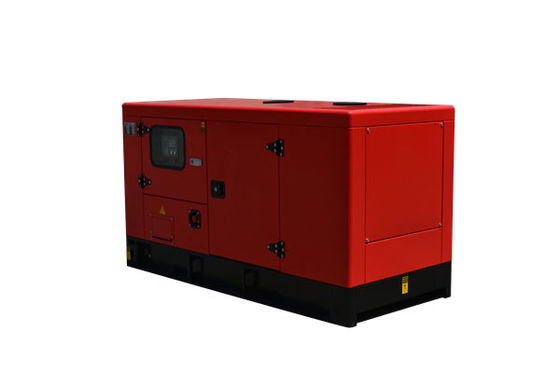

IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator

1 set
MOQ
IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Warranty: 12 Months/1000 Hours
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Product Name: Diesel Genertor, Generator 250kw, Powered By Cummins Diesel Generator, Standby Use Power Diesel Generator 1000kw
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 100KW
Output Type: AC Single/Three Phase
Engine: Original SDEC
Controller: Deepsea/Smartgen/etc
Cooling Method: Water-cooling System
Application: Indursty Bank Etc
High Light:

375kva SDEC Genset

,

375kva Open Type Generator

,

IEC34 Standard SDEC Genset

Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: BSD series
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

Diesel generator set powered by SDEC engine 300kw

Products Features:
1.We cooperate with famous diesel engine Powered by original
Baudouin engine.
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.


Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE

Genset model Prime power KW Prime Power KVA Standby powerKW Standby Power KVA Engine Brand Engine Model Engine Power KW Alternator model
BSD11S 8 10 9 11 SDEC 50HZ 3Z1.1-G42 10 BW-164B
BSD11 8 10 9 11 3Z1.1-G42 10 BW-164B
BSD16.5S 12 15 13 17 3Z1.1-G41 17 BW-164D
BSD16.5 12 15 13 17 3Z1.1-G41 17 BW-164D
BSD16.5S 12 15 13 17 4Z2.3-G11 16 BW-164D
BSD16.5 12 15 13 17 4Z2.3-G11 16 BW-164D
BSD16.5S 12 15 13 17 4Z2.3-G21 16 BW-164D
BSD16.5 12 15 13 17 4Z2.3-G21 16 BW-164D
BSD22S 16 20 18 22 4Z2.7-G11 22 BW-184ES
BSD22 16 20 18 22 4Z2.7-G11 22 BW-184ES
BSD22S 16 20 18 22 4Z2.7-G21 22 BW-184ES
BSD22 16 20 18 22 4Z2.7-G21 22 BW-184ES
BSD27.5S 20 25 22 28 4Z3.0-G11 27 BW-184FS
BSD27.5 20 25 22 28 4Z3.0-G11 27 BW-184FS
BSD27.5S 20 25 22 28 4Z3.0-G21 27 BW-184FS
BSD27.5 20 25 22 28 4Z3.0-G21 27 BW-184FS
BSD34.375S 25 31 28 34 4Z3.2-G11 32 BW-184G
BSD34.375 25 31 28 34 4Z3.2-G11 32 BW-184G
BSD34.375S 25 31 28 34 4Z3.2-G21 32 BW-184G
BSD34.375 25 31 28 34 4Z3.2-G21 32 BW-184G
BSD44S 32 40 35 44 4ZT3.2-G11 39 BW-184J
BSD44 32 40 35 44 4ZT3.2-G11 39 BW-184J
BSD44S 32 40 35 44 4ZT3.2-G21 39 BW-184J
BSD44 32 40 35 44 4ZT3.2-G21 39 BW-184J
BSD55S 40 50 44 55 4ZT3.5-G21 49 BW-224D
BSD55 40 50 44 55 4ZT3.5-G21 49 BW-224D
BSD68.75S 50 63 55 69 4ZT4.1-G21 60 BW-224E
BSD68.75 50 63 55 69 4ZT4.1-G21 60 BW-224E
BSD75.625S 55 69 61 76 4ZTAA4.1-G21 64 BW-224F
BSD75.625 55 69 61 76 4ZTAA4.1-G21 64 BW-224F
BSD88S 64 80 70 88 4ZTAA4.1-G31 74 BW-224G
BSD88 64 80 70 88 4ZTAA4.1-G31 74 BW-224G
BSD68.75S 50 63 55 69 SC4H95D2 62 BW-224E
BSD68.75 50 63 55 69 SC4H95D2 62 BW-224E
BSD88S 64 80 70 88 SC4H115D2 78 BW-224G
BSD88 64 80 70 88 SC4H115D2 78 BW-224G
BSD110S 80 100 88 110 SC4H140D2 95 BW-274C
BSD110 80 100 88 110 SC4H140D2 95 BW-274C
BSD123.75S 90 113 99 124 SC4H160D2 105 BW-274D
BSD123.75 90 113 99 124 SC4H160D2 105 BW-274D
BSD137.5S 100 125 110 138 SC4H180D2 120 BW-274D
BSD137.5 100 125 110 138 SC4H180D2 120 BW-274D
BSD165S 120 150 132 165 SC7H205D2 132 BW-274E
BSD165 120 150 132 165 SC7H205D2 132 BW-274E
BSD181.5S 132 165 145 182 SC7H220D2 150 BW-274G
BSD181.5 132 165 145 182 SC7H220D2 150 BW-274G
BSD206.25S 150 188 165 206 SC7H250D2 168 BW-274G
BSD206.25 150 188 165 206 SC7H250D2 168 BW-274G
BSD220S 160 200 176 220 SC8D280D2 185 BW-274H
BSD220 160 200 176 220 SC8D280D2 185 BW-274H
BSD247.5S 180 225 198 248 SC9D310D2 208 BW-274J
BSD247.5 180 225 198 248 SC9D310D2 208 BW-274J
BSD275S 200 250 220 275 SC9D340D2 228 BW-274K
BSD275 200 250 220 275 SC9D340D2 228 BW-274K
BSD343.75S 250 313 275 344 SC13G420D2 280 BW-314DS
BSD343.75 250 313 275 344 SC13G420D2 280 BW-314DS
BSD385S 280 350 308 385 SC12E460D2 307 BK314ES
BSD385 280 350 308 385 SC12E460D2 307 BK314ES
BSD412.5S 300 375 330 413 SC12E480D2 323 BW-314F
BSD412.5 300 375 330 413 SC12E480D2 323 BW-314F
BSD412.5S 300 375 330 413 SC13E500D2 339 BW-314F
BSD412.5 300 375 330 413 SC13E500D2 339 BW-314F
BSD440S 320 400 352 440 SC13E550D2 368 BW-314FS
BSD440 320 400 352 440 SC13E550D2 368 BW-314FS
BSD495S 360 450 396 495 SC25G610D2 405 BW-354C
BSD495 360 450 396 495 SC25G610D2 405 BW-354C
BSD550S 400 500 440 550 SC25G690D2 459 BW-354D
BSD550 400 500 440 550 SC25G690D2 459 BW-354D
BSD625S 450 563 500 625 SC27G755D2 505 BW-354DS
BSD625 450 563 500 625 SC27G755D2 505 BW-354DS
BSD687.5S 500 625 550 688 SC27G830D2 565 BW-354E
BSD687.5 500 625 550 688 SC27G830D2 565 BW-354E
BSD742.5S 540 675 594 743 SC27G900D2 600 BW-354F
BSD742.5 540 675 594 743 SC27G900D2 600 BW-354F
BSD825S 600 750 660 825 6KTAA25-G32 685 BW-404B
BSD825 600 750 660 825 6KTAA25-G32 685 BW-404B
BSD893.75S 650 813 715 894 6KTAA25-G31 685 BW-404C
BSD893.75 650 813 715 894 6KTAA25-G31 685 BW-404C
BSD990S 720 900 792 990 6KTAA25-G320 782 BW-404D
BSD990 720 900 792 990 6KTAA25-G320 782 BW-404D
BSD1100S 800 1000 880 1100 6KTAA25-G321 880 BW-404E
BSD1100 800 1000 880 1100 6KTAA25-G321 880 BW-404E
BSD1237.5S 900 1125 990 1238 6WTAA35-G310 1018 BW-404F
BSD1237.5 900 1125 990 1238 6WTAA35-G310 1018 BW-404F
BSD1375S 1000 1250 1100 1375 6WTAA35-G311 1118 BW-404G
BSD1375 1000 1250 1100 1375 6WTAA35-G311 1118 BW-404G

IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator 0IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator 1IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator 2IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator 3

IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator 4IEC34 Standard 375kva 300kw SDEC Genset Silent And Open Type Generator 5
