750kW 938KVA BOBIG WEICHAI Diesel Generator (Model: 8M33D890E200)
Our 750kW 938KVA BOBIG WEICHAI diesel generator (Model: 8M33D890E200) is designed to provide reliable power for a wide range of applications. Backed by the renowned Weichai brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: With a rated power of 750kW (938KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.
Engine Excellence
Engine Model: Powered by the 8M33D890E200 engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.
Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.
Technical Specifications
| General Information | Prime Power | Standby Power |
|---|
| Rated Power (kVA) | 938 | 1031 |
| Power Rating (kW) | 750 | 825 |
| Frequency (Hz) | 50 |
| Engine Model | 8M33D890E200 |
| Engine Speed (RPM) | 1500 |
| Phase | 3 |
| PF | 0.8 |
| Control System | Digital |
| Rated Voltage (V) | 400/230 (According to customer requirements) |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load |
PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Specifications
| Parameter | Specification |
|---|
| Engine Model & Manufacturer | 8M33D890E200 (WEICHAI) |
| Number of Cylinders | 8 |
| Cylinder Arrangement | In-line |
| Cycle | V-Type |
| Aspiration | Turbocharging and intercooling |
| Bore x Stroke | 150 x 185 mm |
| Cubic Capacity | 26.14 L |
| Compression Ratio | 15.0:1 |
| Prime Power/Speed | 815 kW/1500 rpm |
| Standby Power/Speed | 906 kW/1500 rpm |
| Governor Type | Mechanical pump |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 105 L |
| Coolant Capacity (engine only) | 62.2 L |
| Fuel Consumption @ 100% Load | 815 g/kWh @1500 rpm |
| Starter Motor | DC 24V |
| Charge Alternator | DC 24V |
Alternator Specifications
| Parameter | Specification |
|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-404E |
| Alternator Rated Power | 750kw/938kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Dimensions and Weight
| Model | BWC1031 (Open Type) | BWC1031S (Silent Type) |
|---|
| Length (L) mm | 4500 | 5000 |
| Width (W) mm | 1800 | 1800 |
| Height (H) mm | 2745 | 2400 |
| Tank Capacity (L) | 0 | 0 |

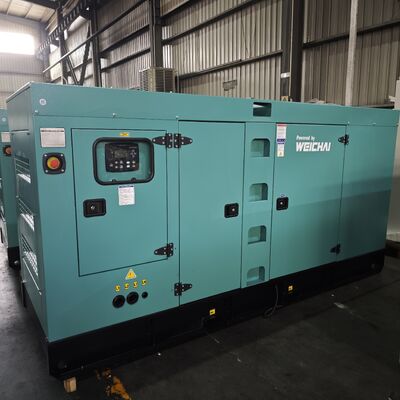

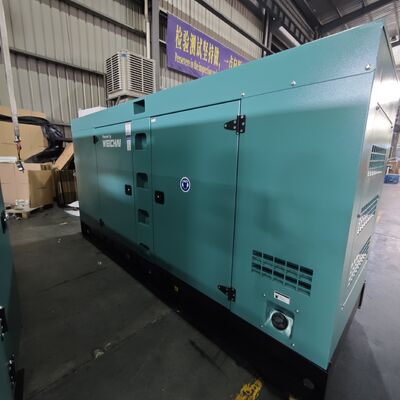

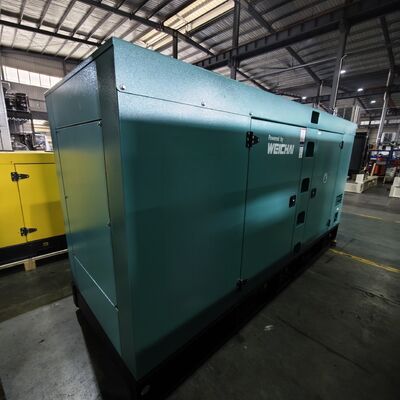

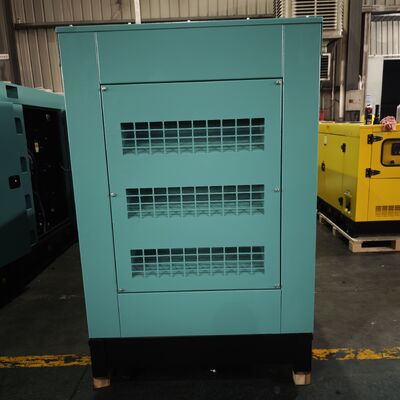

Product Gallery
Applications
- Industrial Use: Backup power source for factories, ensuring continuous production during power outages
- Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services like lighting, elevators, and security systems
- Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues. After expiration, we provide cost-based spare parts maintenance.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Why Choose Us
- Brand Reputation: WEICHAI is a well-known and trusted brand in the diesel generator industry
- Quality Assurance: Products manufactured in strict accordance with international standards with rigorous quality inspections
- Customization Options: Customized solutions based on your specific requirements
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after receiving deposit.
Which port do you often use when exporting?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts provided for maintenance?
We provide regular engine's air filter, water filter, fuel filter, and oil filter for customer self-maintenance.
Can you offer parts if we need them?
Yes, we can offer parts at any time, not limited to warranty period. Parts are usually shipped within 3-5 days.
Can voltage, frequency, tank capacity, phase and color be customized?
Yes, all specifications can be customized according to your needs.
What is your distribution policy?
We welcome distributors worldwide. We can issue authority certificates and sign agreements accordingly.
