Fuel-Saving 900kW 1125KVA Shangchai SDEC Customize Silent diesel Generator Set, CE Certified, Factory Direct, Best Value Choice

Fuel-Saving 900kW 1125KVA Shangchai SDEC Customize Silent diesel Generator Set, CE Certified, Factory Direct, Best Value Choice
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 1125KVA , Powered By SDEC Diesel Generator, Standby Use Power Diesel Generator 900kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 900kW
Engine: Original SDEC
Cooling Method: Water-cooling System
Highlight:

Shangchai SDEC silent diesel generator

,

900kW silent diesel generator set

,

CE certified diesel generator
Basic Infomation
Place of Origin: China
Brand Name: SDEC
Certification: CE
Model Number: 6WTAA35-G310
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 working days
Supply Ability: 500pcs per month
Product Description

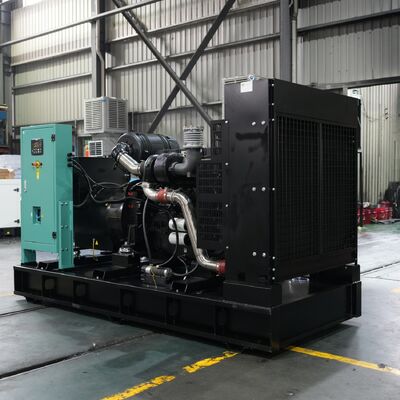

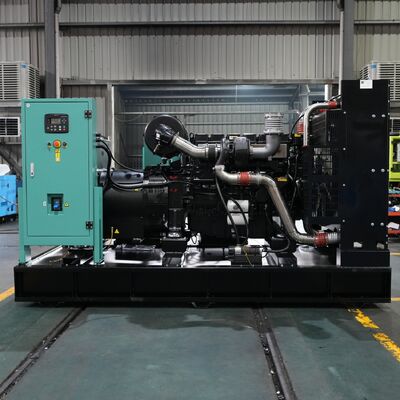

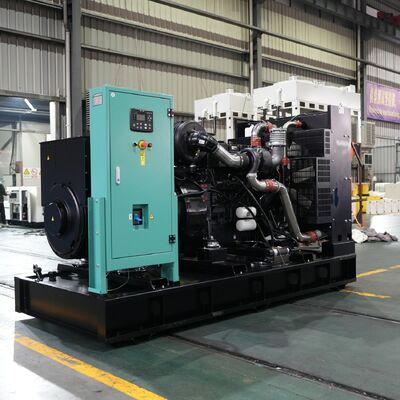

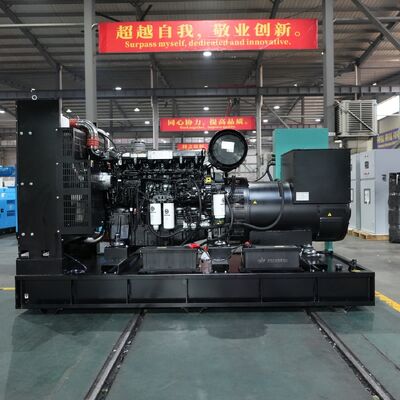

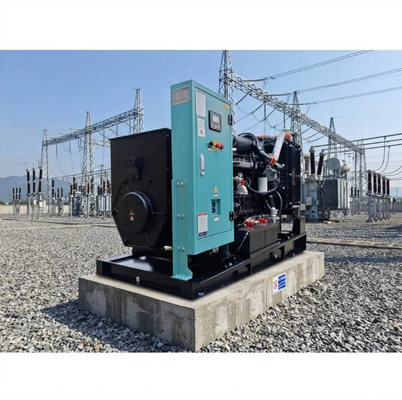

900kW 1125KVA Shangchai SDEC Customize Silent Diesel Generator Set
CE Certified, Factory Direct, Best Value Choice - Model: 6WTAA35-G310
Product Overview
Our 900kW 1125KVA BOBIG SDEC diesel generator (Model: 6WTAA35-G310) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the renowned SDEC brand, it offers superior performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 900kW (1125KVA) for stable and efficient operation
  • Standard Frequency: 50Hz compatible with most electrical equipment
  • Continuous operation capability even under heavy loads
Engine Excellence
  • Engine Model: 6WTAA35-G310 SDEC engine
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Advanced technology with high torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 1125 1238
Power Rating (kW) 900 990
Frequency (Hz) 50
Engine Model 6WTAA35-G310
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power supply during utility interruptions. No overload capability at this rating.
Dimensions and Weight
Model BSD1238 (Open Type) BSD1238S (Silent Type)
Length (mm) 4360 5600
Width (mm) 1600 2200
Height (mm) 3375 2550
Tank Capacity (L) 2070 2070
Engine Specifications
Engine Model & Manufacturer 6WTAA35-G310 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 186 × 215mm
Displacement 35.1 lit.
Compression Ratio 15 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle Electronic control
Dry Weight 4000 kg
Dimension 2429×1422×2019mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404F
Alternator Rated Power 900kw/1125kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Customization & Additional Features
  • Full customization and OEM services available with design drawings
  • Standard DSE 6120 controller included
  • Optional engine, generator, and controller configurations
  • Compliance with ISO 8528-5:2018, GB/T2820.5-2009, and CE standards
Environmental Adaptability
  • Ambient Temperature Range: +5°C to +40°C
  • Altitude: Up to 1000m (custom solutions available for different conditions)
Applications
Industrial Use: Backup power for factories ensuring continuous production during outages
Commercial Buildings: Power for office buildings, shopping malls, and hotels maintaining essential services
Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
Packaging & Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
Why Choose BOBIG
  • Brand Reputation: SDEC is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
  • Factory Direct: Best value with competitive pricing
