Home Use Single Phase 24kw diesel Generator Set Price with Yangdong Engine Y4102D

1
MOQ
3500-5500 USD
Price
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

24kw diesel generator set

,

single phase diesel generator

,

Yangdong engine Y4102D generator
Basic Infomation
Place of Origin: China
Brand Name: YANGDONG
Certification: ISO 9001
Model Number: Y4102D
Payment & Shipping Terms
Packaging Details: 2450*1200*1040cm
Delivery Time: 30 work days
Supply Ability: 500PCS Per Month
Product Description
Home Use Single Phase 24kw Diesel Generator Set
High-performance, heavy-duty diesel generator set designed for reliable prime and standby power applications. Engineered with YANGDONG engine technology and encased in a robust soundproof canopy for low noise operation. Ideal for construction, industrial, commercial, and emergency backup power requirements.

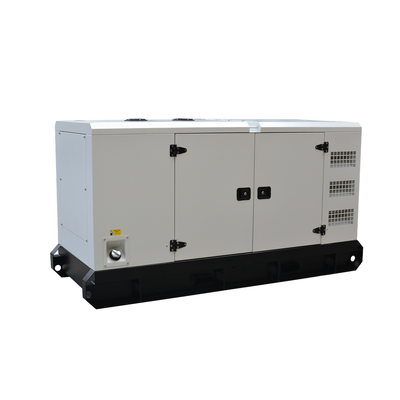

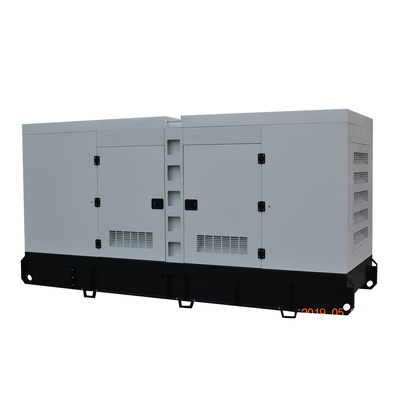

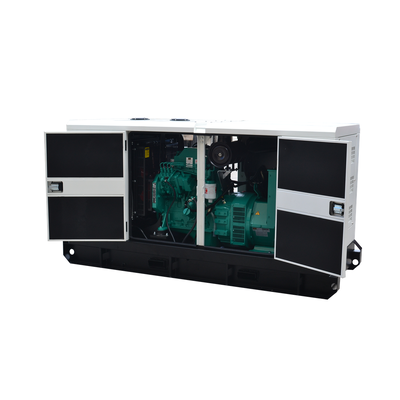

KUBOTA diesel generator set exterior view KUBOTA diesel generator set side view KUBOTA diesel generator set internal components
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 30 33
Power Rating (kW) 24 26
Frequency (Hz) 50
Engine Model Y4102D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
According to customer requirements
PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BY33 (Open Type) BY33S (Silent Type)
Length (L) mm 1570 2250
Width (W) mm 610 880
Height (H) mm 1170 1100
Tank Capacity (L) 55 55
Engine Specifications
Engine Model & Manufacturer Y4102D (YANGDONG)
Number of Cylinders 4
Injection Type Direct
Aspiration Natural
Configuration Vertical
Bore 102 mm
Stroke 118 mm
Compression Ratio 18
Displacement 3.875 L
Dry Engine Weight 320 kg
Dimensions (L×W×H) 892×618×740
The Flywheel Shell Interface SAE3
Governed Engine Speed 1500
Continuous Power without Fans 33
Standby Power 37
Number of Flywheel Teeth 119
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184G
Alternator Rated Power 24kw/30kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet specific application requirements
DSE 6120 control panel display and interface
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

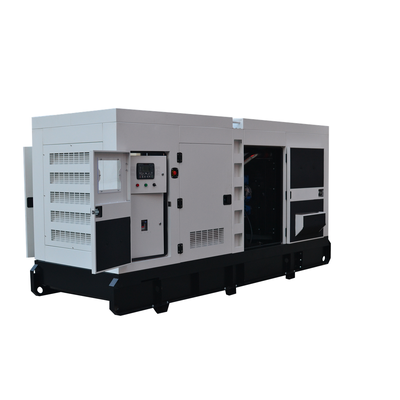

KUBOTA diesel generator set installation view KUBOTA diesel generator set operational view
