KUBOTA 5-13kW 6-13kVA Super Silent Single Phase Diesel Generator 50Hz Soundproof ATS Remote Control

1
MOQ
2798-3571 USD
Price
KUBOTA 5-13kW 6-13kVA Super Silent Single Phase Diesel Generator 50Hz Soundproof ATS Remote Control
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

KUBOTA silent diesel generator with ATS

,

single phase diesel generator 50Hz

,

soundproof diesel generator remote control
Basic Infomation
Place of Origin: China
Brand Name: KUBOTA
Certification: ISO 9001
Model Number: V1505
Payment & Shipping Terms
Packaging Details: 1750*850*1030cm
Delivery Time: 30 work days
Supply Ability: 500PCS Per Month
Product Description
KUBOTA 5-13kW Super Silent Diesel Generator
Our KUBOTA Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Kubota engine, this unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

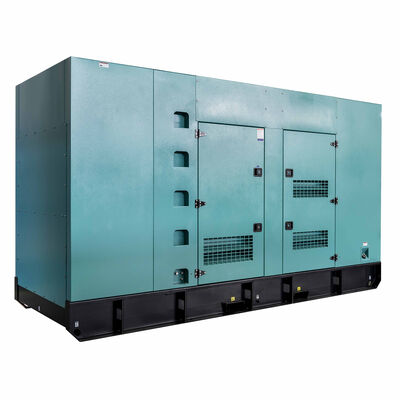

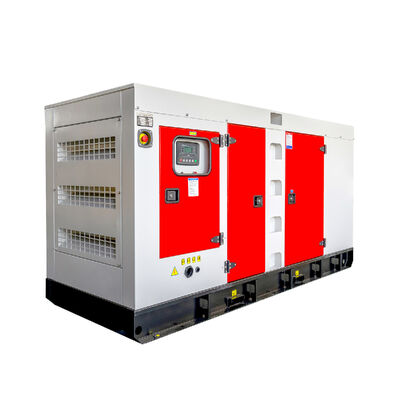

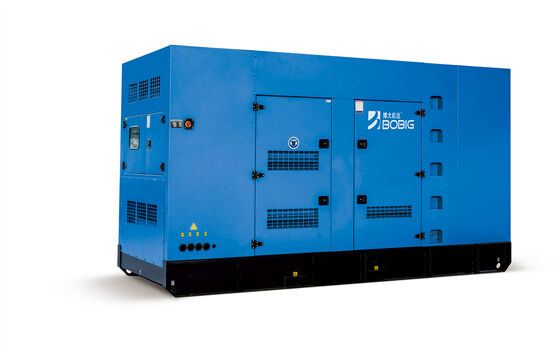

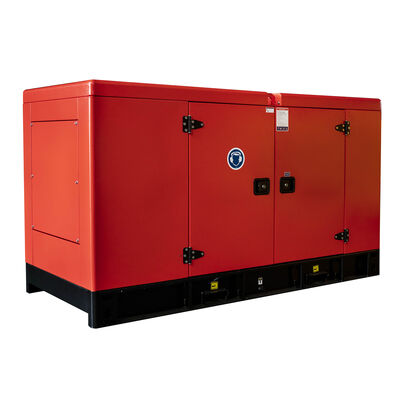

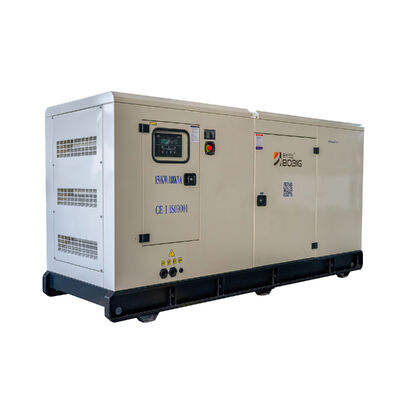

KUBOTA diesel generator set exterior view KUBOTA diesel generator set side view KUBOTA diesel generator set internal components
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 10 11
Power Rating (kW) 8 9
Frequency (Hz) 50
Engine Model V1505
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BK11
Specification Open Type Silent Type
Length (L) mm 1400 1750
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 18 18
Model BK8
Specification Open Type Silent Type
Length (L) mm 1400 1750
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 14 14
Engine Specifications
Engine Model & Manufacturer V1505 (KUBOTA)
Engine Model V1505-E2BG-CHN-1
Engine Code Number 1G964-14000
Type Vertical, water-cooled, 4-cycle diesel engine
Number of Cylinder 4
Cylinder Bore (mm) 78
Stroke (mm) 78.4
Combustion Type Spherical Type (E-TVCS)
Total Displacement (L) 1.498
Brake Horse Power (Continuous) kW/rpm(PS/rpm) 15.1/1800 (20.5/1800), 12.5/1500(17.0/1500)
Brake Horse Power (Stand-by) kW/rpm(PS/rpm) 13.4/1800 (18.2/1800), 11.1/1500(15.1/1500)
Firing Order 1-3-4-2
Direction of Rotation Counter-Clockwise (Viewed from Flywheel Side)
Injection Pump Bos-ch Type
Fuel Injection Pressure (MPa) kgf/cm2 13.73 (140)
Fuel Injection Timing (deg.) 17.5 Before T.D.C (p)
Compression Ratio 24
Governor Type All Speed Mechanical Governor
Fuel Oil Diesel Fuel No.2-D (ASTMD975)
Starting System Starter (with glow plug)
Starter Output (V-kW) 12 - 1.2
Alternator Output (V - A) 12 - 30
Cooling System Pressurized Radiator, Forced Circulation with water pump
Lubricating System Forced Lubricating by Trochoid Pump
Lubrication Oil Class CF lubricating oil as per API classification is recommended
Lub. Oil Capacity (L) 6.7
Dimensions (L x W x H) mm 636.8×392.3×607.1
Emission Regulation China Off Road Stage Ⅱ
Intake Resistance (kPa) mmAq ≦ 1.96 (200)
Back Pressure (kPa) mmHg ≦ 7.07 (53)
Ho (Heat Rejection to coolant) kcal/h 15,360
Combustion Air Requirements (25℃ and 750mmHg) m3/min 1.17
Exhaust Gas Volume (25℃ and 750mmHg) m3/min 2.84
Dry Weight (kg) Approx. 106
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164B
Alternator Rated Power 8kw/10kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
DSE 6120 control panel display and interface
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
KUBOTA diesel generator set installation view KUBOTA diesel generator set operational view
