1340kW 1675kVA Containerized Silent Open Diesel Generator, Cumm Engine, 3-Phase, 50/60Hz, Industrial Backup Power Support OEM

1340kW 1675kVA Containerized Silent Open Diesel Generator, Cumm Engine, 3-Phase, 50/60Hz, Industrial Backup Power Support OEM
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 1675kVA , Powered By CUMMIN S Diesel Generator, Standby Use Power Diesel Generator 1340kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 1340kW
Engine: Original CUMMIN S
Cooling Method: Water-cooling System
Highlight:

1340kW containerized diesel generator

,

Cummins industrial backup power generator

,

silent open diesel generator 50/60Hz
Basic Infomation
Place of Origin: China
Brand Name: CUMMIN S
Certification: CE
Model Number: KTA50-G15X
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
1340kW 1675kVA Containerized Silent Open Diesel Generator

Industrial backup power solution featuring Cummin s engine, 3-phase operation, and 50/60Hz frequency compatibility. Supports OEM customization.

Product Overview

The 1340kW 1675KVA BOBIG CUMMIN S diesel generator (Model: KTA50-G15X) delivers reliable power for industrial, commercial, and residential applications. Built with Cummin s engine technology for superior performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 1340kW (1675KVA) for demanding industrial applications
  • Frequency: 50Hz operation suitable for most electrical equipment
  • Stable prime power output ensures continuous operation under heavy loads
Engine Excellence
  • Engine Model: KTA50-G15X Cummin s engine
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Advanced technology for high torque, fuel efficiency, and low emissions
Technical Specifications
Power Ratings
Parameter Prime Power Standby Power
Rated Power (kVA) 1675 1843
Power Rating (kW) 1340 1474
Frequency (Hz) 50
Engine Model KTA50-G15X
Engine Speed (RPM) 1500
Phase 3
Power Factor 0.8
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions & Weight
Model BC1843 (Open) BC1843S (Silent)
Length (mm) 5600 6100
Width (mm) 2150 2250
Height (mm) 2250 3050
Tank Capacity (L) 3082 3082
Engine Details
Parameter Specification
Engine Model & Manufacturer KTA50-G15X (Cummin s)
Number of Cylinders 16
Cylinder Arrangement In-line
Cycle Four stroke
Aspiration Turbocharged, LTA
Bore x Stroke 159 x 159 mm
Displacement 50.3 L
Compression Ratio 13.9:1
Prime Power/Speed 1491 kW/1500 rpm
Standby Power/Speed 1657 kW/1500 rpm
Fuel System Cummin s PT
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 47.0 L
Coolant Capacity (engine only) 37.0 L
Fuel Consumption @ 100% load 195 g/kWh @1500 rpm
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-454D
Rated Power 1340kw/1675kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Specifications
  • Ambient Temperature Range: +5°C to +40°C
  • Altitude: Suitable for use up to 1000m
  • Custom solutions available for different environmental conditions
Compliance & Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services

Customization Support: We support OEM services and customization with design drawings.

Standard Equipment: All units include original power supplies and standard DSE 6120 controller. Engine, generator, and controller options available.

Warranty & Support

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Cost-based spare parts maintenance available after warranty expiration.

Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Product Image

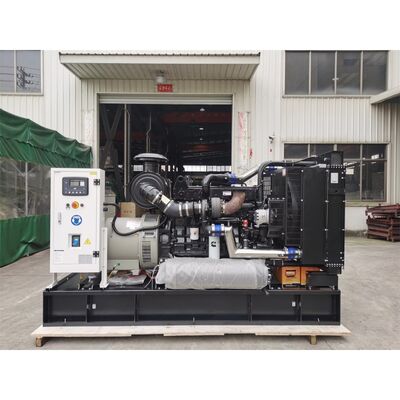

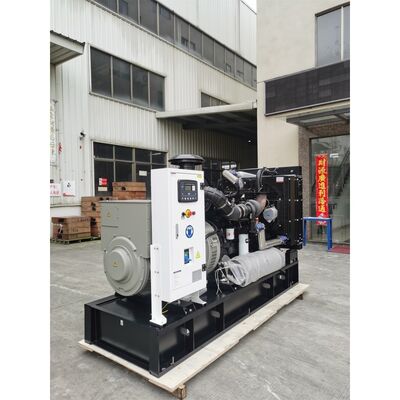

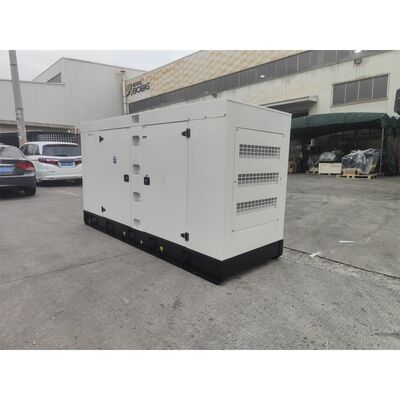

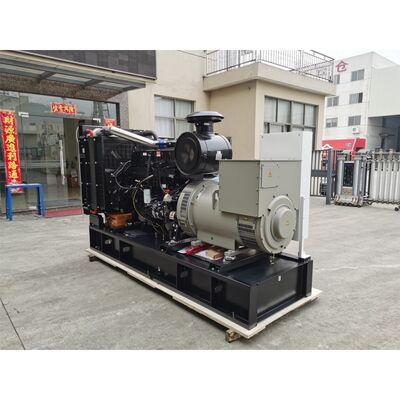

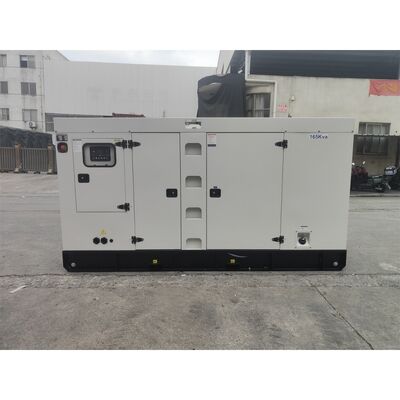

1340kW 1675kVA Diesel Generator Unit
Certifications
Product Certification 1 Product Certification 2
