Factory Customizable OEM 280kW 350KVA Power Engine 3phase Power Generator 3 Phase Super Silent Diesel Generator Set Cumm

Factory Customizable OEM 280kW 350KVA Power Engine 3phase Power Generator 3 Phase Super Silent Diesel Generator Set Cumm
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 350KVA , Powered By CUMMIN S Diesel Generator, Standby Use Power Diesel Generator 280kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 280kW
Engine: Original CUMMIN S
Cooling Method: Water-cooling System
Highlight:

Customizable OEM 280kW diesel generator

,

350KVA super silent generator set

,

3 phase Cummins power engine
Basic Infomation
Place of Origin: China
Brand Name: CUMMIN S
Certification: CE
Model Number: NTA855-G4
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
280kW 350KVA BOBIG CUMMIN S Diesel Generator
Model: NTA855-G4 - Reliable Power Solution
Our 280kW 350KVA BOBIG CUMMIN S diesel generator (Model: NTA855-G4) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 280kW (350KVA) to meet power needs of various industrial, commercial, and residential applications. Prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: Operates at standard 50Hz, suitable for most electrical equipment.
Engine Excellence
Engine Model: Powered by NTA855-G4 CUMMIN S engine, combining advanced technology and high-quality manufacturing. Known for high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth and consistent power supply while minimizing wear and tear.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 350 385
Power Rating (kW) 280 308
Frequency (Hz) 50
Engine Model NTA855-G4
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating applicable for emergency power supply during utility interruptions. No overload, utility parallel or negotiated outage operation capability available.
Dimensions and Weight
Model BC385 (Open Type) BC385S (Silent Type)
Length (L) mm 3050 4200
Width (W) mm 1140 1500
Height (H) mm 1880 2100
Tank Capacity (L) 644 644
Engine Specifications
Engine Model & Manufacturer NTA855-G4 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Aftercooled
Bore x Stroke 140 x 152 mm
Displacement 14 L
Compression Ratio 14.0:1
Prime Power/Speed 317 kW/1500 rpm
Standby Power/Speed 352 kW/1500 rpm
Fuel System PT
Cooling System Force Water Cooling Cycle
Frequency Droop ≤ 5%
Total Lubrication System Capacity 36 L
Coolant Capacity (Engine Only) 20.8 L
Fuel Consumption (100% Load) 197 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314ES
Alternator Rated Power 280kw/350kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Adaptability
Ambient Temperature: Operates effectively in temperature range of +5°C to +40°C.
Altitude: Suitable for use at altitudes up to 1000m. Customized solutions available for different environmental conditions.
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Customization & Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with standard DSE 6120 controller. Engine, generator, and controller are optional.
Packaging: Plywood case. Delivery: 10-15 working days after receiving customer deposit.
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality. After expiration, we provide cost spare parts maintenance.
Professional after-sales service team available 24/7 for technical support, maintenance, and repair services.
Why Choose Us
  • Brand Reputation: Cummins is a well-known and trusted brand with long history of high-quality products
  • Quality Assurance: Manufactured according to international standards with rigorous quality inspections
  • Customization Options: Customized solutions based on specific requirements
Product Image

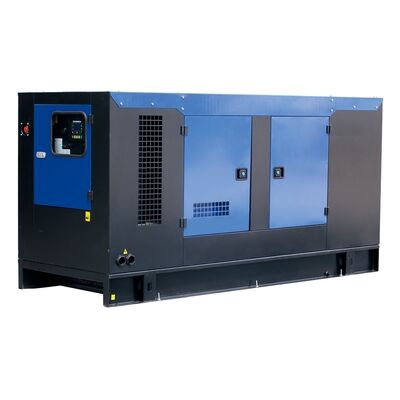

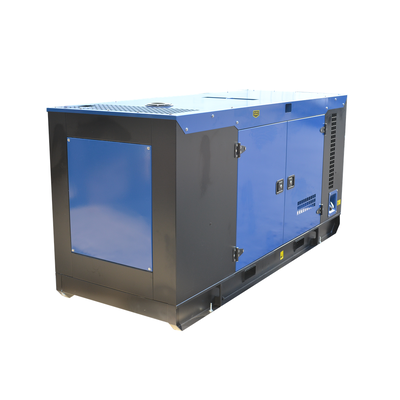

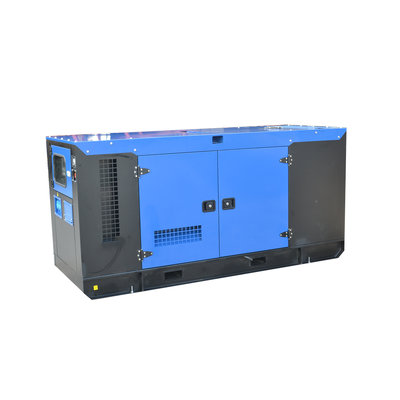

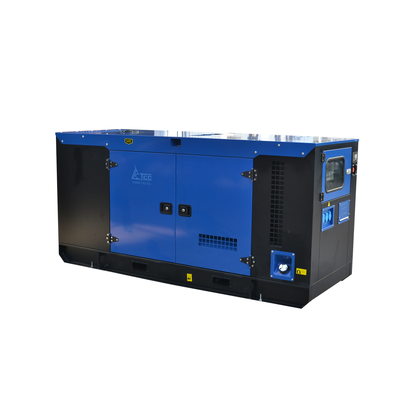

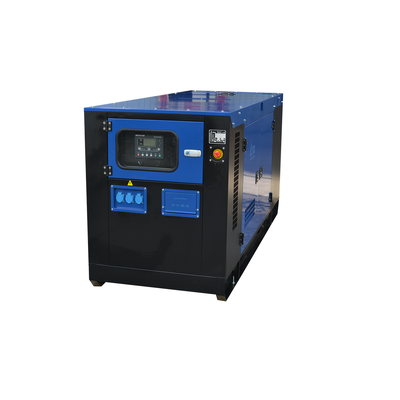

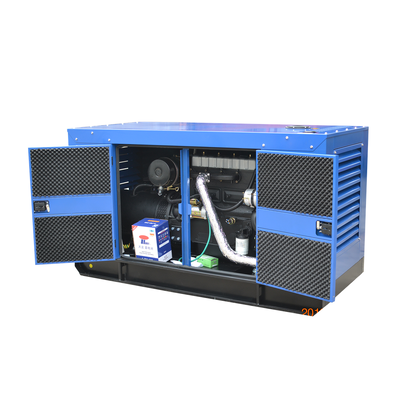

280kW 350KVA BOBIG CUMMIN S Diesel Generator Set
