CE Canopy Portable Silent diesel Generator 250kW 313KVA Water Cooled Soundproof for Home 3 Phase Good Quality Engine Cummi

CE Canopy Portable Silent diesel Generator 250kW 313KVA Water Cooled Soundproof for Home 3 Phase Good Quality Engine Cummi
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 250kW, Powered By CUMMIN S Diesel Generator, Standby Use Power Diesel Generator 313KVA
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 250kW
Engine: Original CUMMIN S
Cooling Method: Water-cooling System
Highlight:

250kW silent diesel generator

,

water cooled soundproof generator

,

3 phase Cummins diesel generator
Basic Infomation
Place of Origin: China
Brand Name: CUMMIN S
Certification: CE
Model Number: 6LTAA9.5-G1
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
250kW 313KVA BOBIG CUMMIN S Diesel Generator
Model: 6LTAA9.5-G1 - Reliable Power Solution
Our 250kW 313KVA BOBIG CUMMIN S diesel generator is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Power Performance
With a rated power of 250kW (313KVA), this generator meets the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: 50Hz standard frequency suitable for most electrical equipment.
Engine Excellence
Engine Model: 6LTAA9.5-G1 CUMMIN S engine combining advanced technology and high-quality manufacturing.
Engine Speed: 1500 RPM providing smooth and consistent power supply while minimizing wear and tear.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 313 344
Power Rating (kW) 250 275
Frequency (Hz) 50
Engine Model 6LTAA9.5-G1
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BC344 (Open Type) BC344S (Silent Type)
Length (mm) 2850 3950
Width (mm) 1100 1400
Height (mm) 2100 1950
Tank Capacity (L) 575 575
Engine Specifications
Engine Model & Manufacturer 6LTAA9.5-G1 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Charge Air Cooled
Bore x Stroke 116.5 x 148 mm
Displacement 9.5 L
Compression Ratio 16.6:1
Prime Power/Speed 290 kW/1500 rpm
Standby Power/Speed 322 kW/1500 rpm
Fuel System Mechanical fuel pump and Electronic Governor
Cooling System Force Water Cooling Cycle
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314DS
Alternator Rated Power 250kW/313kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Altitude ≤1000m
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Customization & Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller (engine, generator, and controller are optional).
Packaging: Plywood case
Delivery: 10-15 working days after receiving customer deposit
Warranty & Support
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or material quality issues.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Why Choose BOBIG
  • Brand Reputation: Cummins is a well-known and trusted brand in the diesel generator industry
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Customized solutions based on specific requirements
Product Images

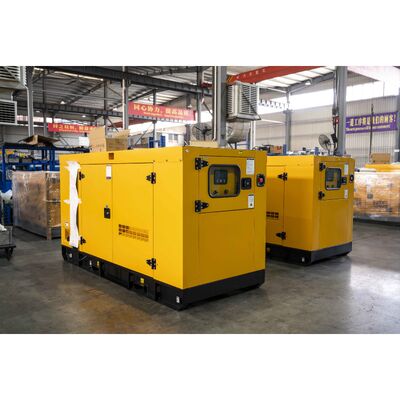

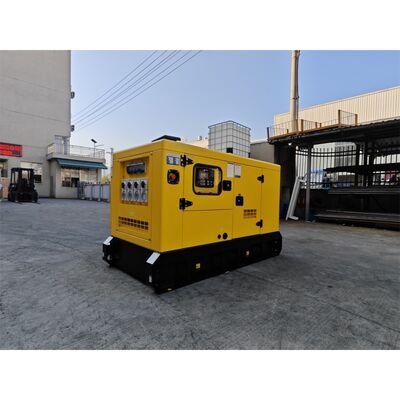

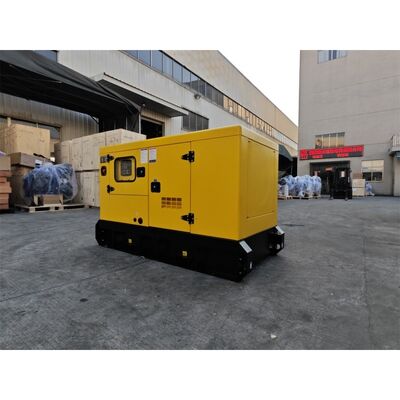

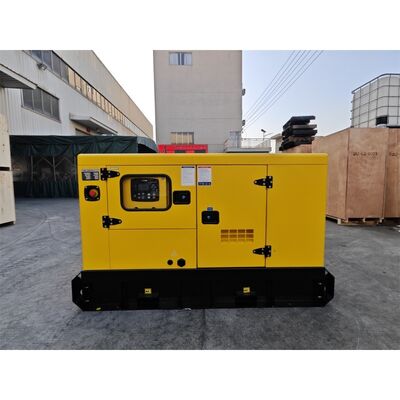

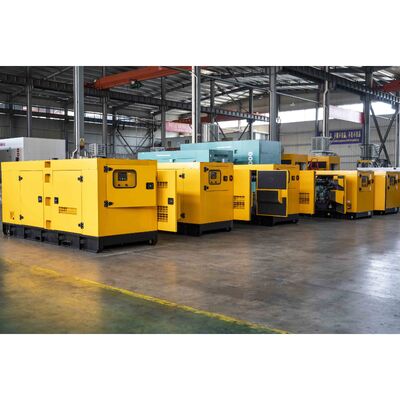

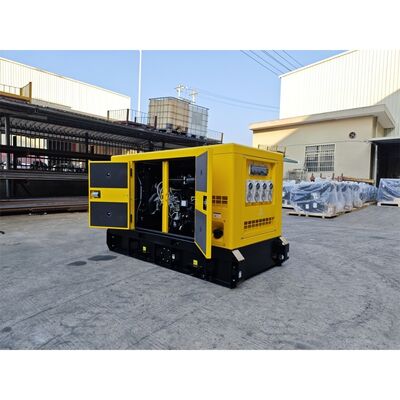

BOBIG 250kW Diesel Generator Control Panel and Unit BOBIG Generator Quality Certification BOBIG Generator International Standards Certification
