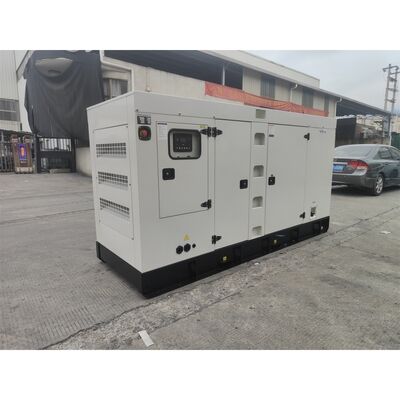

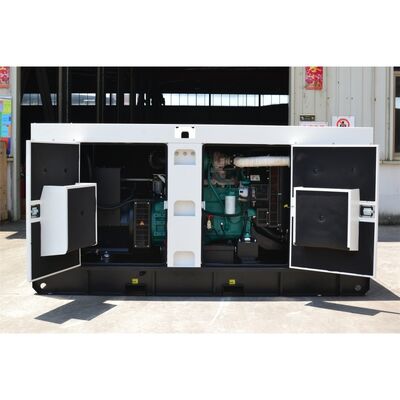

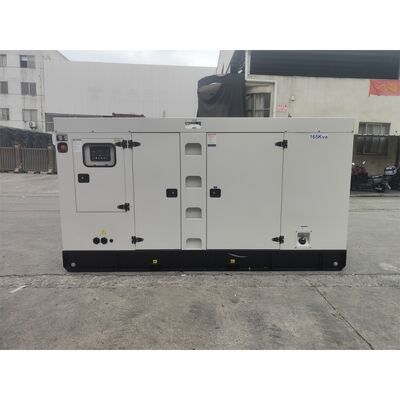

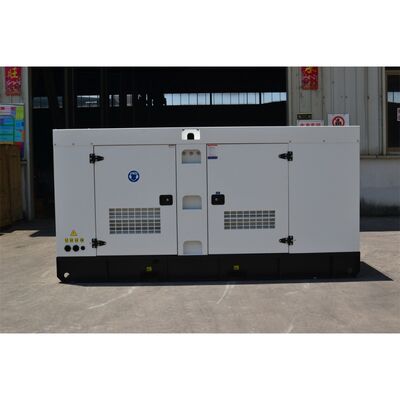

Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator

Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 400KVA , Powered By ISUZU Diesel Generator, Standby Use Power Diesel Generator 320kW
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 400KVA
Engine: Original Doosan
Cooling Method: Water-cooling System
Highlight:

Doosan silent diesel generator 320kW

,

water-cooled silent diesel generator set

,

low noise 400kVA diesel generator
Basic Infomation
Place of Origin: China
Brand Name: Doosan
Certification: CE
Model Number: P158LE
Payment & Shipping Terms
Packaging Details: Bubble wrap
Delivery Time: 30 days
Supply Ability: 3000 Sets/Month
Product Description
Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA
Water-cooling Power Diesel Generator - Model: P158LE
Product Overview
Our 320kW 400KVA BOBIG Doosan diesel generator (Model: P158LE) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the renowned Doosan brand, it combines high-quality performance with long-term durability.
Key Features
Power Performance
Rated at 320kW (400KVA) with stable prime power output and 50Hz frequency, suitable for most electrical equipment.
Engine Excellence
Powered by the P158LE Doosan engine with 1500 RPM operation, delivering high torque, fuel efficiency, and low emissions.
Environmental Adaptability
Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m.
Compliance Standards
Certified to ISO 8528-5:2018, GB/T2820.5-2009, and CE standards for quality, safety, and reliability.
Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 400 440
Power Rating (kW) 320 352
Frequency (Hz) 50
Engine Model P158LE
Engine Speed (RPM) 1500
Phase 3
PF 0.8

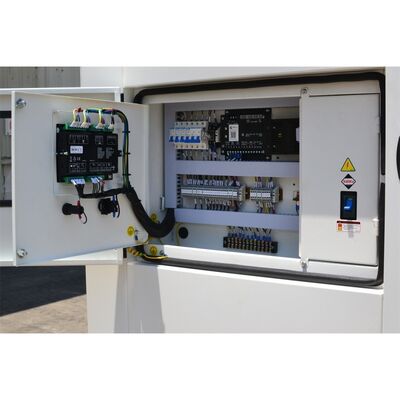

Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BDO440 (Open Type) BDO440S (Silent Type)
Length (mm) 3100 4050
Width (mm) 1050 1510
Height (mm) 2150 2050
Tank Capacity (L) 736 736
Engine Details
Engine Model & Manufacturer P158LE (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 128 × 142mm
Displacement 14.62 liters
Cylinders and Arrangement Cast iron, 8 cylinder, Vee-Type
Battery Charging Alternator 28.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 21 liters, Min. 17 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 950kg (engine only)
Dimension (LxWxH) 1389 × 1389 × 1216 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314FS
Alternator Rated Power 320kw/400kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Customization & Options
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator 0
Packaging & Shipping
Packed in plywood cases. Delivery within 10-15 working days after receiving customer deposit.
Certifications
Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator 1 Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator 2
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products carry a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance with 24/7 technical support.
Why Choose BOBIG
  • Brand Reputation: Partnership with Doosan, a trusted name in diesel generator industry
  • Quality Assurance: Manufactured to international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific customer requirements
