113kVA 90kW 124kVA 99kW Silent Diesel Generator Set With ATS Electric Start for Home Backup

1
MOQ
USD 4500-7200
Price
113kVA 90kW 124kVA 99kW Silent Diesel Generator Set With ATS Electric Start for Home Backup
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

silent diesel generator with ATS

,

90kW electric start generator

,

home backup diesel generator set
Basic Infomation
Place of Origin: China
Brand Name: YTO
Model Number: YTO LR4M3L-DA
Payment & Shipping Terms
Packaging Details: 275*104*148cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description
113kVA 90kW 124kVA 99kW Silent Diesel Generator Set
Our YTO LR4M3L-DA Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 90kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
113kVA 90kW 124kVA 99kW Silent Diesel Generator Set With ATS Electric Start for Home Backup 0 113kVA 90kW 124kVA 99kW Silent Diesel Generator Set With ATS Electric Start for Home Backup 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 113 124
Power Rating (kW) 90 99
Frequency (Hz) 50
Engine Model LR4M3L-DA
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BYT124 BYT124S (Silent Type)
Length (L) mm 2350 2750
Width (W) mm 800 1040
Height (H) mm 1500 1480
Tank Capacity (L) 207 207
Engine Specifications
Engine Model & Manufacturer LR4M3L-DA (YTO)
Number of Cylinders 4
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Method of Air Aspiration Turbocharged with Aftercooler
Cooling Medium Liquid
Bore 110 mm
Stroke 125 mm
Compression Ratio 17.0:1
Cubic Capacity 4.75 L
Dry Engine Weight 500 kg
Dimension (L×W×H) 986×1146×713 mm
Direction of Rotation Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-3-4-2 (1cyl furthest from flywheel)
Standby Power 117 kW
Adaptive Power Station (kW) 105 kW
Steady State Speed Stability at Constant Load 5%
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274D
Alternator Rated Power 90kW/113kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Specific Fuel Consumption ≤ 202g/kW·h
Transient State Voltage ≤-15%~+20%

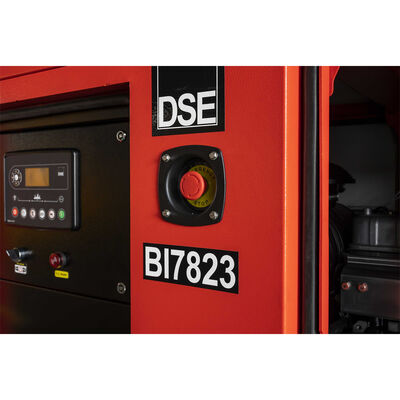

Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
113kVA 90kW 124kVA 99kW Silent Diesel Generator Set With ATS Electric Start for Home Backup 2
Available Options
Engine Options
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator Options
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System Options
  • 12/24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set Options
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine

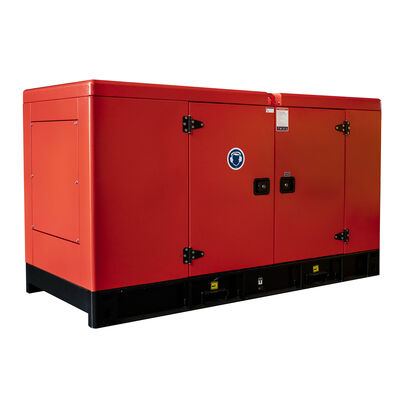

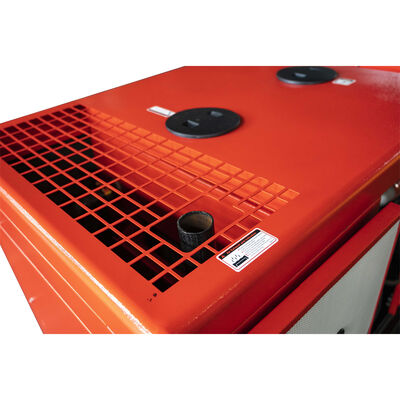

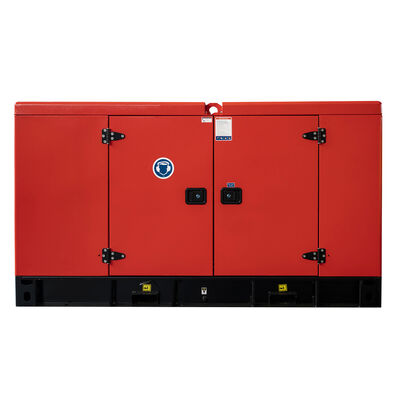

Product Gallery
