Original Engine 16kW 20KVA Three Phase Auto Start Water Cold Rated 230V Portable Silent Diesel Generators with Factory Price

Original Engine 16kW 20KVA Three Phase Auto Start Water Cold Rated 230V Portable Silent Diesel Generators with Factory Price
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 16kW , Powered By Yanmar Diesel Generator, Standby Use Power Diesel Generator 20kva
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 20kva
Engine: Original Yanmar
Cooling Method: Water-cooling System
Highlight:

20KVA silent diesel generator

,

three phase auto start generator

,

water cooled portable generator
Basic Infomation
Place of Origin: China
Brand Name: Yanmar
Certification: CE
Model Number: 4TNV84T-GGE
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

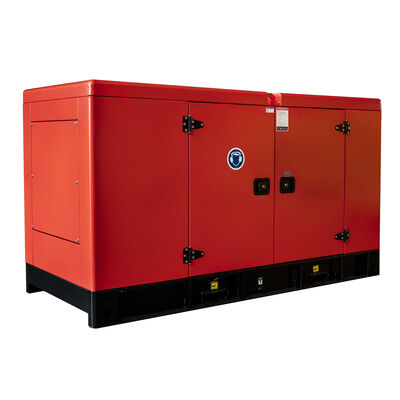

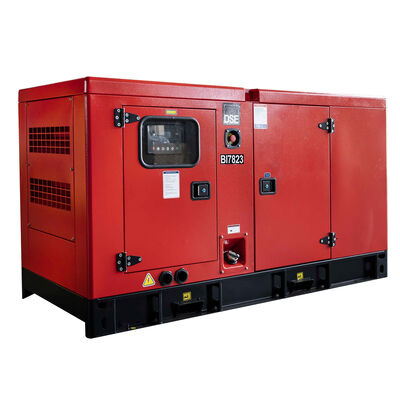

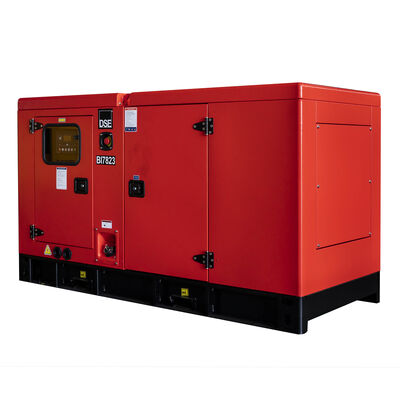

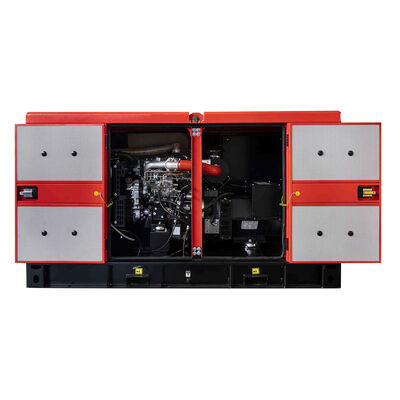

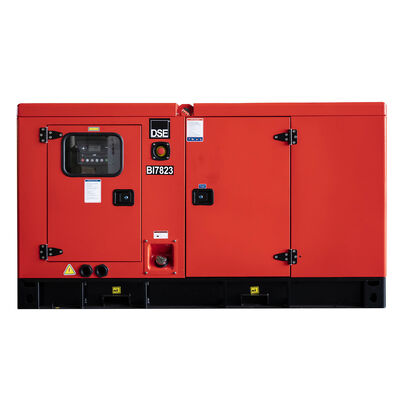

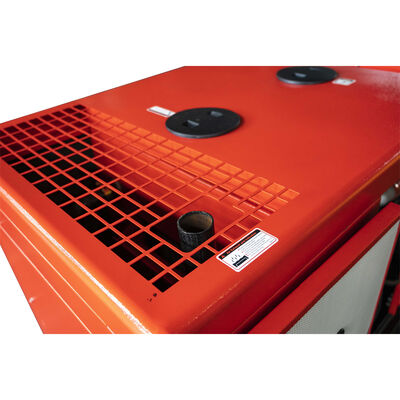

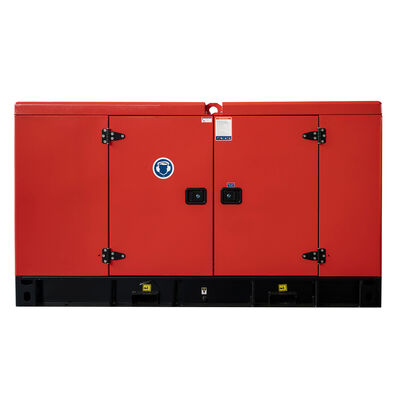

16kW 20KVA BOBIG Yanmar Diesel Generator (Model: 4TNV84T-GGE)
Product Introduction

Our 16kW 20KVA BOBIG Yanmar diesel generator (Model: 4TNV84T-GGE) is designed to provide reliable power for a wide range of applications. Backed by the renowned Yanmar brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 16kW (20KVA) - meets power needs for industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: 4TNV84T-GGE Yanmar engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
Power Ratings
General Information Prime Power Standby Power
Rated Power (kVA) 20 22
Power Rating (kW) 16 18
Frequency (Hz) 50
Engine Model 4TNV84T-GGE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BYN22 (Open Type) BYN22S (Silent Type)
Length (mm) 1400 1900
Width (mm) 610 850
Height (mm) 1150 1050
Tank Capacity (L) 37 37
Engine Specifications
Engine Model & Manufacturer 4TNV84T-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
Number of Cylinders - Bore×Stroke (mm) 4-φ84×90
Combustion System Direct Injection
Compression Ratio 18.9
Displacement (liter) 1.995
Rated Output (kW/PS) 21(28.6)/26.8(36.4)
Continuous Rating (kW/PS) 19.1(26)/24.2(32.9)
Specific Fuel Consumption (g/kW-h) 245 (at rated output)
Engine Dry Weight (kg) approx. 180
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184ES
Alternator Rated Power 16kW/20kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.

Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you customize voltage, frequency, tank capacity, phase and color?
Yes, all specifications can be customized according to customer requirements.
