20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw

1
MOQ
USD 2000-3500
Price
20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

20kva silent diesel generator

,

30kva diesel generator with warranty

,

factory direct silent diesel generator
Basic Infomation
Place of Origin: China
Brand Name: YANGDONG
Model Number: YANGDONG Y4100D
Payment & Shipping Terms
Packaging Details: 210*88*110cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description

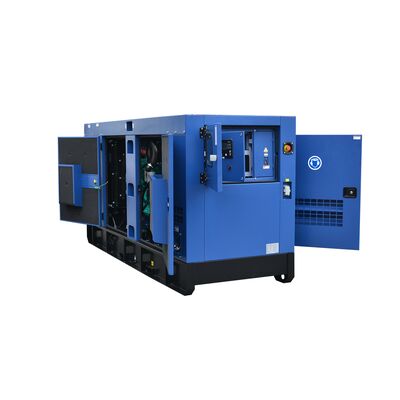

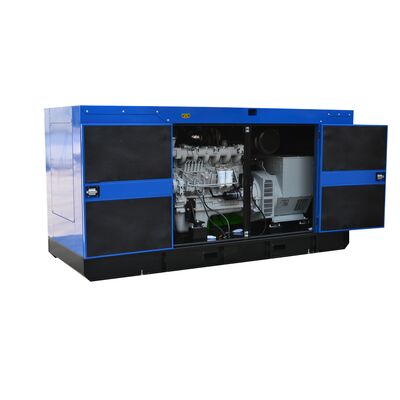

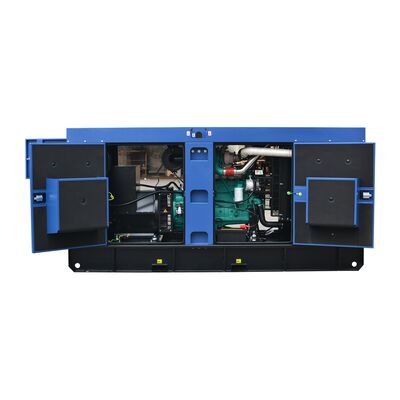

YANGDONG Y4100D Diesel Generator Set
Our YANGDONG Y4100D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 24kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw 0 20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 30 33
Power Rating (kW) 24 26
Frequency (Hz) 50
Engine Model Y4100D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation period.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BY33 (Open Type) BY33S (Silent Type)
Length (L) mm 1550 2100
Width (W) mm 610 880
Height (H) mm 1170 1100
Tank Capacity (L) 55 55
Engine Specifications
Engine Model & Manufacturer Y4100D (YANGDONG)
Number of Cylinders 4
Injection Type Direct
Aspiration Natural
Configuration Vertical
Bore 100 mm
Stroke 118 mm
Compression Ratio 18
Displacement 3.707 L
Dry Engine Weight 300 kg
Dimension (L×W×H) 892×618×718 mm
The Flywheel Shell Interface SAE3
Governed Engine Speed 1500 RPM
Continuous Power without Fans 32 kW
Standby Power 36 kW
Number of Flywheel Teeth 119
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184G
Alternator Rated Power 24kW/30kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw 2
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw 3 20kva 25kva 30kva diesel Generator YANGDONG Power Generator diesel 10kva Factory Direct Sale 10kva Silent diesel Generator 24kw 4
