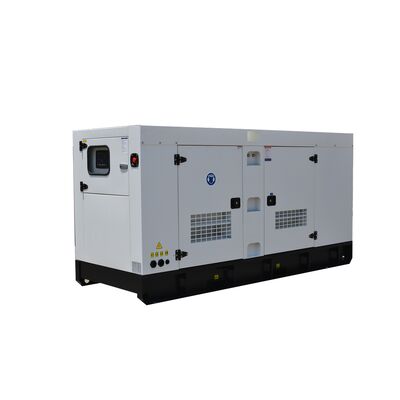

Name: Factory Price Open/Silent Type Doosan Diesel Generator 50KW/63KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: SP344CB
Price: 7,348.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Speed: 1500RPM

Frequency: 50/60HZ

Rated Power: 5KW To 2000KW

Output Type: AC Three Phase

Type: Open Or Silent(super Silent)

Color: At Your Requirement,Customized

Highlight:

Doosan silent diesel generator 50KW

water cooling diesel generator 63KVA

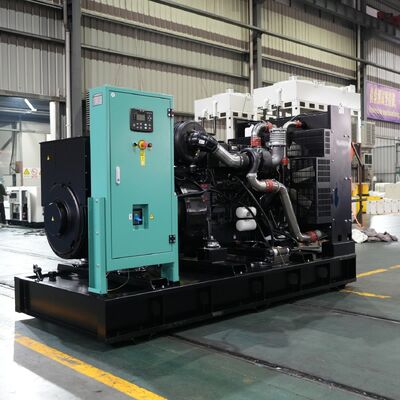

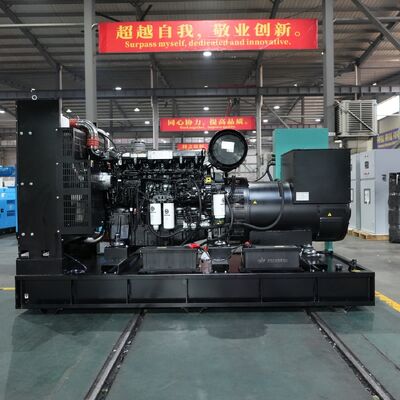

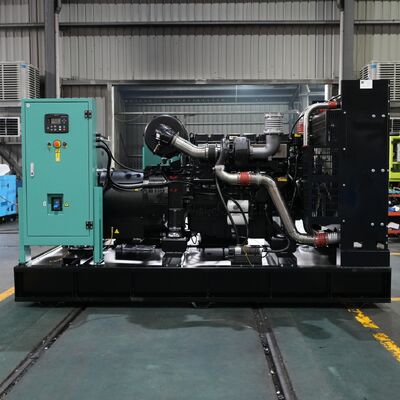

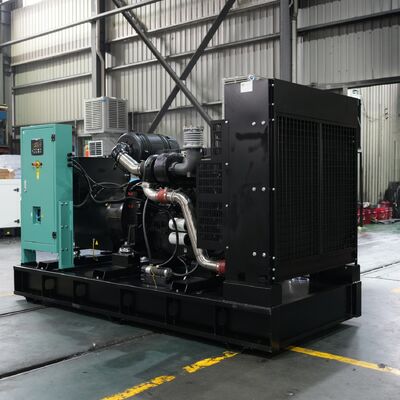

open type diesel generator with warranty

Basic Infomation

Place of Origin: CHINA

Brand Name: DOOSAN

Model Number: SP344CB

Payment & Shipping Terms

Packaging Details: plywood

Delivery Time: 20work days

Payment Terms: L/C, T/T

Supply Ability: 50sets per month

Gallery

Factory Price Open/Silent Type Doosan Diesel Generator 50KW/63KVA Power Supply Water Cooling

Product Description

Factory Price Open/Silent Type Doosan Diesel Generator 50KW/63KVA Power Supply Water Cooling

Product Overview

High quality water cooling DOOSAN diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance

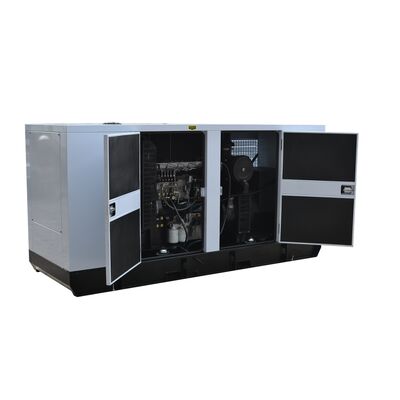

Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	63	69
Power Rating (kW)	50	55
Frequency (Hz)	50
Engine Model	SP344CB
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BDO69 (Open Type)	BDO69S (Silent Type)
Length (L) mm	2000	2500
Width (W) mm	710	930
Height (H) mm	1320	1200
Tank Capacity (L)	115	115

Note: Specifications and illustrations are subject to revision without notice.

Engine Specifications

Engine Model & Manufacturer	SP344CB (DOOSAN)
Engine Model	SP344CB
Engine Type	4-stroke, in-line 4 cylinder, water cooled, common rail direct injection
Bore x Stroke	98 × 113 mm
Displacement	3.4 liters
Compression Ratio	16.8:1
Rotation	Counter clockwise viewed from flywheel
Firing Order	1 - 3 - 4 - 2
Dry Weight	365 kg (engine only)
Dimension (LxWxH)	800 × 683 × 975 mm
Idle Speed	800 ±15 rpm
Governor Regulation	≤ 5%
Maximum Permissible High Altitude (No torque derating)	2500 m
Moment of Inertia	0.804 kg*m²
Flywheel Housing	SAE J617 #3
Flywheel	SAE J620 11.5"
Number of Teeth on Flywheel Ring Gear	125

Heavy duty diesel engine
Starter battery (with lead acid) including rack and cables
Anti-vibration mount
Flexible fuel connection hoses
Replaceable fuel filter, oil filter & air filter
Exhaust silencer and bellows
Cooling radiator and fan
Operation manuals and circuit diagram documents

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-224E
Alternator Rated Power	50kw/63kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%
