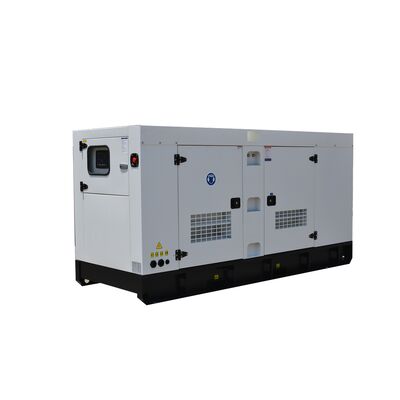

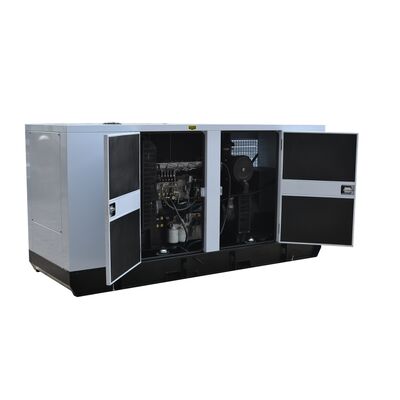

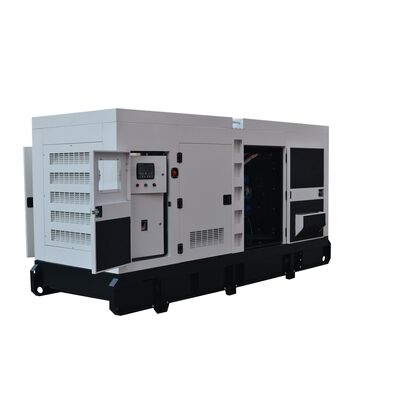

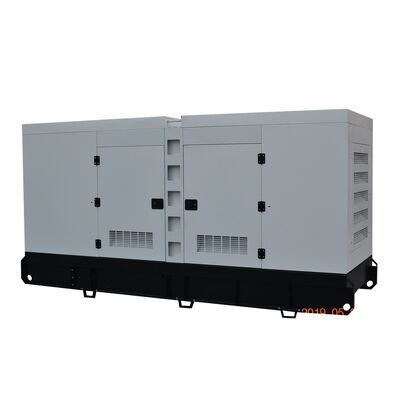

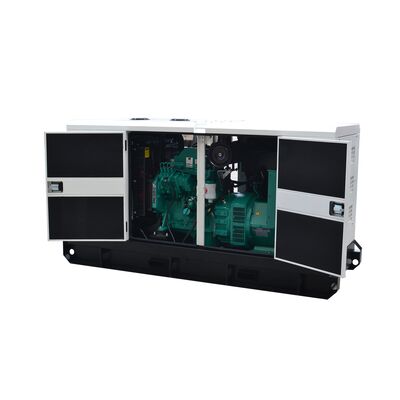

YANGDONG YD480D 12kw 15kva 13kw 17kva Water Cooled Silent Diesel Generator with DSE6120

YANGDONG Diesel Genset - Our YANGDONG YD480D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 12kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

According to customer requirements

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

• Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored & displayed simultaneously for full visibility
• The module can be configured to suit a wide range of applications for user flexibility
• PLC editor allows user configurable functions to meet user specific application requirements

• 4-line back-lit LCD text display
• Multiple display languages
• Five-key menu navigation
• LCD alarm indication
• Customisable power-up text and screen images
• DSENet® expansion compatibility
• Data logging facility
• Internal PLC editor
• Protections disable feature
• Fully configurable via PC using USB communications
• Front panel configuration with PIN protection
• Power save mode
• 3-phase generator sensing and protection
• 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
• Automatic load transfer control (DSE6120 MKIII only)
• Generator current and power monitoring (kW, kvar, kVA, pf)
• Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
• kW overload alarm
• Over current protection
• Breaker control via fascia buttons
• Fuel and start outputs configurable when using CAN
• 6 configurable DC outputs
• 4 configurable analogue/digital inputs
• Support for 0 V to 10 V & 4 mA to 20 mA sensors
• 8 configurable digital inputs
• CAN, MPU and alternator frequency speed sensing in one variant
• Real time clock
• Manual and automatic fuel pump control
• Engine pre-heat and post-heat functions
• Engine run-time scheduler
• Engine idle control for starting & stopping
• Fuel level alarms
• 3 configurable maintenance alarms
• Compatible with a wide range of CAN engines, including Tier 4 engine support
• Uses DSE Configuration Suite PC Software for simplified configuration
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress
• Configurable CAN read & transmitted information
• 1 alternative configuration
