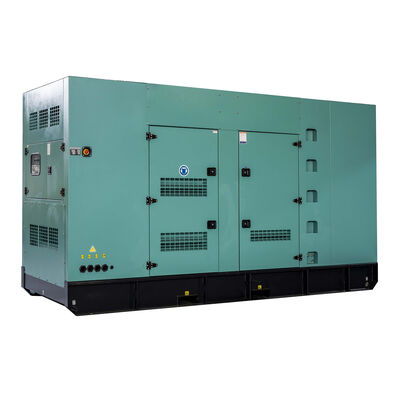

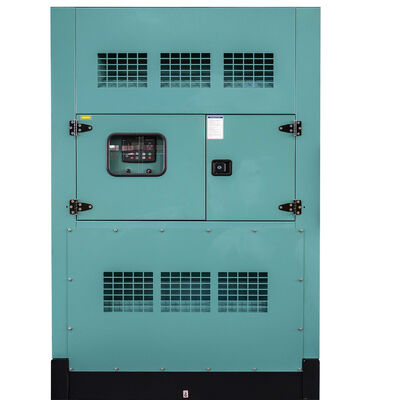

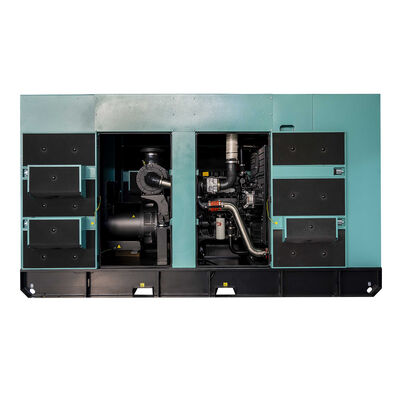

40kW 50KVA BOBIG ISUZU Diesel Generator (Model: JE493ZLDC-02)
Our 40kW 50KVA BOBIG ISUZU diesel generator (Model: JE493ZLDC-02) is designed to provide reliable power for a wide range of applications. Backed by the renowned ISUZU brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 40kW (50KVA) - meets power needs for various industrial, commercial, and residential applications
Frequency: 50Hz standard frequency suitable for most electrical equipment
Engine Excellence
Engine Model: JE493ZLDC-02 ISUZU engine with advanced technology and high-quality manufacturing
Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
50 |
55 |
| Power Rating (kW) |
40 |
44 |
| Frequency (Hz) |
50 |
| Engine Model |
JE493ZLDC-02 |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |
| Control System |
Digital |
| Rated Voltage (V) |
400/230 (customizable) |
| Fuel Tank Capacity Operating Time |
≥ 8h @ 75% load |
Dimensions and Weight
| Model |
BJL55 (Open Type) |
BJL55S (Silent Type) |
| Length (mm) |
1850 |
2500 |
| Width (mm) |
730 |
930 |
| Height (mm) |
1350 |
1200 |
| Tank Capacity (L) |
92 |
92 |
Engine Specifications
| Engine Model & Manufacturer |
JE493ZLDC-02 (ISUZU) |
| Engine Type |
Water cooling, in line, four-stroke, wet liner and direct injection |
| Number of Cylinders |
4 |
| Bore×Stroke (mm) |
93×105 |
| Aspiration |
Intercooling turbo |
| Displacement |
2.85 |
| Compression Ratio |
18.2:1 |
| Firing Order |
1-3-4-2 |
| Rated Output (Kw) |
51 |
| Maximum Power (Kw) |
56 |
| Oil Consumption Rate (g/kW.h) |
≤210 |
| Noise (dB(A)) |
≤93dB(A) |
Alternator Specifications
| Alternator Brand |
BOBIG |
| Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-224D |
| Rated Power |
40kw/50kva |
| Rated Voltage |
230v/400v |
| Protection Grade |
IP23 |
| Exciter Type |
Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class |
H class |
Environmental Adaptability
Ambient Temperature: Operates effectively in +5°C to +40°C range
Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)
Compliance Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications for quality, safety, and reliability.
Applications
- Industrial Use: Backup power for factories ensuring continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
One year or 1000 hours warranty (whichever comes first) with free spare parts for manufacturing defects. 24/7 technical support and maintenance services available.
