YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase

1
MOQ
USD 300-860
Price
YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

40kw diesel generator with warranty

,

3 phase diesel genset 50Hz

,

50kVA prime power diesel generator
Basic Infomation
Place of Origin: China
Brand Name: YUNNEI
Model Number: YUNNEI YN38DTJ50
Payment & Shipping Terms
Packaging Details: 235*93*120cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description
YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase
Product Overview

YUNNEI Diesel Generator Set. Our YUNNEI YN38DTJ50 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YUNNEI engine, this 40kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

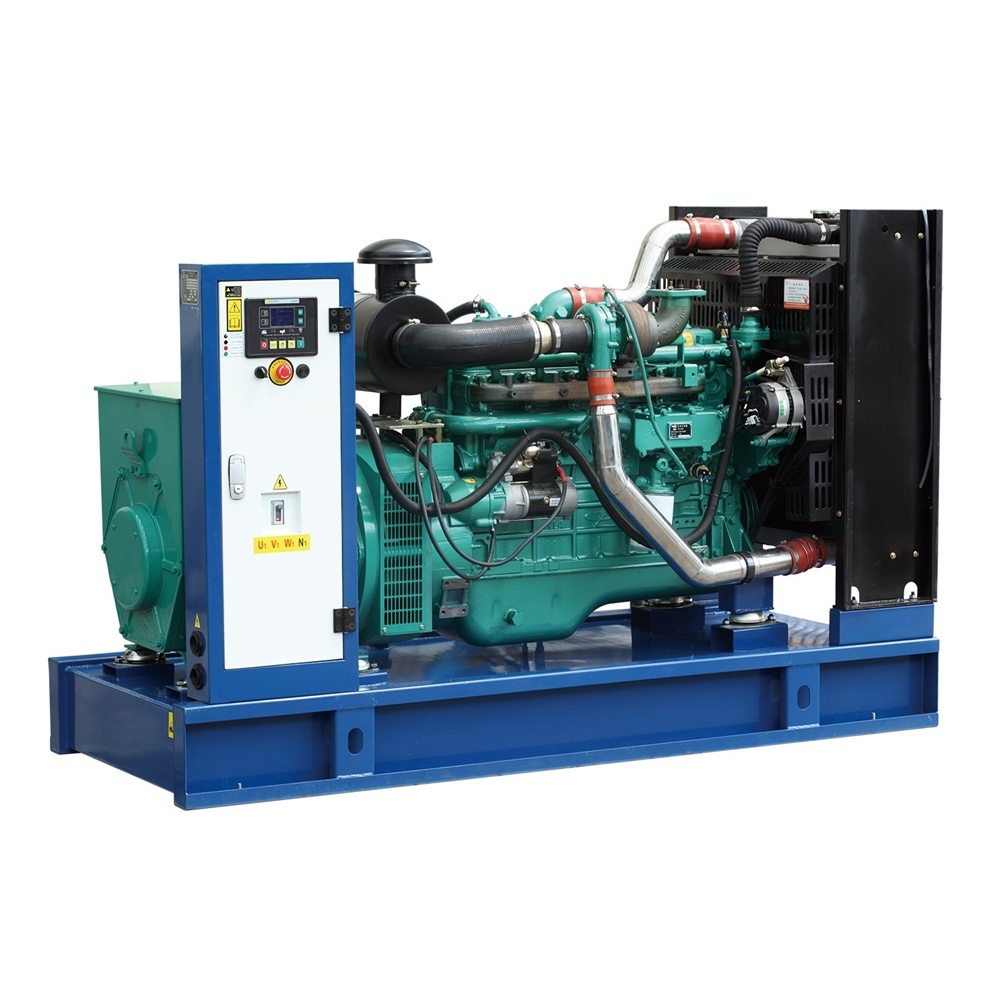

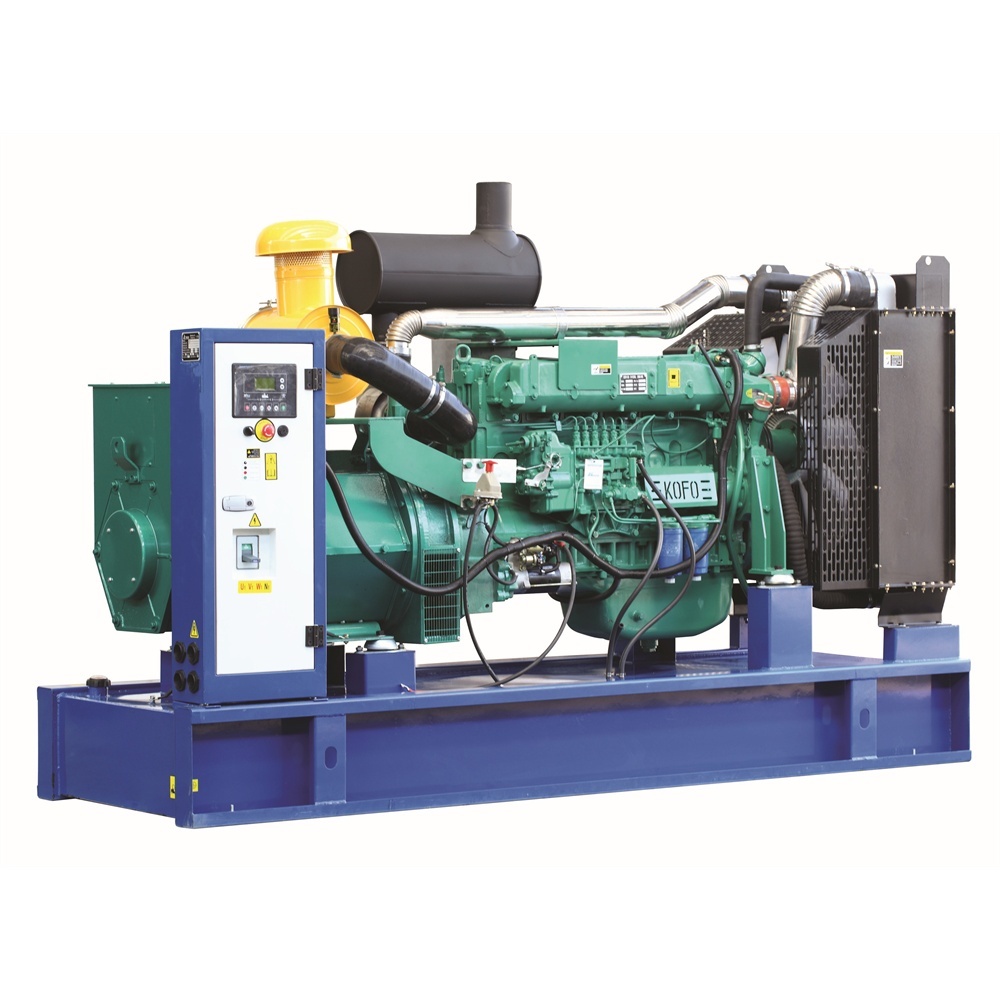

YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase 0 YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 50 55
Power Rating (kW) 40 44
Frequency (Hz) 50
Engine Model YN38DTJ50
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Power Rating Definitions

PRP (Prime Power) - Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Emergency Standby Power) - Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN55 (Open Type) BYN55S (Silent Type)
Length (L) mm 1750 2350
Width (W) mm 730 930
Height (H) mm 1350 1200
Tank Capacity (L) 92 92
Engine Specifications
Engine Model & Manufacturer YN38DTJ50 (YUNNEI)
Engine Rated Speed (rpm) 1500
Generator Set Frequency (Hz) 50
Engine Prime Power (PRP) (kW) 50
Length (L) mm 980
Width (W) mm 670
Height (H) mm 800
Engine Dry Weight w/o Cooling System (kg) 330
Aspiration Type Turbocharged
Injection Type Direct
Configuration Vertical
Number of Cylinders 4
Displacement (liters) 3.76
Bore (mm) 102
Stroke (mm) 115
Compression Ratio 17.5
Piston Speed (m/s) 6.52/7.82
Rotation Direction (from flywheel) Anti-clockwise
Number of Flywheel Teeth 130
Flywheel House Size SAE3
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224D
Alternator Rated Power 40kw/50kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements

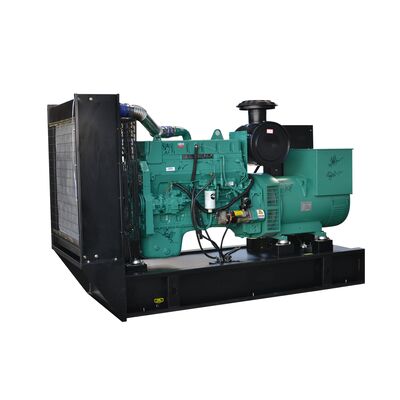

YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System
Water Jacket Preheater PMG excitation 12 / 24 hour base tank
Oil Preheater Space heater Bunded fuel tank
Oil manual pump Winding temperature measuring External fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

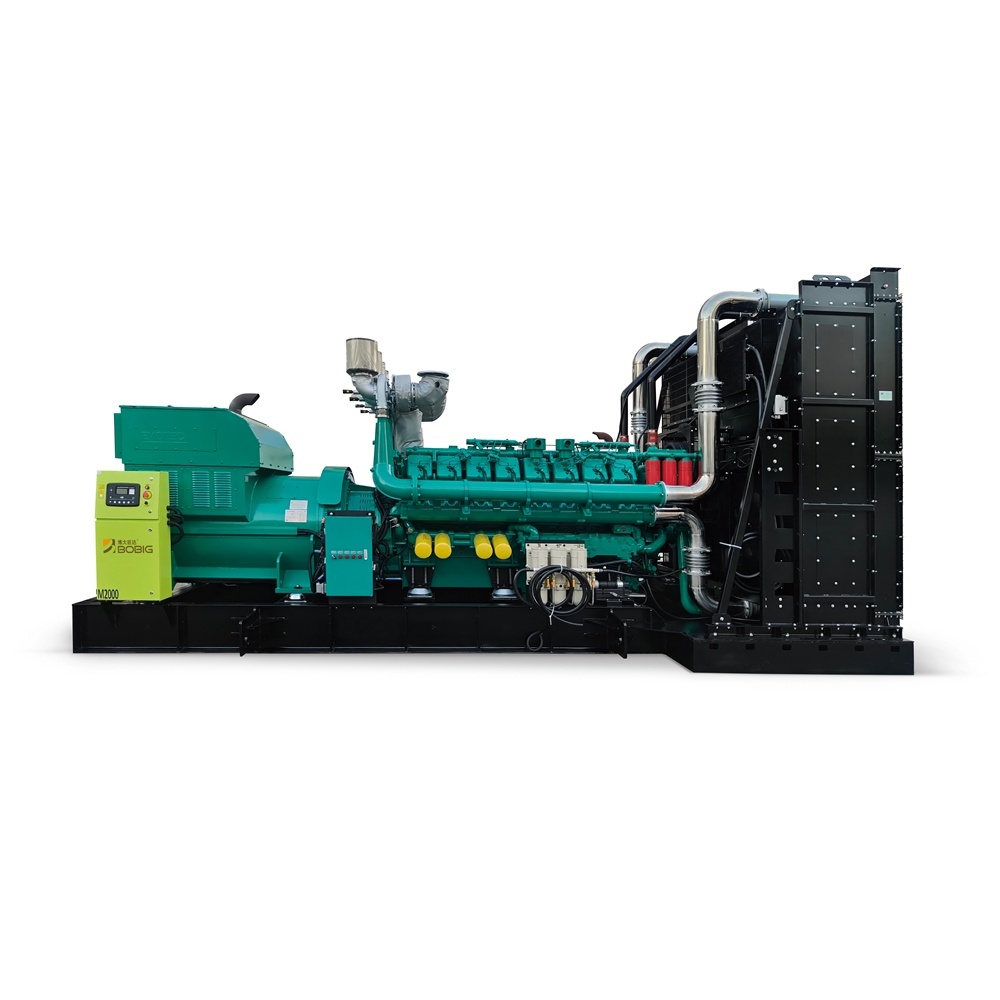

YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase 3 YUNNEI YN38DTJ50 40kw 50kVA Prime Power Diesel Genset 50Hz 3 Phase 4
