Factory Price YUNNEI YN38DNJ36 30kW Diesel Generator Set

1
MOQ
USD 300-860
Price
Factory Price YUNNEI YN38DNJ36 30kW Diesel Generator Set
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

30kW silent diesel generator

,

YN38DNJ36 diesel generator set

,

factory price diesel generator
Basic Infomation
Place of Origin: China
Brand Name: YUNNEI
Model Number: YUNNEI YN38DNJ36
Payment & Shipping Terms
Packaging Details: 215*85*115cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description
Factory Price YUNNEI YN38DNJ36 30kW Diesel Generator Set
Product Overview

YUNNEI Diesel Generator Set. Our YUNNEI YN38DNJ36 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YUNNEI engine, this 30kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Power Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)3841
Power Rating (kW)3033
Frequency (Hz)50
Engine ModelYN38DNJ36
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230
Fuel Tank Capacity Operating Time≥ 8h @ 75% load

According to customer requirements

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
ModelBYN41 (Open Type)BYN41S (Silent Type)
Length (L) mm15502150
Width (W) mm610850
Height (H) mm11701150
Tank Capacity (L)6969
Engine Specifications
Engine Model & ManufacturerYN38DNJ36 (YUNNEI)
Engine Rated Speed (rpm)1500
Generator Set Frequency (Hz)50
Engine Prime Power (PRP) (kW)36
Length (L) mm950
Width (W) mm620
Height (H) mm800
Engine Dry Weight w/o Cooling System (kg)320
Aspiration TypeNature
Injection TypeDirect
ConfigurationVertical
Number of Cylinders4
Displacement (liters)3.76
Bore (mm)102
Stroke (mm)115
Compression Ratio17.5
Piston Speed (m/s)6.52/7.82
Rotation Direction (from flywheel)Anti-clockwise
Number of Flywheel Teeth130
Flywheel House SizeSAE3
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-184H
Alternator Rated Power30kW/38kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%

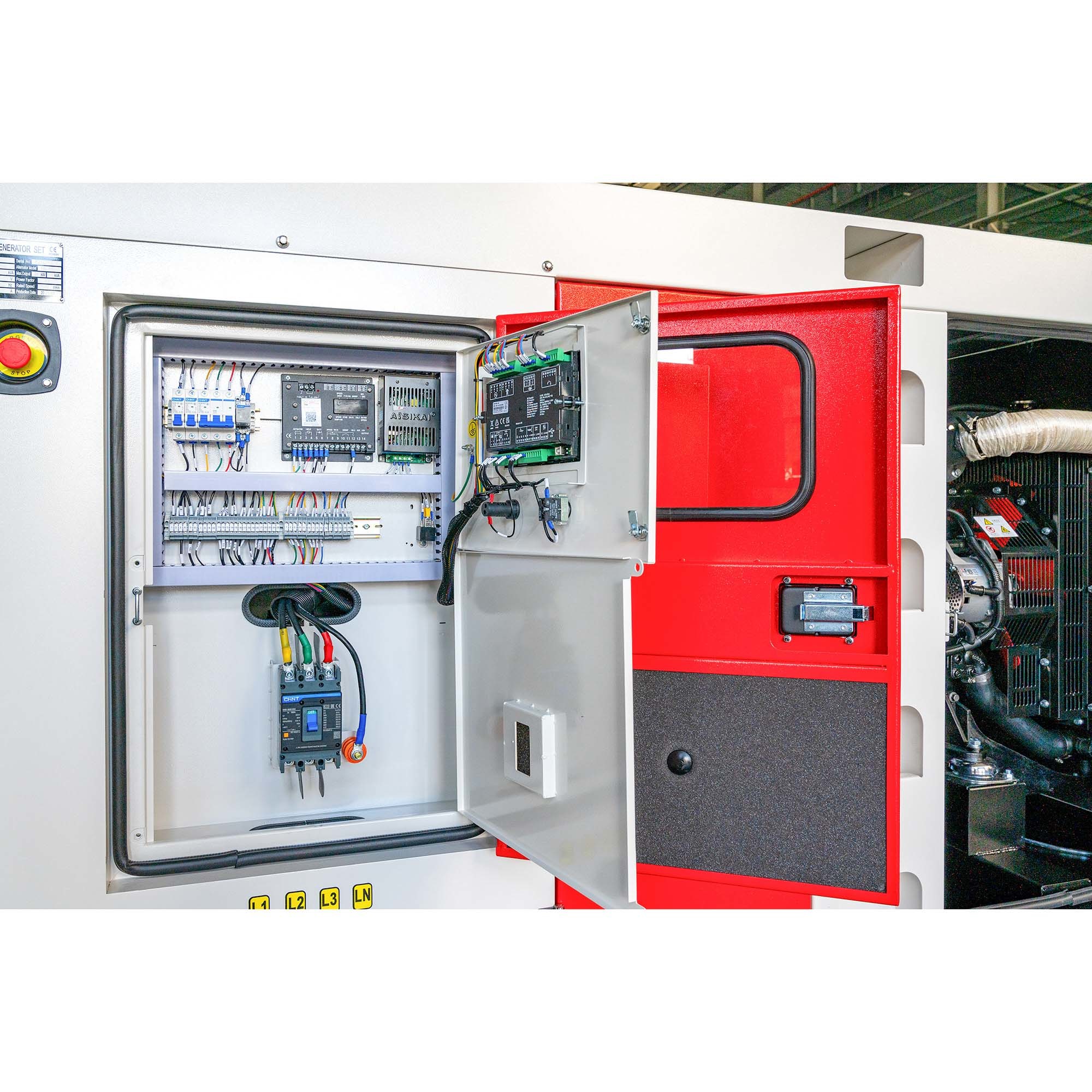

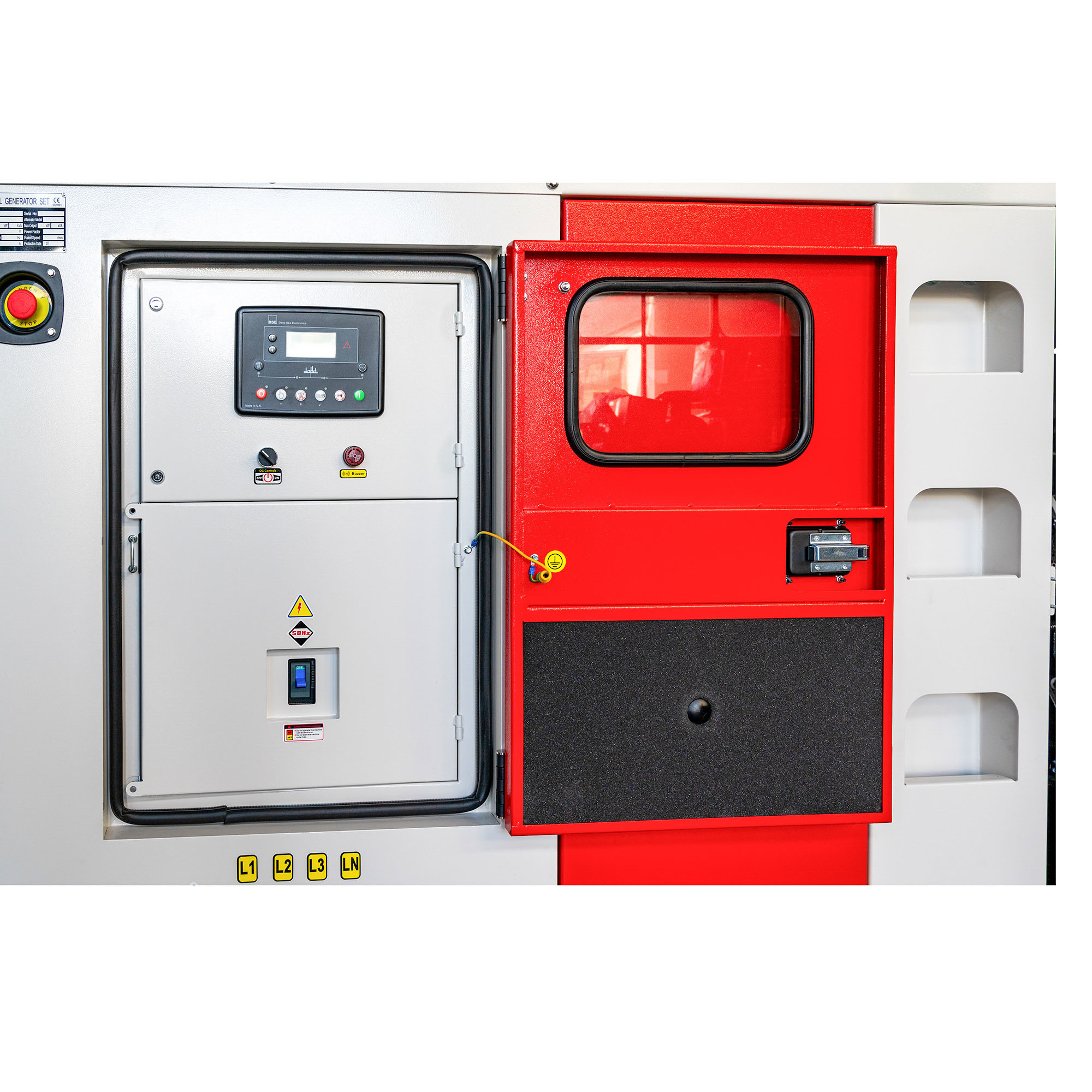

Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Factory Price YUNNEI YN38DNJ36 30kW Diesel Generator Set 0
Available Options
EngineAlternatorFuel System
Water Jacket PreheaterPMG excitation12 / 24 hour base tank
Oil PreheaterSpace heaterBunded fuel tank
Oil manual pumpWinding temperature measuringExternal fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

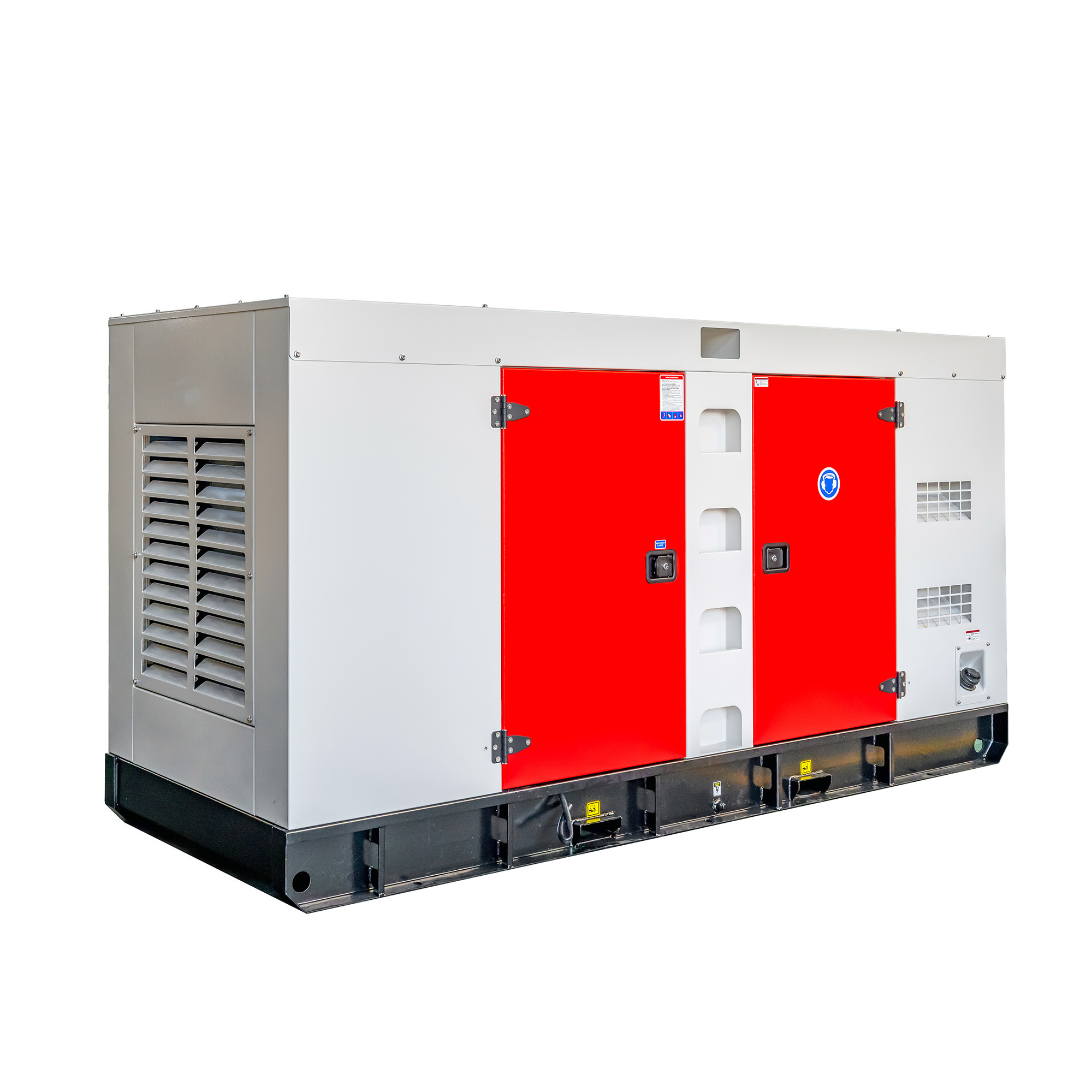

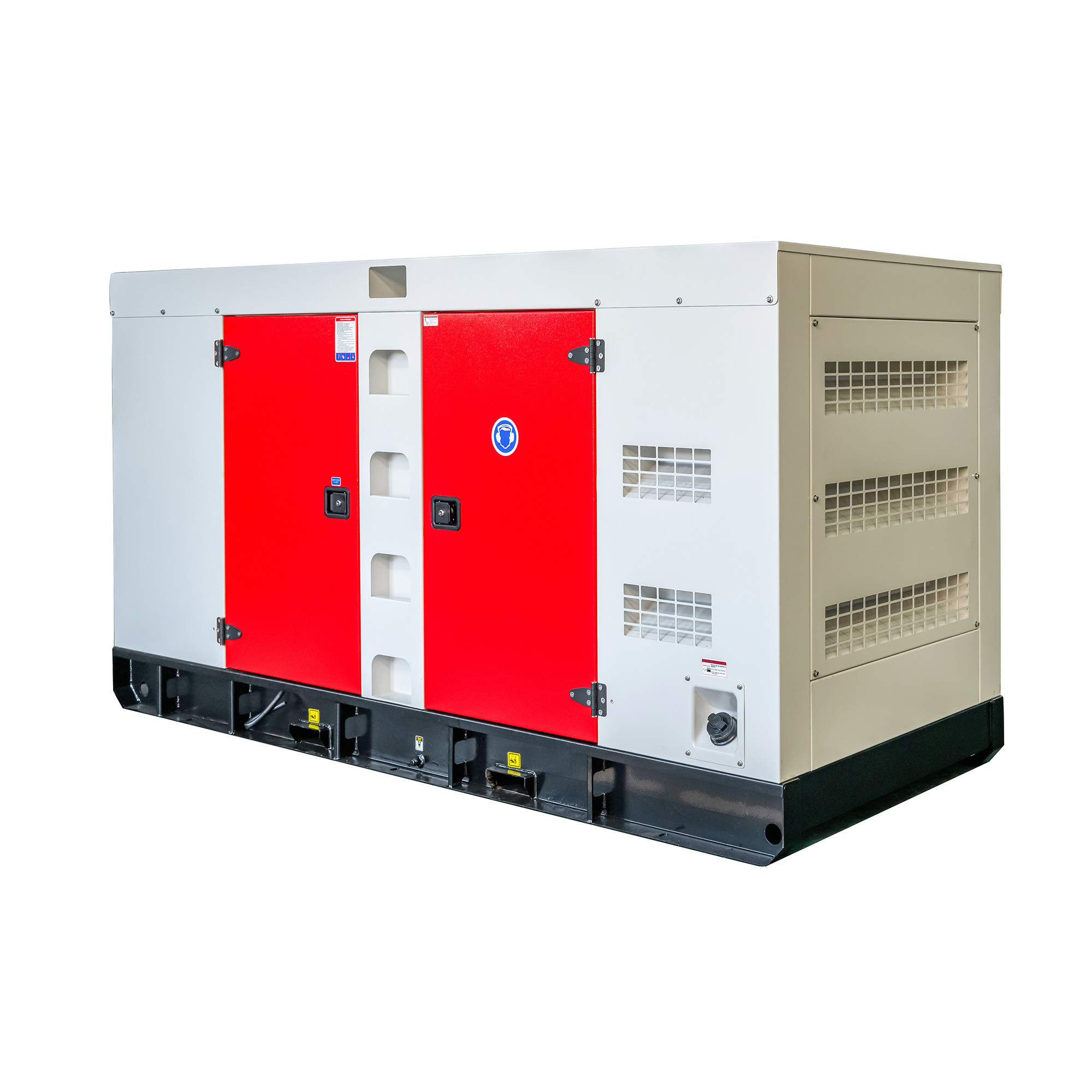

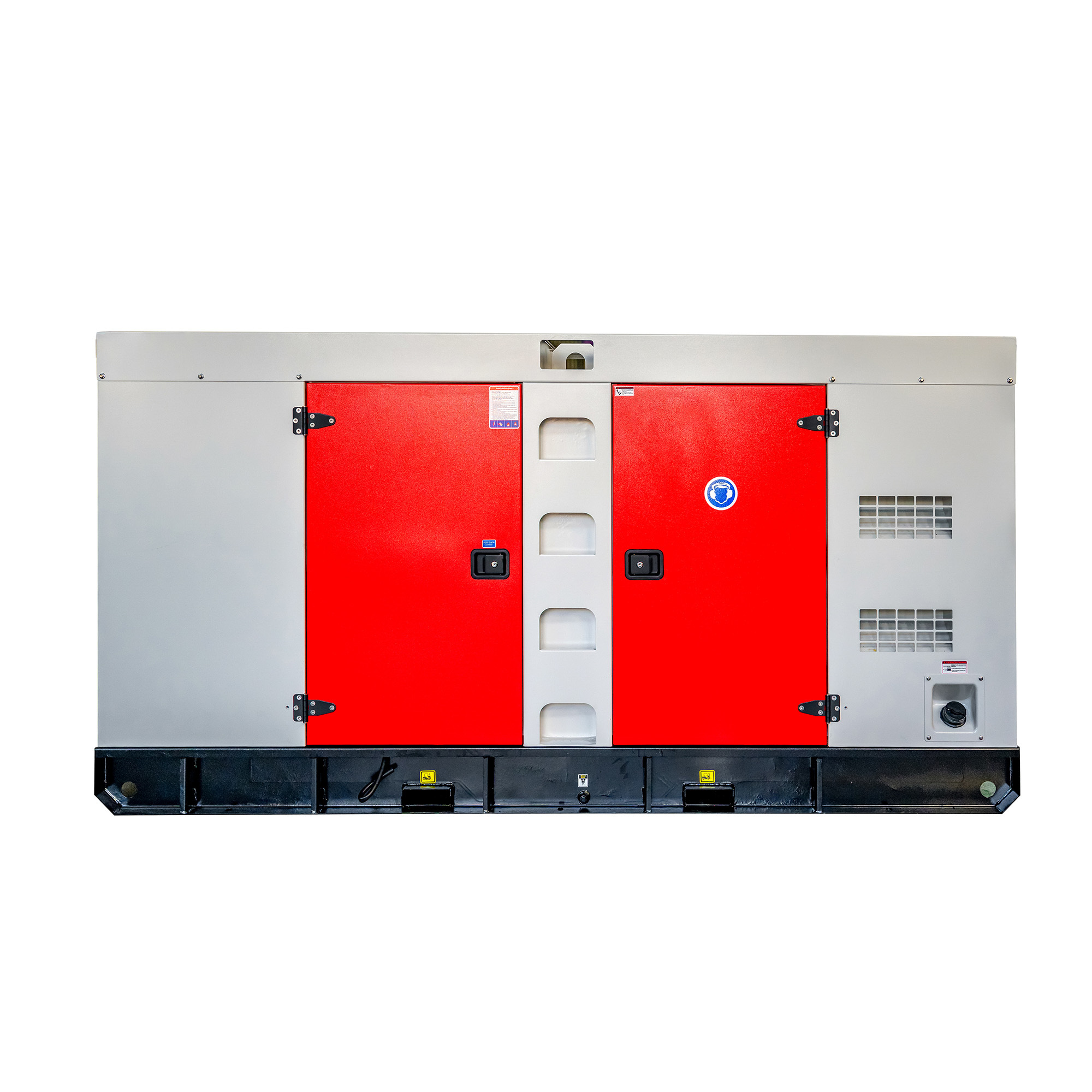

Product Images
Factory Price YUNNEI YN38DNJ36 30kW Diesel Generator Set 1Factory Price YUNNEI YN38DNJ36 30kW Diesel Generator Set 2
