50Hz/60Hz Super Silent YTO Diesel Generator 75kw Generator Water Cooling 94kva Diesel Soundproof Water Cooled Generators
Product Overview
Our 75kW 94KVA BOBIG YTO diesel generator (Model: LR4M3L-D) is designed to provide reliable power for a wide range of applications. Backed by the YTO brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
With a rated power of 75kW (94KVA), this generator meets the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: The generator operates at a standard frequency of 50Hz, suitable for most electrical equipment.
Engine Excellence

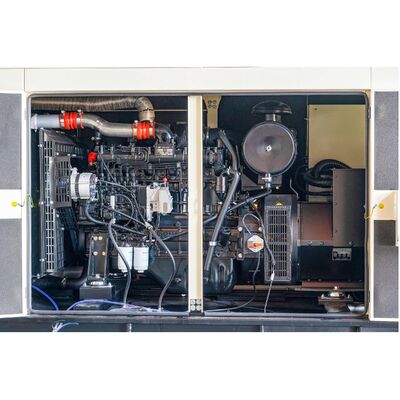

Powered by the LR4M3L-D YTO engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.
Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear.
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
94 |
103 |
| Power Rating (kW) |
75 |
83 |
| Frequency (Hz) |
50 |
| Engine Model |
LR4M3L-D |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |
| Control System |
Digital |
| Rated Voltage (V) |
400/230 (According to customer requirements) |
| Fuel Tank Capacity Operating Time |
≥ 8h @ 75% load |
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Specifications
| Engine Model & Manufacturer |
LR4M3L-D (YTO) |
| Engine Model |
LR4M3L-D |
| No. of Cylinders |
4 |
| Cylinder Arrangement |
In-line |
| Cycle |
4 stroke, compression ignition |
| Method of Air Aspiration |
Turbocharged with Aftercooler |
| Cooling Medium |
Liquid |
| Bore |
110 mm |
| Stroke |
125 mm |
| Compression Ratio |
17.0:1 |
| Cubic Capacity |
4.75 L |
| Dry Engine Weight |
450 kg |
| Dimension (L*W*H) |
986*1146*713 |
| Direction of Rotation |
Anti-clockwise viewed on flywheel |
| Governed Engine Speed |
1500 |
| Firing Order |
1-3-4-2 (1cyl furthest from flywheel) |
Alternator Specifications
| Alternator Brand |
BOBIG |
| Alternator Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-274C |
| Alternator Rated Power |
75kw/94kva |
| Rated Voltage (V) |
230v/400v |
| Rated Frequency |
50hz |
| Connecting Type |
3 Phase and 4 W |
| Number of Bearing |
1 |
| Protection Grade |
IP23 |
| Altitude |
≤1000m |
| Exciter Type |
Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class |
H class |
| Telephone Influence Factor (TIF) |
≤50 |
| THF |
≤2% |
| Voltage Regulation, Steady State |
≤±1% |
| Transient State Voltage |
≤-15%~+20% |
| Specific Fuel Consumption |
≤ 202g / kw.h |
Dimensions and Weight
| Model |
BYT103 (Open type) |
BYT103S (Silent type) |
| Length (L) mm |
2200 |
2650 |
| Width (W) mm |
800 |
1040 |
| Height (H) mm |
1500 |
1400 |
| Tank Capacity (L) |
173 |
173 |
Product Superiority
Applications
- Industrial Use: Backup power source for factories, ensuring continuous production during power outages
- Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services like lighting, elevators, and security systems
- Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we provide cost-based spare parts maintenance.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Why Choose Us
- Brand Reputation: YTO is a well-known and trusted brand in the diesel generator industry
- Quality Assurance: Products manufactured in strict accordance with international standards with rigorous quality inspections
- Customization Options: Customized solutions based on your specific requirements
Packaging & Shipping
Plywood case packaging. Delivery time: 10-15 working days after receiving customer deposit.
Company Information
We are an electrical machinery manufacturer specializing in technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more.
Our company has obtained ISO9000 Quality System Certification and maintains strict quality control standards.
Factory Overview
Workshop
Equipment
Production
Testing
Packaging
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set. Payment method is usually 30% T/T as deposit, 70% balance T/T before delivery. Alternatively, we accept 100% L/C, trade assurance, PayPal, Western Union. Delivery period is normally 10-15 working days after receiving customer deposit.
Which port do you often use when exporting?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts you can provide along with generators for maintenance?
We can provide regular engine's air filter, water filter, fuel filter, and oil filter to customers for self-maintenance.
Can you offer parts to us if we need?
Yes, we can offer parts at any time, not limited to warranty period. Usually parts can be shipped within 3-5 days.
Can voltage, frequency, tank capacity, phase and color be customized?
Yes, all specifications can be customized according to your needs.
What is your distribution policy?
We welcome distributors worldwide. We can issue authority certificates and sign agreements accordingly.
