Yanmar Intelligent Power Genset 45kW 56KVA Silent Diesel Generator Set
Product Overview
Our 45kW 56KVA BOBIG Yanmar diesel generator (Model: 4TNV106T-GGE) is designed to provide reliable power for a wide range of applications. Backed by the renowned Yanmar brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
- Rated Power: 45kW (56KVA) - meets power needs for industrial, commercial, and residential applications
- Frequency: 50Hz standard frequency suitable for most electrical equipment
- Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
- Engine Model: 4TNV106T-GGE Yanmar engine
- Engine Speed: 1500 RPM for smooth, consistent power supply
- Features: High torque, fuel efficiency, and low emissions
Technical Specifications
Power Ratings
| General Information | Prime Power | Standby Power |
|---|
| Rated Power (kVA) | 56 | 62 |
| Power Rating (kW) | 45 | 50 |
| Frequency (Hz) | 50 |
| Engine Model | 4TNV106T-GGE |
| Engine Speed (RPM) | 1500 |
| Phase | 3 |
| PF | 0.8 |

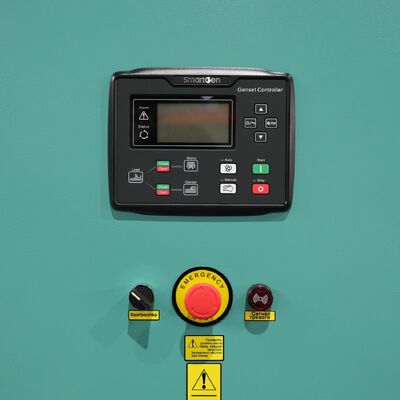

| Control System | Digital |
| Rated Voltage (V) | 400/230 (customizable) |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load |
Dimensions and Weight
| Model Type | BYN62 (Open) | BYN62S (Silent) |
|---|
| Length (mm) | 2000 | 2500 |
| Width (mm) | 710 | 930 |
| Height (mm) | 1320 | 1200 |
| Tank Capacity (L) | 104 | 104 |
Engine Details
| Engine Model & Manufacturer | 4TNV106T-GGE (YANMAR) |
| Engine Type | 4 cycle, Inline, Water-cooled Diesel |
| No. of Cylinders - Bore×Stroke (mm) | 4-φ106×125 |
| Combustion System | Direct Injection |
| Compression Ratio | 18 |
| Displacement (liter) | 4.412 |
| Rated Output (kW/PS) | 56(76.1)/66.9(91) |
| Continuous Rating (kW/PS) | 50.9(69.2)/60.9(82.8) |
| Specific Fuel Consumption (g/kW-h) | 220.4(162) at rated output |
Alternator Specifications
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224E |
| Alternator Rated Power | 45kw/56kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 Wire |
| Protection Grade | IP23 |
| Insulation Class | H class |
Environmental Adaptability
- Ambient Temperature: +5°C to +40°C operating range
- Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)
Compliance Standards
Our generator complies with multiple international and national standards, including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Applications
- Industrial Use: Backup power source for factories ensuring continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of easy-damageable spare parts caused by production or material quality issues. Our professional after-sales service team is available 24/7 for technical support, maintenance, and repairs.
Why Choose Our Generators
- Brand Reputation: Yanmar is a trusted brand with a long history of quality products
- Quality Assurance: Manufactured to international standards with rigorous quality inspections
- Customization Options: Tailored solutions based on your specific requirements
Company Information
We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more. Our company holds ISO9000 Quality System Certification and maintains advanced testing equipment to ensure product quality.
Factory & Facilities
Factory Exterior
Manufacturing Facility
Workshop Interior
Assembly Line
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Which port do you often use when export?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts you can provide along with generators?
We provide regular engine air filter, water filter, fuel filter, and oil filter for customer self-maintenance.
Can you offer parts to us if we need?
Yes, we can provide parts at any time (not limited to warranty period), usually shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase and color?
Yes, all specifications can be customized according to your requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
