Home /Products/Yangdong Diesel Generator/72KW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 90KVA

72KW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 90KVA

72KW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 90KVA
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Diesel Genertor, Generator 72KW , Powered By YANGDONG Diesel Generator, Standby Use Power Diesel Generator 90KVA
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 72KW
Engine: Original YANGDONG
Cooling Method: Water-cooling System
Highlight:

72KW silent diesel generator

,

water cooled diesel generator

,

auto start diesel generator
Basic Infomation
Place of Origin: China
Brand Name: YANGDONG
Certification: CE
Model Number: YD4GZLD
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

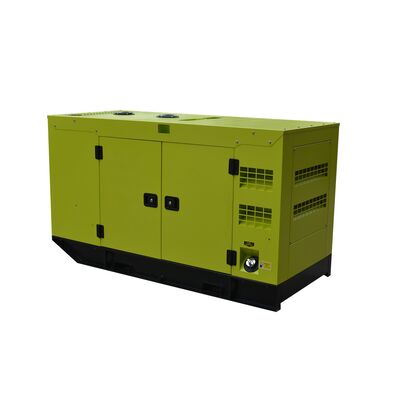

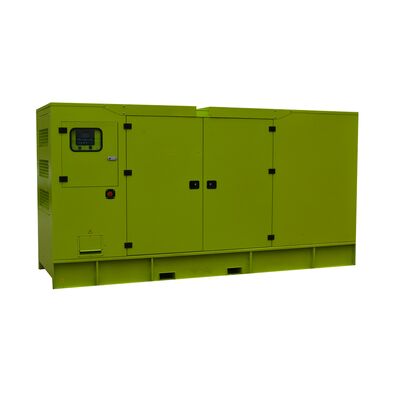

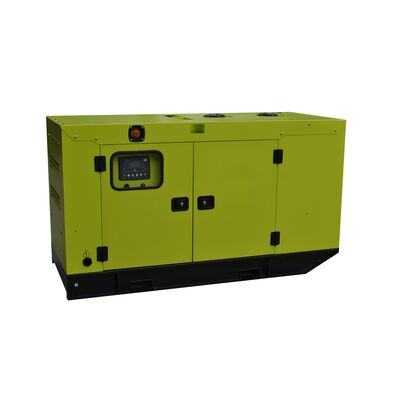

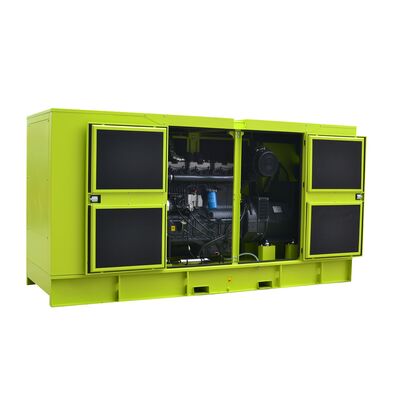

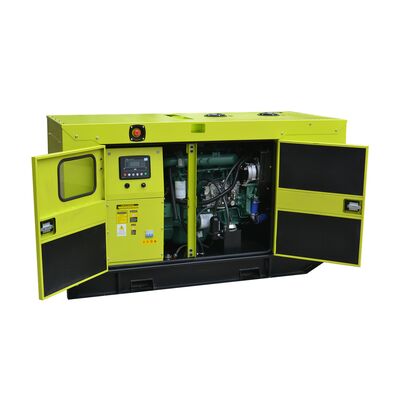

72KW Silent Diesel Generator with Digital Panel Water Cooled System
Product Overview

Our 72kW 90KVA BOBIG YANGDONG diesel generator (Model: YD4GZLD) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 72kW (90KVA) for various industrial, commercial, and residential applications
  • Stable prime power output ensuring continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: YD4GZLD YANGDONG engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 90 99
Power Rating (kW) 72 79
Frequency (Hz) 50
Engine Model YD4GZLD
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Details Specifications
Engine Model & Manufacturer YD4GZLD (YANGDONG)
Number of Cylinders 4
Injection Type Direct
Aspiration Turbocharged
Configuration Vertical
Bore 110 mm
Stroke 118 mm
Compression Ratio 18
Displacement 4.3 L
Dry Engine Weight 370 kg
Dimension (L*W*H) 892*618*740 mm
Alternator Specifications Details
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274G
Alternator Rated Power 72kW/90kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Insulation Class H class
Dimension and Weight Open Type (BY99) Silent Type (BY99S)
Length (L) mm 1950 2600
Width (W) mm 730 930
Height (H) mm 1350 1220
Tank Capacity (L) 166 166
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Quality & Certifications

Our generator complies with multiple international standards including:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification
Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.

Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.

Which port do you use for export?

Fuzhou port, Fujian province or as customer request.

Can you provide spare parts for maintenance?

Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
