YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set

1
MOQ
USD 300-860
Price
YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

10kW water cooled diesel generator

,

13kVA silent diesel generator

,

YN25ANJ18 diesel generator set
Basic Infomation
Place of Origin: China
Brand Name: YUNNEI
Model Number: YUNNEI YN25ANJ18
Payment & Shipping Terms
Packaging Details: 185*88*1103cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description
YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set

Our YUNNEI YN25ANJ18 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YUNNEI engine, this 10kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

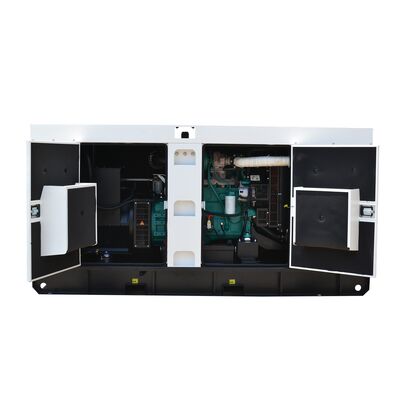

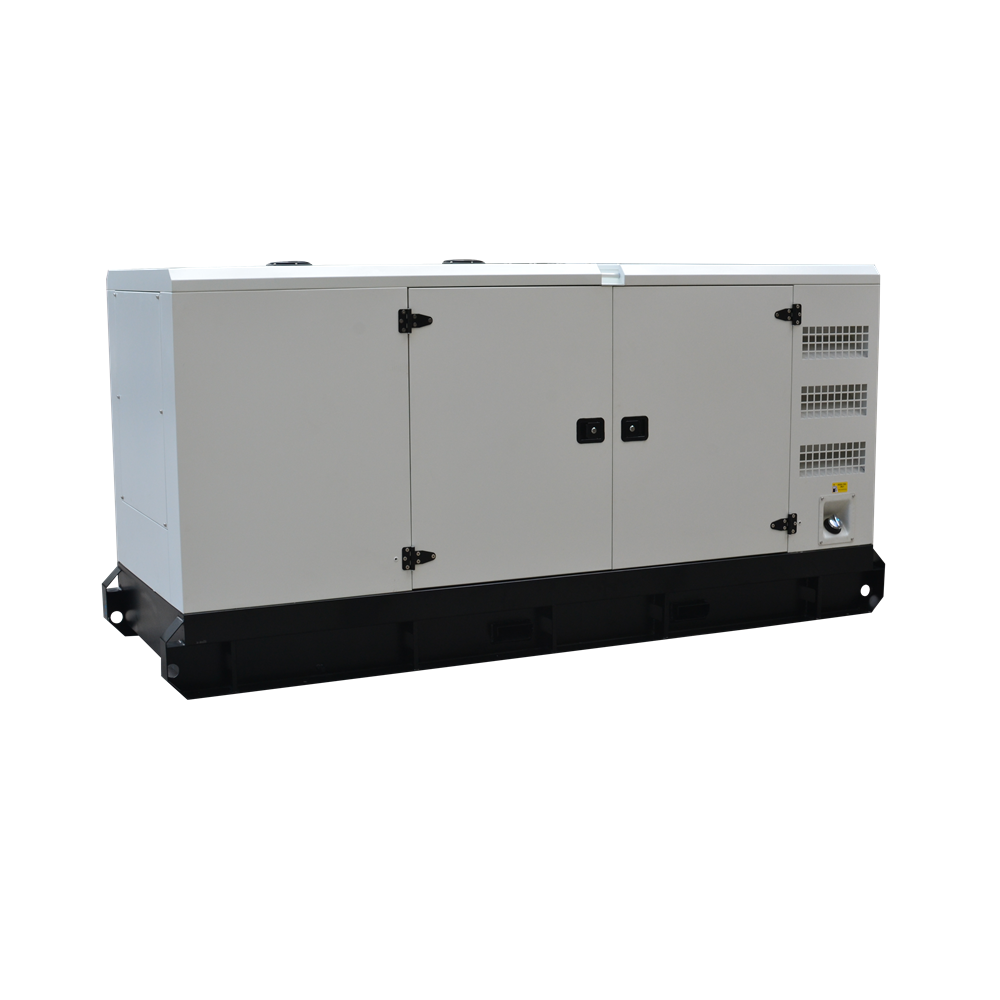

YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set 0YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set 1
General Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)1314
Power Rating (kW)1011
Frequency (Hz)50
Engine ModelYN25ANJ18
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230
(According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load

PRP - Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP - The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
ModelBYN14 (Open Type)BYN14S (Silent Type)
Length (L) mm13501850
Width (W) mm665880
Height (H) mm9651030
Tank Capacity (L)2323
Engine Specifications
Engine Model & ManufacturerYN25ANJ18 (YUNNEI)
Engine ModelYN25ANJ18
Engine Rated Speed (rpm)1500
Generator Set Frequency (Hz)50
Engine Prime Power (PRP) (kW)18
Length (L) mm900
Width (W) mm540
Height (H) mm760
Engine Dry Weight w/o Cooling System (kg)200
Aspiration TypeNature
Injection TypeDirect
ConfigurationVertical
No. of Cylinders4
Displacement (liters)2.54
Bore (mm)90
Stroke (mm)100
Compression Ratio17.5
Piston Speed (m/s)5.0/6.0
Rotation Direction (from flywheel)Anti-clockwise
Number of Flywheel Teeth109
Flywheel House SizeSAE4
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-164C
Alternator Rated Power10kW/13kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%
Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements

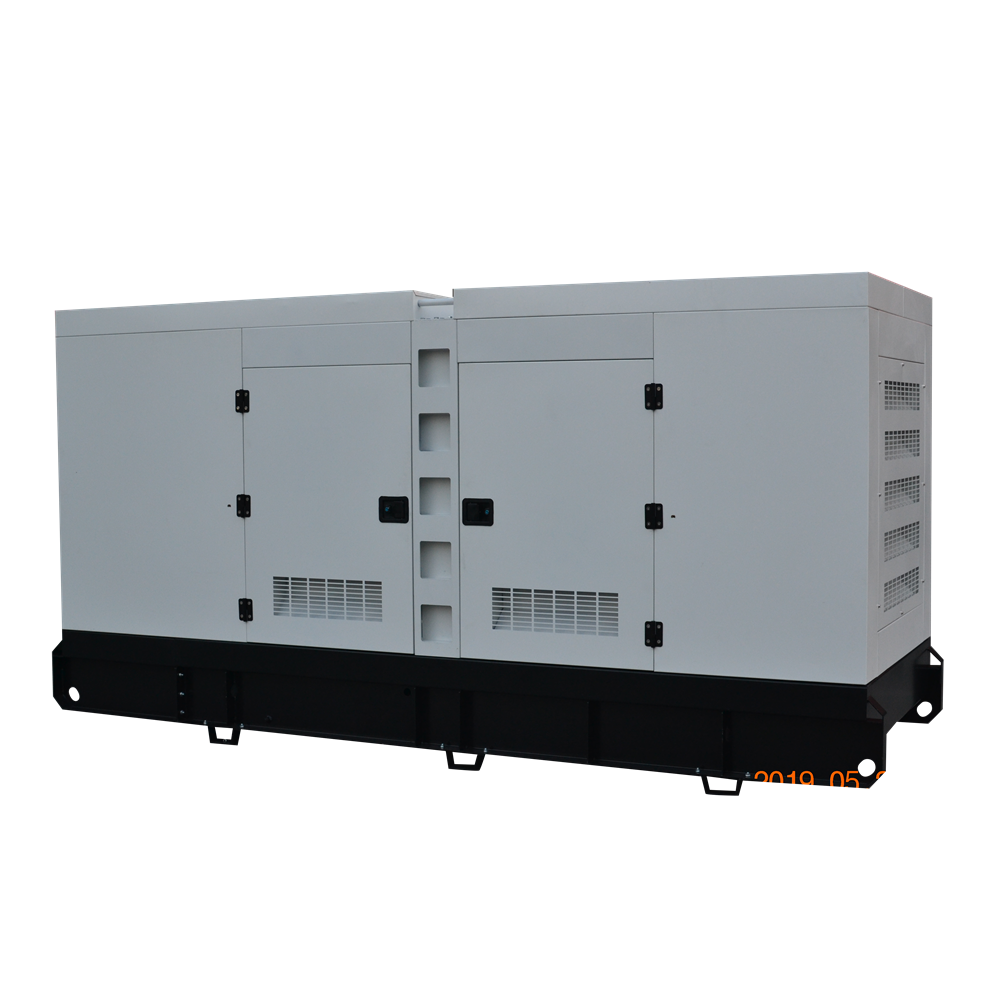

YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
EngineAlternatorFuel System
Water Jacket PreheaterPMG excitation12 / 24 hour base tank
Oil PreheaterSpace heaterBunded fuel tank
Oil manual pumpWinding temperature measuringExternal fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

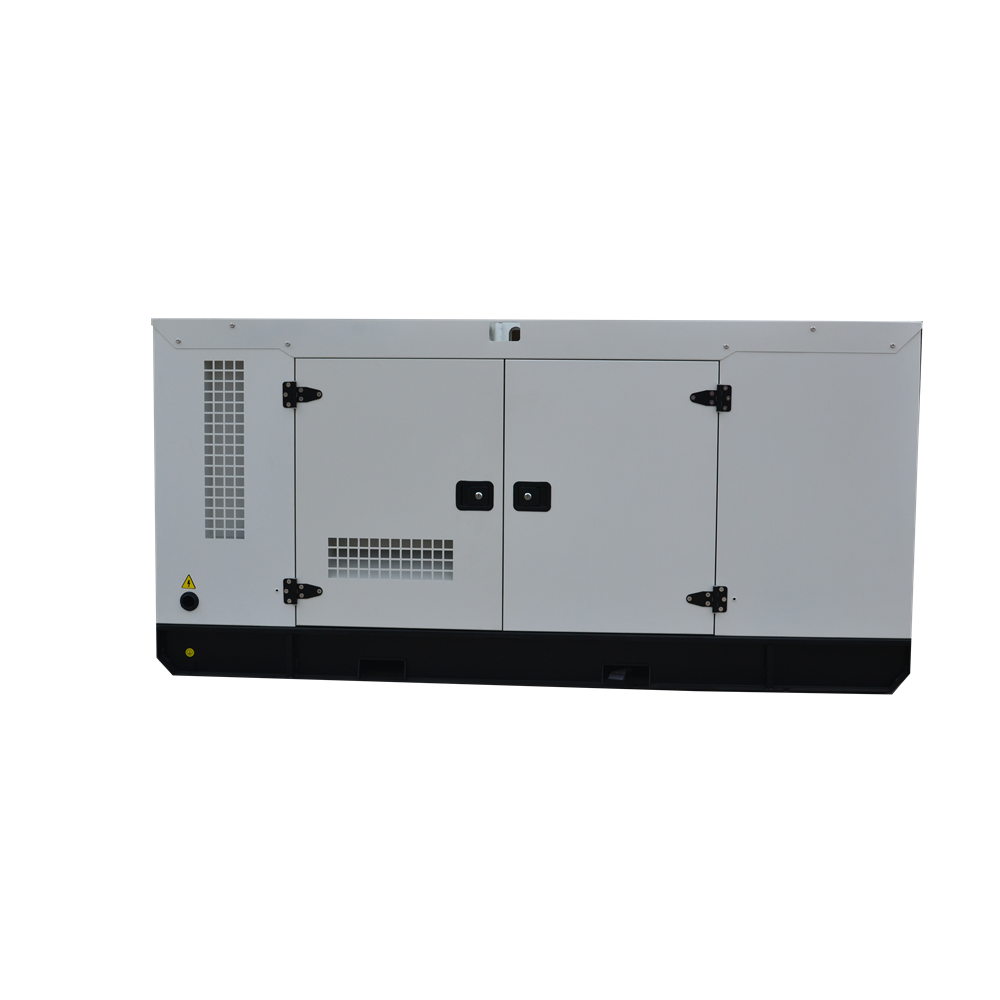

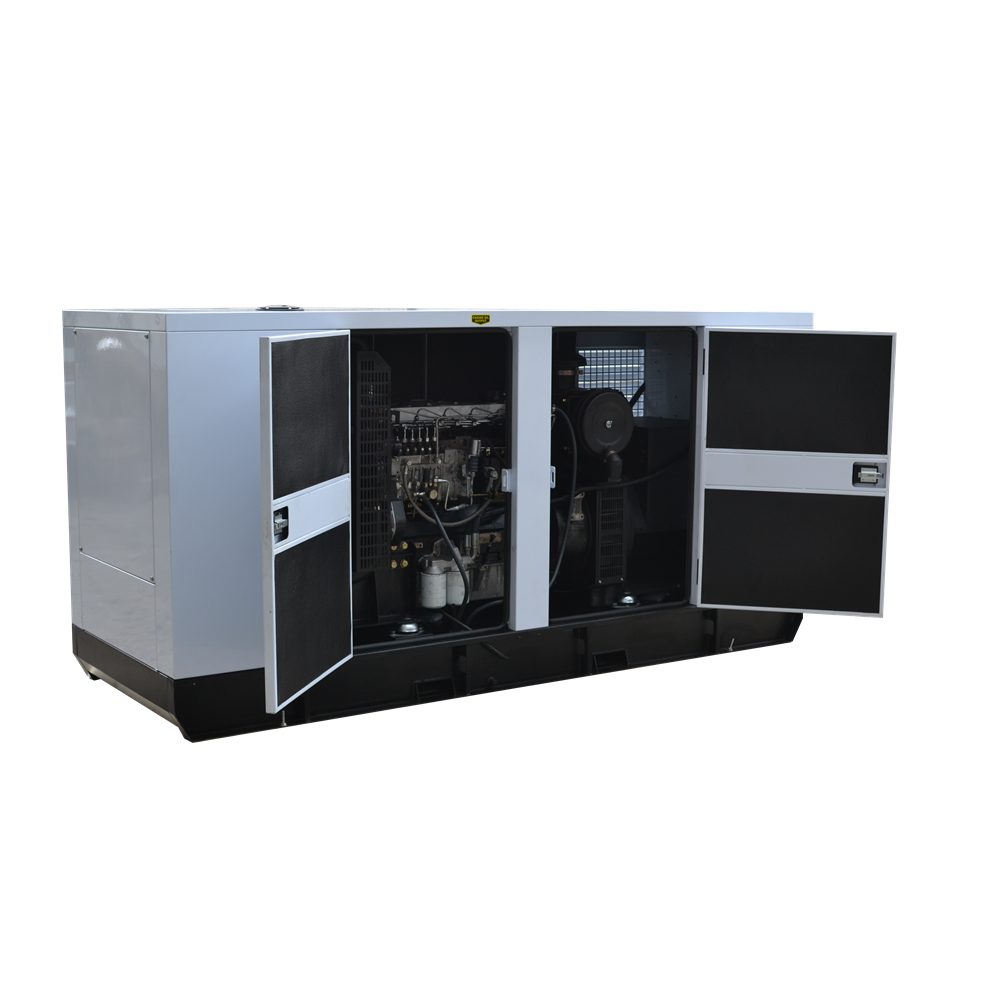

YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set 3YUNNEI YN25ANJ18 10kW 13kVA Water Cooled Diesel Generator Set 4
