Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site

1
MOQ
USD 300-860
Price
Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Portable Yanmar diesel generator

,

40kVA construction site generator

,

Yanmar 4tnv98t-Gge generator
Basic Infomation
Place of Origin: China
Brand Name: YANMAR
Model Number: YANMAR 4TNV98T-GGE
Payment & Shipping Terms
Packaging Details: 220*85*107cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description

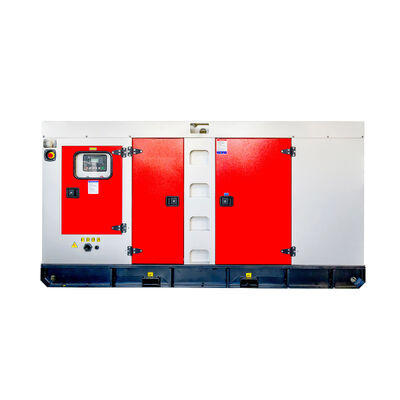

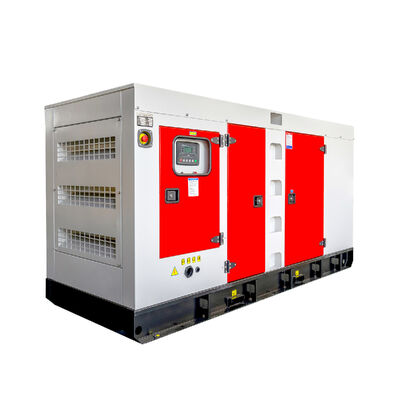

Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site
Our YANMAR 4TNV98T-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANMAR engine, this 32kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site 0 Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site 1
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 40 44
Power Rating (kW) 32 35
Frequency (Hz) 50
Engine Model 4TNV98T-GGE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP ● Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP ● The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BYN44 (Open Type) BYN44S (Silent Type)
Length (L) mm 1800 2200
Width (W) mm 710 850
Height (H) mm 1170 1070
Tank Capacity (L) 74 74
Engine Specifications
Engine Model & Manufacturer 4TNV98T-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore × Stroke (mm) 4-φ98×110
Combustion System Direct Injection
Compression Ratio 18.1
Displacement (liter) 3.319
Rated Output kW(PS)/min⁻¹ 41.4(56.3)/1500 - 50.1(68.1)/1800
Continuous Rating kW(PS)/min⁻¹ 37.7(51.3)/1500 - 45.3(61.6)/1800
Specific Fuel Consumption g/kW-h(g/PS-h) 222(164) (at rated output)
Ambient Condition 25℃, 750mmHg, 30%
Engine Dry Weight (kg) approx. 258
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184J
Alternator Rated Power 32kw/40kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class

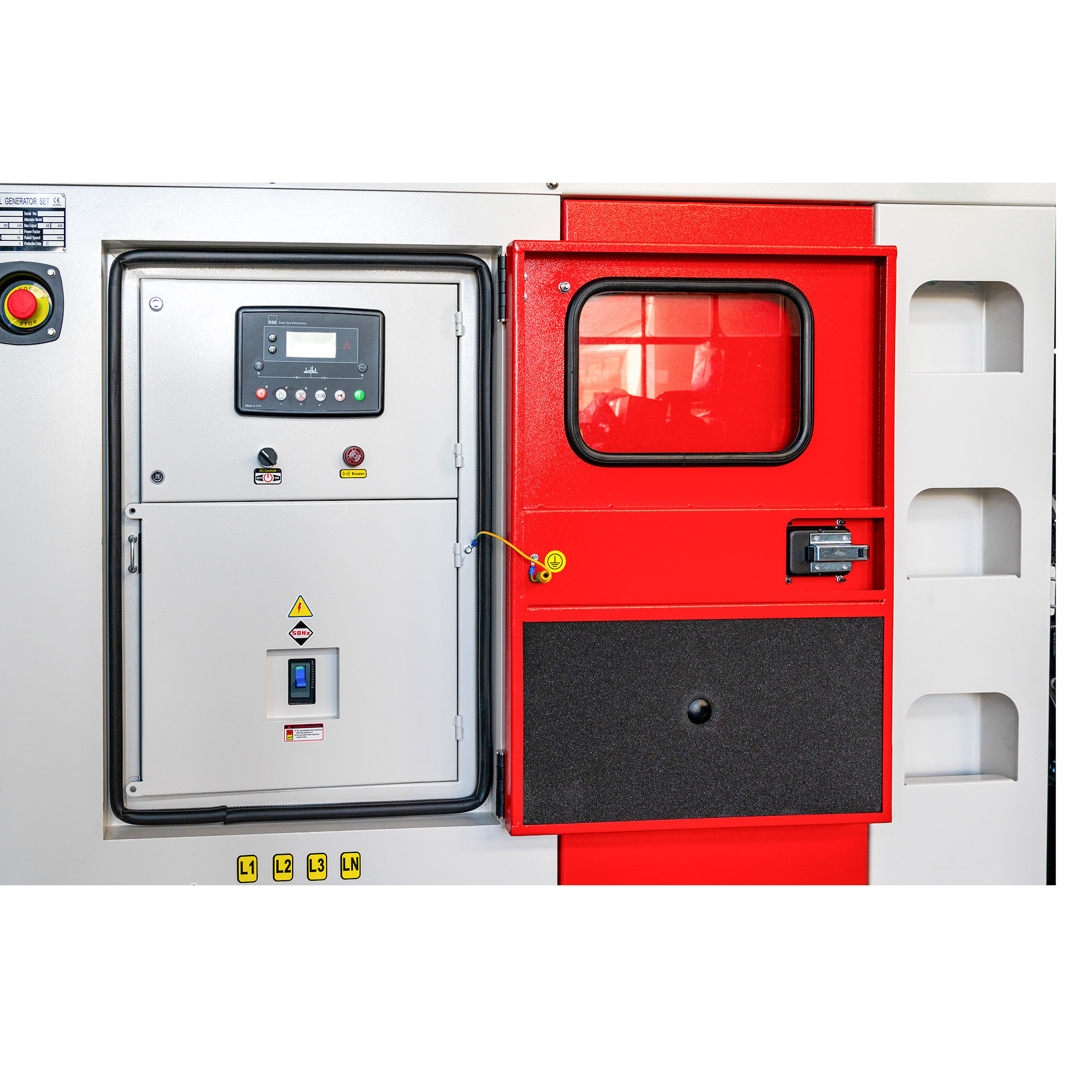

Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site 2
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System
Water Jacket Preheater PMG excitation 12 / 24 hour base tank
Oil Preheater Space heater Bunded fuel tank
Oil manual pump Winding temperature measuring External fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site 3 Portable YANMAR 4tnv98t-Gge 40kVA Diesel Generator for Construction Site 4
