Home /Products/Yanmar Diesel Generators/Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator

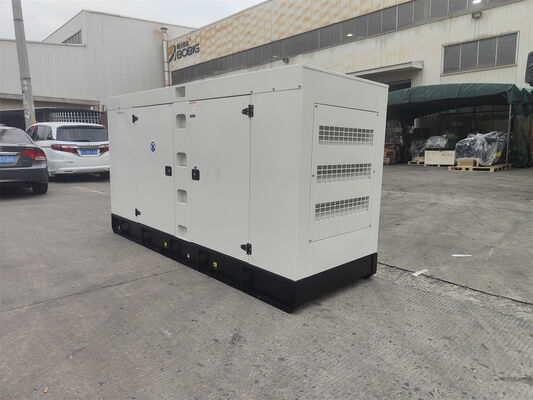

Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator

1
MOQ
USD 300-860
Price
Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Yanmar 3TNV82A diesel generator

,

8kw prime power generator

,

10kwa diesel generator with warranty
Basic Infomation
Place of Origin: China
Brand Name: YANMAR
Model Number: YANMAR 3TNV82A-GGE
Payment & Shipping Terms
Packaging Details: 175*85*103cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description
Yanmar 3TNV82A-GGE 8kw 10kva Prime Power Diesel Generator
YANMAR Diesel Generator Set

Our BOBIG 3TNV82A-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned BOBIG engine, this 8kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator 0 Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 10 11
Power Rating (kW) 8 9
Frequency (Hz) 50
Engine Model 3TNV82A-GGE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BYN11 (Open Type) BYN11S (Silent Type)
Length (L) mm 1400 1750
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 18 18
Engine Specifications
Engine Model & Manufacturer 3TNV82A-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore × Stroke (mm) 3 - φ82 × 84
Combustion System Direct Injection
Compression Ratio 19.2
Displacement (liter) 1.331
Rated Output kW(PS)/min⁻¹ 11(15)/13.2(17.9) at 1500/1800
Continuous Rating kW(PS)/min⁻¹ 9.9(13.5)/12(16.3) at 1500/1800
Specific Fuel Consumption 245 g/kW-h (180 g/PS-h) at rated output
Engine Speed at No Load (min⁻¹) Max: 1925(+25/-25), Min: 1200(+25/-25)
Governor Type Centrifugal-all speed governor
Firing Order 1-3-2-1 (order from F.W.)
Direction of Rotation Counterclockwise (viewed from F.W.)
Engine Dry Weight (kg) Approx. 128
Fuel Injection Timing (deg) 18.5 FIT b.T.D.C
Fuel Type Diesel Oil
Fuel Injection Pump Distributor type (YPD-MP2), Yanmar made
Fuel Injection Nozzle Hole type
Fuel Filter Paper element
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164B
Alternator Rated Power 8kw/10kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

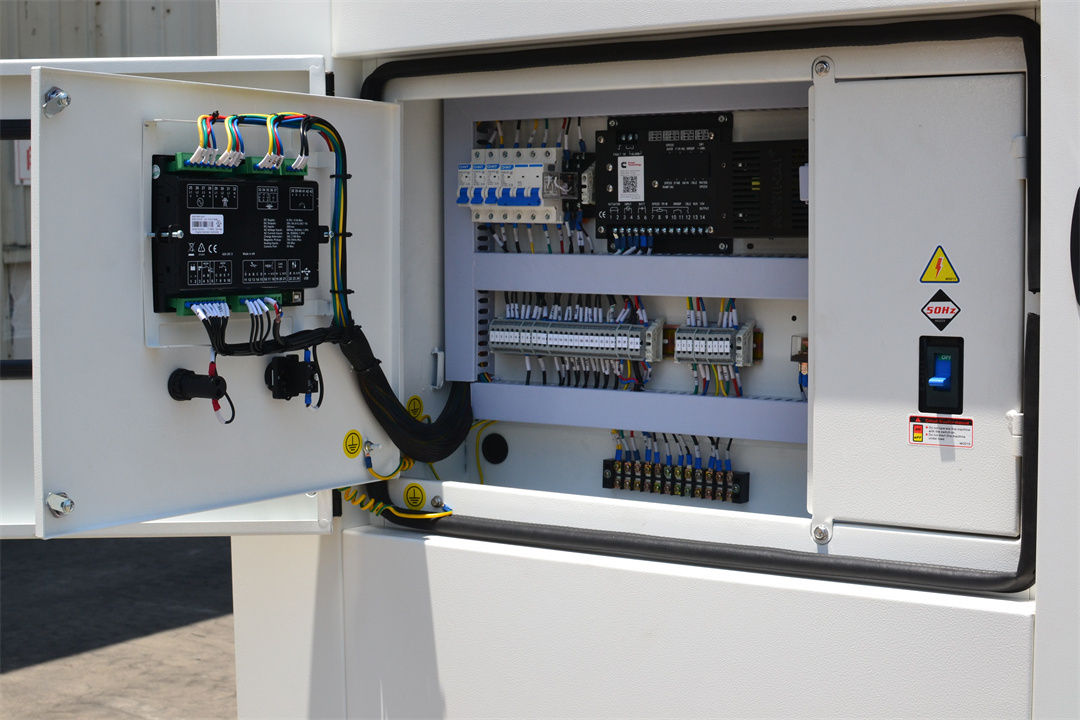

Control Panel - DSE 6120
Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator 2
Auto Start and Auto Mains Failure Control Module
(Alternator frequency & CAN speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
Additional Features
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator 3 Yanmar 3TNV82A-GGE 8kw 10kwa Prime Power Diesel Generator 4
