5kw 6kva Electric Yanmar Diesel Generators With Engine 3TNM68-GGE/HGE

1 set
5kw 6kva Electric Yanmar Diesel Generators With  Engine 3TNM68-GGE/HGE
Features Gallery Product Description Request A Quote
Canopy: Customized
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Warranty: 12 Months/1000 Hours
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Product Name: Diesel Genertor, Generator 250kw, Powered By Cummins Diesel Generator, Standby Use Power Diesel Generator 1000kw
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 30kva 24KW
Output Type: AC Single/Three Phase
Engine: Original Yanmar
Controller: Deepsea/Smartgen/ Comap
Cooling Method: Water-cooling System
Application: Indursty Bank Building Hotel Factory Etc
Fuel Tank: 8-24H,Base Fuel Tank/External FueL Tank
Options: ATS,ABB/ATS/Container/Trailer,Soundproof Canopy
Rated Current: 13A
High Light:

3TNM68-GGE/HGE Yanmar Diesel Generators


6kva Yanmar Diesel Generators


5kw yanmar electric generator

Basic Infomation
Place of Origin: China
Brand Name: Yanmar
Certification: CE
Model Number: BYN7S
Payment & Shipping Terms
Packaging Details: Plywood or bubble wrap
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

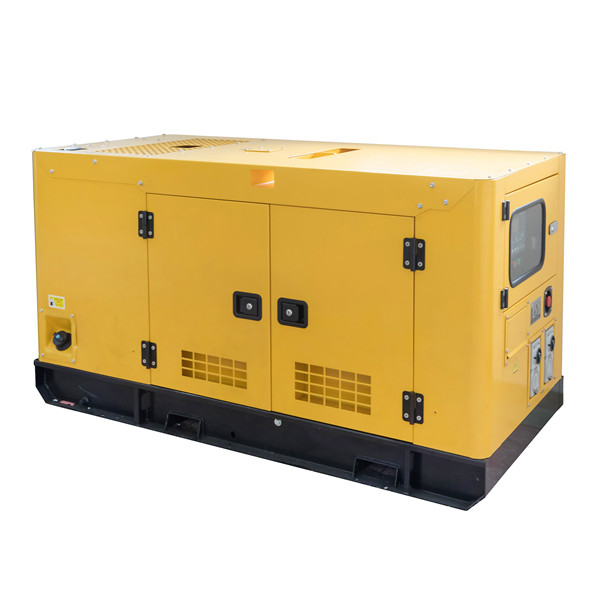

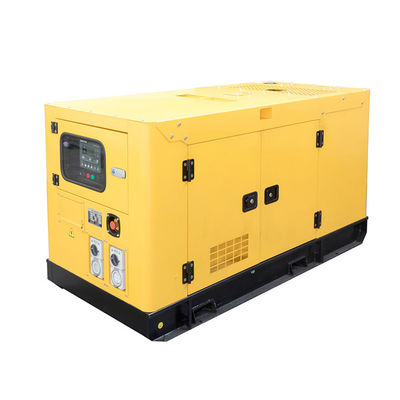

 Yanmar  5kw  6kva  diesel generator set  powered by original engine 3TNM68-GGE/HGE

Products Features:
1.We cooperate with famous diesel engine Powered by original Yanmar engine.
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25

Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.


Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.


Gensets   Technical Data of Diesel Engine(50hz/1500rpm) Alternator(50hz/1500rpm) Size
Model Gensets power(KW/KVA) Engine
Engine power(kw) BOBIG Open type (MM) sounproof type (MM)
Prime Standby Prime
BYN7S 5 6 6 7 3TNM68-GGE/HGE 6.1 BW-164A 1400*610*1130 1750*850*1030
BYN8S 6 8 7 8 3TNV76-GGE 9 BW-164A 1400*610*1130 1750*850*1030
BYN11S 8 10 9 11 3TNV82A-GGE 11 BW-164B 1400*610*1130 1750*850*1030
BYN14S 10 13 11 14 3TNV88-GGE 13.2 BW-164C 1400*610*1130 1750*850*1030
BYN17S 12 15 13 17 3TNV84T-GGE 15 BW-164D 1400*610*1130 1850*850*1030
BYN22S 16 20 18 22 4TNV84T-GGE 19.3 BW-184ES 1400*610*1150 1900*850*1050
BYN33S 24 30 26 33 4TNV98-GGE 29 BW-184G 1550*610*1220 2100*850*1070
BYN41S 30 38 33 41 4TNV98T-GGE 37 BW-184H 1800*710*1170 2200*850*1070
BYN55S 40 50 44 55 4TNV106-GGE 45 BW-224D 2000*710*1250 2250*930*1150
BYN62S 45 56 50 62 4TNV106T-GGE 50 BW-224E 2000*710*1320 2500*930*1200

5kw 6kva Electric Yanmar Diesel Generators With  Engine 3TNM68-GGE/HGE 05kw 6kva Electric Yanmar Diesel Generators With  Engine 3TNM68-GGE/HGE 15kw 6kva Electric Yanmar Diesel Generators With  Engine 3TNM68-GGE/HGE 25kw 6kva Electric Yanmar Diesel Generators With  Engine 3TNM68-GGE/HGE 3
