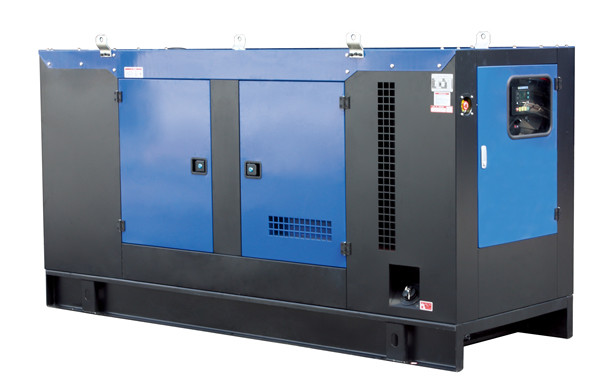

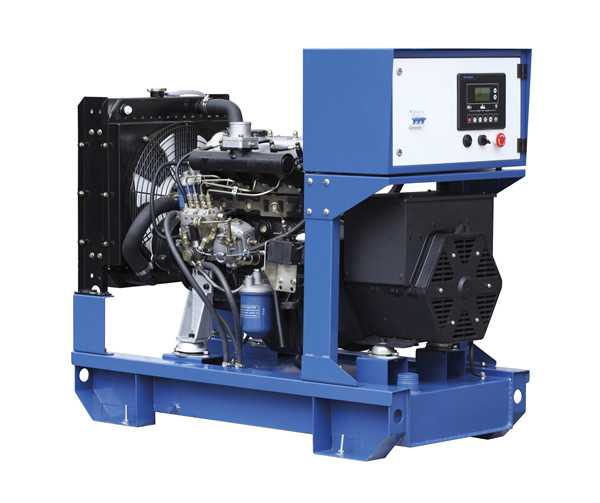

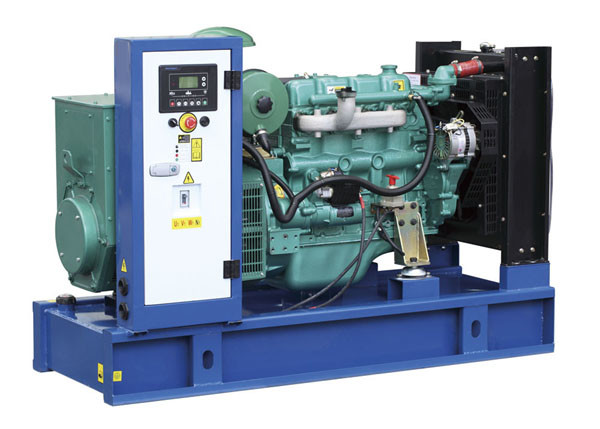

10KW-360KW Ricardo Engine Generator 50/60HZ Customized Canopy Tyoe

1 set
MOQ
10KW-360KW Ricardo Engine Generator 50/60HZ Customized Canopy Tyoe
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Warranty: 12 Months/1000 Hours
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Product Name: Diesel Genertor, Generator 250kw, Powered By Cummins Diesel Generator, Standby Use Power Diesel Generator 1000kw
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 10KW-360KW
Output Type: AC Single/Three Phase
Engine: Original Ricardo
Controller: Deepsea/Smartgen/etc
Cooling Method: Water-cooling System
Application: Indursty Bank Etc
High Light:

360KW ricardo engine generator

,

Ricardo Engine Generator Customized Canopy

,

Customized Canopy ricardo genset

Basic Infomation
Place of Origin: China
Brand Name: Ricardo
Certification: CE
Model Number: BW series
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

Diesel generator set powered by Ricardo engine 10KW-360KW with weifang engine like Kofo,Lambert,etc.

1.We cooperate with famous diesel engine Powered by original Yanmar engine,Cummins engine,Weichai engine,Yuchai engine etc.
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.


Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE

MODEL Prime Power KW Prime Power KVA Standby Power KW Standby Power KVA TYPE ENGINE Engine Model Alternator Model Brushless Size
BW14S 10 12.5 11 13.75 Silent RICARDO 50HZ 4YT23-20D BW-164C 1810*860*1025
BW14 10 12.5 11 13.75 Open RICARDO 50HZ 4YT23-20D BW-164C 1300*620*940
BW17S 12 15 13.2 16.5 Silent RICARDO 50HZ 4YT23-20D BW-164D 1800*880*1040
BW17 12 15 13.2 16.5 Open RICARDO 50HZ 4YT23-20D BW-164D 1300*620*940
BW21S 16 20 17.6 22 Silent RICARDO 50HZ 4YT23-20D BW-184ES 1900*880*1060
BW21 16 20 17.6 22 Open RICARDO 50HZ 4YT23-20D BW-184ES 1300*620*940
BW27.5S 20 25 22 27.5 Silent RICARDO 50HZ 4YT23-30D BW-184F /
BW27.5 20 25 22 27.5 Open RICARDO 50HZ 4YT23-30D BW-184F /
BW33S 24 30 26.4 33 Silent RICARDO 50HZ N4100DS BW-184G 2100*880*1150
BW33 24 30 26.4 33 Open RICARDO 50HZ N4100DS BW-184G 1540*670*1200
BW42S 30 37.5 33 41.25 Silent RICARDO 50HZ N4105DS-38 BW-184H 2200*890*1200
BW42 30 37.5 33 41.25 Open RICARDO 50HZ N4105DS-38 BW-184H 1640*670*1150
BW50S 36 45 39.6 49.5 Silent RICARDO 50HZ N4105DS-42 BW-224C 2200*890*1200
BW50 36 45 39.6 49.5 Open RICARDO 50HZ N4105DS-42 BW-224C 1680*670*1170
BW55S-1 40 50 44 55 Silent RICARDO 50HZ N4105ZDS BW-224D 2350*880*1200
BW55-1 40 50 44 55 Open RICARDO 50HZ N4105ZDS BW-224D 1680*670*1170
BW69S-2 50 62.5 55 68.75 Silent RICARDO 50HZ N4105ZLDS BW-224E 2450*890*1200
BW69-2 50 62.5 55 68.75 Open RICARDO 50HZ N4105ZLDS BW-224E 1780*700*1250
BW69S-1 50 62.5 55 68.75 Silent RICARDO 50HZ N4105ZDS BW-224E 2350*880*1200
BW69-1 50 62.5 55 68.75 Open RICARDO 50HZ N4105ZDS BW-224E 1780*700*1250
BW82S-2 60 75 66 82.5 Silent RICARDO 50HZ R6105ZDS BW-224F 2850*1040*1400
BW82-2 60 75 66 82.5 Open RICARDO 50HZ R6105ZDS BW-224F 2200*750*1440
BW82S-1 60 75 66 82.5 Silent RICARDO 50HZ N4105ZLDS BW-224F 2500*930*1200
BW82-1 60 75 66 82.5 Open RICARDO 50HZ N4105ZLDS BW-224F 1860*700*1250
BW82S 60 75 66 82.5 Silent RICARDO 50HZ R4105ZLDS BW-224F 2500*930*1200
BW82 60 75 66 82.5 Open RICARDO 50HZ R4105ZLDS BW-224F 1860*700*1250
BW82S-3 60 75 66 82.5 Silent RICARDO 50HZ 4RT55-88D BW-224F 2850*1040*1400
BW82-3 60 75 66 82.5 Open RICARDO 50HZ 4RT55-88D BW-224F 2200*750*1440
BW100S 70 87.5 77 96.25 Silent RICARDO 50HZ R6105ZDS BW-224G 2850*1040*1400
BW100 70 87.5 77 96.25 Open RICARDO 50HZ R6105ZDS BW-224G 2200*750*1440
BW100S-1 70 87.5 77 96.25 Silent RICARDO 50HZ 4RT55-88D BW-224G 2850*1040*1400
BW100-1 70 87.5 77 96.25 Open RICARDO 50HZ 4RT55-88D BW-224G 2200*750*1440
BW103S 75 93.75 82.5 103.125 Silent RICARDO 50HZ R6105ZDS BW-274C 2850*1040*1400
BW103 75 93.75 82.5 103.125 Open RICARDO 50HZ R6105ZDS BW-274C 2200*790*1440
BW103S-1 75 93.75 82.5 103.125 Silent RICARDO 50HZ 4RT55-88D BW-274C 2850*1040*1400
BW103-1 75 93.75 82.5 103.125 Open RICARDO 50HZ 4RT55-88D BW-274C 2200*790*1440
BW110S 80 100 88 110 Silent RICARDO 50HZ R6105ZLDS BW-274C 2850*1040*1400
BW110 80 100 88 110 Open RICARDO 50HZ R6105ZLDS BW-274C 2200*790*1440
BW110S-1 80 100 88 110 Silent RICARDO 50HZ R6105AZLDS BW-274C 2850*1040*1400
BW110-1 80 100 88 110 Open RICARDO 50HZ R6105AZLDS BW-274C 2200*790*1480
BW110S-2 80 100 88 110 Silent RICARDO 50HZ 4RT55-110D BW-274C 2850*1040*1400
BW110-2 80 100 88 110 Open RICARDO 50HZ 4RT55-110D BW-274C 2200*790*1480
BW123S 90 112.5 99 123.75 Silent RICARDO 50HZ R6105ZLDS BW-274D 2850*1040*1400
BW123 90 112.5 99 123.75 Open RICARDO 50HZ R6105ZLDS BW-274D 2200*790*1440
BW123S-1 90 112.5 99 123.75 Silent RICARDO 50HZ R6105AZLDS BW-274D 2850*1040*1400
BW123-1 90 112.5 99 123.75 Open RICARDO 50HZ R6105AZLDS BW-274D 2200*790*1440
BW123S-2 90 112.5 99 123.75 Silent RICARDO 50HZ 4RT55-110D BW-274D 2850*1040*1400
BW123-2 90 112.5 99 123.75 Open RICARDO 50HZ 4RT55-110D BW-274D 2200*790*1440
BW138SL-1 100 125 110 137.5 Silent RICARDO 50HZ 4RT55-110D BW-274D 2850*1040*1400
BW138L-1 100 125 110 137.5 Open RICARDO 50HZ 4RT55-110D BW-274D 2200*790*1480
BW138SL 100 125 110 137.5 Silent RICARDO 50HZ R6105AZLDS BW-274D 2850*1040*1400
BW138L 100 125 110 137.5 Open RICARDO 50HZ R6105AZLDS BW-274D 2200*790*1480
BW138S 100 125 110 137.5 Silent RICARDO 50HZ R6105BZLDS BW-274D 2850*1040*1400
BW138 100 125 110 137.5 Open RICARDO 50HZ R6105BZLDS BW-274D 2200*790*1480
BW165S 120 150 132 165 Silent RICARDO 50HZ R6105BZLDS BW-274E 3000*1040*1400
BW165 120 150 132 165 Open RICARDO 50HZ R6105BZLDS BW-274E 2320*790*1480
BW165S 120 150 132 165 Silent RICARDO 50HZ 6RT80-132D BW-274E 3000*1040*1400
BW165 120 150 132 165 Open RICARDO 50HZ 6RT80-132D BW-274E 2320*790*1480
BW206S 150 187.5 165 206.25 Silent RICARDO 50HZ 6RT80-176DE BW-274G 3100*1200*1500
BW206 150 187.5 165 206.25 Open RICARDO 50HZ 6RT80-176DE BW-274G 2370*990*1450
BW220S-1 160 200 176 220 Silent RICARDO 50HZ WT10B-231DE BW-274H 3650*1240*1700
BW220-1 160 200 176 220 Open RICARDO 50HZ WT10B-231DE BW-274H 2370*990*1450
BW247S 180 225 198 247.5 Silent RICARDO 50HZ WT10B-231DE BW-274J 3650*1240*1700
BW247 180 225 198 247.5 Open RICARDO 50HZ WT10B-231DE BW-274J 2370*990*1450
BW275S 200 250 220 275 Silent RICARDO 50HZ WT10B-231DE BW-274K 3650*1240*1700
BW275 200 250 220 275 Open RICARDO 50HZ WT10B-231DE BW-274K 2900*950*1850
BW343S 250 312.5 275 343.75 Silent RICARDO 50HZ WT10B-275DE BW-314DS 3900*1260*1880
BW343 250 312.5 275 343.75 Open RICARDO 50HZ WT10B-275DE BW-314DS 2980*1430*1920
BW413S 300 375 330 412.5 Silent RICARDO 50HZ WT13-330DE BW-314F 4050*1510*2050
BW413 300 375 330 412.5 Open RICARDO 50HZ WT13-330DE BW-314F 3100*1050*2150
BW440S 320 400 352 440 Silent RICARDO 50HZ WT13-360DE BW-314FS 4050*1510*2050
BW440 320 400 352 440 Open RICARDO 50HZ WT13-360DE BW-314FS 3100*1050*2150
BW500S 360 450 396 495 Silent RICARDO 50HZ WT13A-390DE BW-354C 4500*1810*2360
BW500 360 450 396 495 Open RICARDO 50HZ WT13A-390DE BW-354C 3600*1500*2460
