XICHAI 17KVA To 413kva Silent Dg Set 50hz Silent Running Diesel Generators

1
MOQ
XICHAI 17KVA To  413kva  Silent Dg Set 50hz  Silent Running Diesel Generators
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 400/230V,220V / 380V
Speed: 1500/1800rpm
Frequency: 50/60HZ
Rated Current: Depend
Rated Power: 6kva-3000kva
Output Type: AC Single/Three Phase
Warranty: 12 Months/1000 Hours
Alternator: Stamford
Type: Silent(super Silent)or Open
Product Name: Diesel Genertor
Engine: Powered By Cummins
Controller: Deepsea/Smartgen/etc
Options: Customer's Logo,ATS,ABB/ATS/Container/Trailer,tank Capacity,Soundproof Canopy
Color: Customers' Requirement
Protection Class: IP21-23
Cooling Method: Water-cooling System
Application: Sea Shipping
High Light:

XICHAI Silent Dg Set

,

413kva Silent Dg Set

,

17KVA Silent Running Diesel Generators

Basic Infomation
Place of Origin: China
Brand Name: XICHAI
Certification: ISO CE
Model Number: BFA17 BFA413
Payment & Shipping Terms
Packaging Details: Bubble Wrap or Plywood Case
Delivery Time: 30 working days
Product Description

High quality 17kva to 413kva silent and open  diesel generator prices with XICHAI engine

Products Features:
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Genset model Prime power KW Prime Power KVA Standby powerKW Standby Power KVA Engine Brand Engine Model Engine Power KW Alternator model
BFA16.5S 12 15 13 17 XICHAI 50HZ 4DW81-23D-YFD10W 17 BW-164D
BFA16.5 12 15 13 17 XICHAI 50HZ 4DW81-23D-YFD10W 17 BW-164D
BFA22S 16 20 18 22 XICHAI 50HZ 4DW91-29D-YFD10W 21 BW-184ES
BFA22 16 20 18 22 XICHAI 50HZ 4DW91-29D-YFD10W 21 BW-184ES
BFA27.5S 20 25 22 28 XICHAI 50HZ 4DW92-35D-YFD10W 26 BW-184FS
BFA27.5 20 25 22 28 XICHAI 50HZ 4DW92-35D-YFD10W 26 BW-184FS
BFA33S 24 30 26 33 XICHAI 50HZ 4DW92-39D-HMS20W 29 BW-184G
BFA33 24 30 26 33 XICHAI 50HZ 4DW92-39D-HMS20W 29 BW-184G
BFA33S 24 30 26 33 XICHAI 50HZ 4DW93-42D-YFD10W 31 BW-184G
BFA33 24 30 26 33 XICHAI 50HZ 4DW93-42D-YFD10W 31 BW-184G
BFA34.375S 25 31 28 34 XICHAI 50HZ 4DX21-45D-YFD10W 33 BW-184G
BFA34.375 25 31 28 34 XICHAI 50HZ 4DX21-45D-YFD10W 33 BW-184G
BFA41.25S 30 38 33 41 XICHAI 50HZ 4DX21-53D-HMS20W 39 BW-184H
BFA41.25 30 38 33 41 XICHAI 50HZ 4DX21-53D-HMS20W 39 BW-184H
BFA41.25S 30 38 33 41 XICHAI 50HZ 4DX22-50D-YFD10W 37 BW-184H
BFA41.25 30 38 33 41 XICHAI 50HZ 4DX22-50D-YFD10W 37 BW-184H
BFA55S 40 50 44 55 XICHAI 50HZ 4DX22-65D-HMS20W 48 BW-224D
BFA55 40 50 44 55 XICHAI 50HZ 4DX22-65D-HMS20W 48 BW-224D
BFA68.75S 50 63 55 69 XICHAI 50HZ 4DX23-78D-HMS20W 65 BW-224E
BFA68.75 50 63 55 69 XICHAI 50HZ 4DX23-78D-HMS20W 65 BW-224E
BFA77S 56 70 62 77 XICHAI 50HZ 4110/125Z-09D-YFD10W 65 BW-224F
BFA77 56 70 62 77 XICHAI 50HZ 4110/125Z-09D-YFD10W 65 BW-224F
BFA99S 72 90 79 99 XICHAI 50HZ CA4F2-12D-YFD10W 84 BW-274C
BFA99 72 90 79 99 XICHAI 50HZ CA4F2-12D-YFD10W 84 BW-274C
BFA110S 80 100 88 110 XICHAI 50HZ CA6DF2D-14D-YFD10W 96 BW-274C
BFA110 80 100 88 110 XICHAI 50HZ CA6DF2D-14D-YFD10W 96 BW-274C
BFA137.5S 100 125 110 138 XICHAI 50HZ CA6DF2-17D-YFD10W 125 BW-274D
BFA137.5 100 125 110 138 XICHAI 50HZ CA6DF2-17D-YFD10W 125 BW-274D
BFA165S 120 150 132 165 XICHAI 50HZ CA6DF2-19D-YFD11W 140 BW-274E
BFA165 120 150 132 165 XICHAI 50HZ CA6DF2-19D-YFD11W 140 BW-274E
BFA206.25S 150 188 165 206 XICHAI 50HZ CA6DL1-24D 176 BW-274G
BFA206.25 150 188 165 206 XICHAI 50HZ CA6DL1-24D 176 BW-274G
BFA247.5S 180 225 198 248 XICHAI 50HZ CA6DL2-27D 205 BW-274J
BFA247.5 180 225 198 248 XICHAI 50HZ CA6DL2-27D 205 BW-274J
BFA275S 200 250 220 275 XICHAI 50HZ CA6DL2-30D 227 BW-274K
BFA275 200 250 220 275 XICHAI 50HZ CA6DL2-30D 227 BW-274K
BFA343.75S 250 313 275 344 XICHAI 50HZ CA6DM2J-39D 286 BW-314DS
BFA343.75 250 313 275 344 XICHAI 50HZ CA6DM2J-39D 286 BW-314DS
BFA371.25S 270 338 297 371 XICHAI 50HZ CA6DM2J-41D 300 BK314ES
BFA371.25 270 338 297 371 XICHAI 50HZ CA6DM2J-41D 300 BK314ES
BFA412.5S 300 375 330 413 XICHAI 50HZ CA6DM3J-48D 350 BW-314F
BFA412.5 300 375 330 413 XICHAI 50HZ CA6DM3J-48D 350 BW-314F

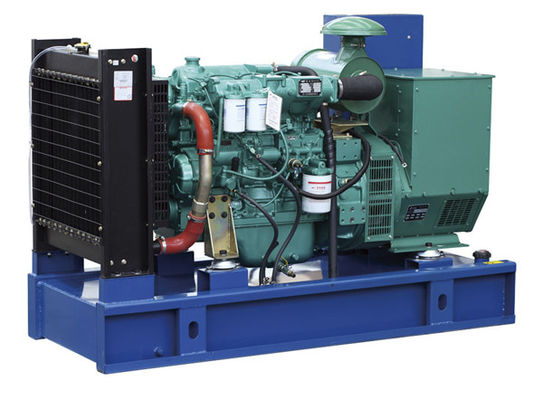

XICHAI 17KVA To  413kva  Silent Dg Set 50hz  Silent Running Diesel Generators 0

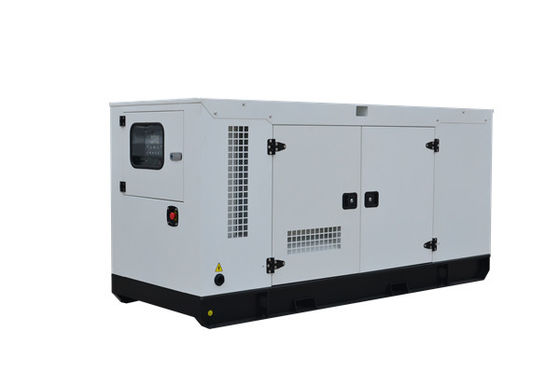

XICHAI 17KVA To  413kva  Silent Dg Set 50hz  Silent Running Diesel Generators 1

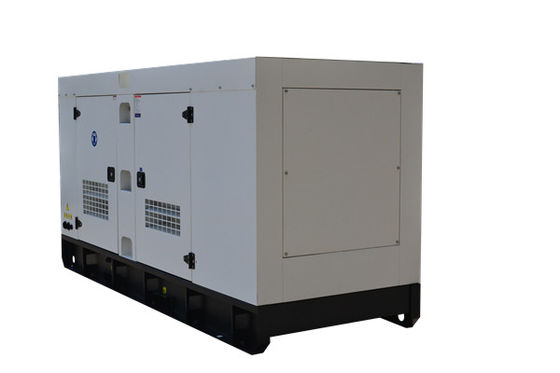

XICHAI 17KVA To  413kva  Silent Dg Set 50hz  Silent Running Diesel Generators 2XICHAI 17KVA To  413kva  Silent Dg Set 50hz  Silent Running Diesel Generators 3

Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25


Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.



Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list that we just made,please contact us by sales07@bobig.cn
