Indursty Bank Perkins 10kw Diesel Generator With IEC34 Standard

1 set
MOQ
Indursty Bank Perkins 10kw Diesel Generator With IEC34 Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Warranty: 12 Months/1000 Hours
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Product Name: Diesel Genertor, Generator 250kw, Powered By Cummins Diesel Generator, Standby Use Power Diesel Generator 1000kw
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 10KW
Output Type: AC Single/Three Phase
Engine: Original Perkins
Controller: Deepsea/Smartgen/etc
Cooling Method: Water-cooling System
Application: Indursty Bank Etc
High Light:

Bank Perkins 10kw Diesel Generator

,

IEC34 Standard Perkins Diesel Generator

,

IEC34 Standard 10kw Diesel Generator

Basic Infomation
Place of Origin: China
Brand Name: Perkins
Certification: CE
Model Number: BP series
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

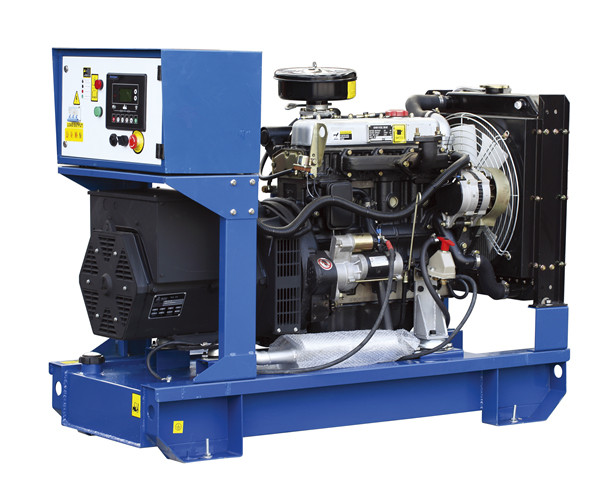

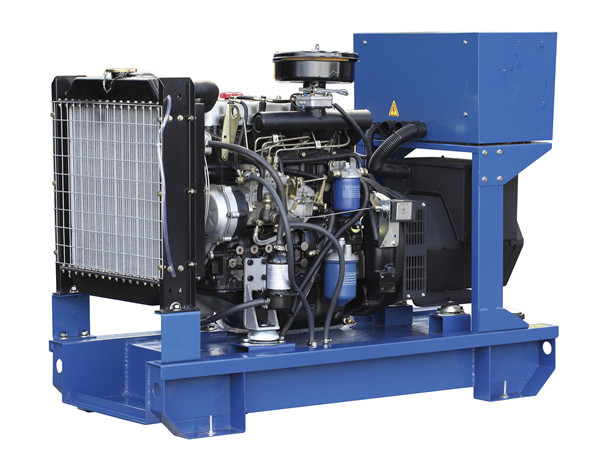

Diesel generator set powered by Perkins engine 10KW

Products Features:
1.We cooperate with famous diesel engine -Powered by original Perkins engine.
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.


Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25


Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.



Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.

Gensets Technical Data of Diesel Engine(50hz/1500rpm)

Alternator

(50hz/1500rpm)

Size
Model Gensets power(KW/KVA) Engine
model
Engine power/kw BOBIG

Open

type (MM)

sounproof

type (MM)

Prime Standby Prime
BP10 7 9 8 10 403A-11G1 made in china 7 BW-164B 1100*650*1000 1700*850*1000
BP14 10 13 11 14 403A-15G1 made in china 10 BW-164C 1150*650*1000 1750*850*1000
BP17 12 15 13 17 403A-15G2 made in china 12 BW-184D 1150*650*1000 1750*850*1000
BP22 16 20 18 22 404A-22G1 made in china 16 BW-184E 1300*650*1000 1900*850*1050
BP28 20 25 22 28 404D-22TG made in china 22 BW-184G 1550*610*1220 2000*850*1050
BP33 24 30 26 33 1103A-33G made in UK 24 BW-184G 1500*700*1150 2000*930*1200
BP33 24 30 26 33 1103A-33G made in India 24 BW-224C 1500*700*1150 2000*930*1200
BP50 36 45 40 50 1103A-33TG1 made in UK 36 BW-224E 1600*700*1200 2200*930*1250
BP50 36 45 40 50 1103A-33TG1 made in india 36 BW-224E 1600*700*1200 2200*930*1250
BP66 48 60 53 66 1103A-33TG2 made in UK 48 BW-224G 1680*700*1200 2300*930*1250
BP66 48 60 53 66 1103A-33TG2 made in india 48 BW-274C 1680*700*1200 2300*930*1250
BP72 52 65 57 72 1104A-44TG1 made in china 52 BW-274C 1850*700*1200 2500*930*1250
BP88 64 80 70 88 1104A-44TG2 made in china 64 BW-274C 1850*700*1200 2500*930*1250
BP110 80 100 88 110 1104C-44TAG2 made in china 81 BW-274E 1920*750*1250 2550*970*1280
BP149 108 135 119 149 1106A-70TG1 made in china 108 BW-274FS 2320*820*1550 3050*1040*1500
BP165 120 150 132 165 1106A-70TAG2 made in china 120 BW-274G 2400*820*1550 3150*1040*1500
BP198 144 180 158 198 1106A-70TAG3 made in china 144 BW-274H 2400*820*1550 3150*1040*1500
BP220 160 200 176 220 1106A-70TAG4 made in china 160 BW-274J 2450*820*1550 3150*1040*1500
BP248 180 225 198 248 1206A-E70TTAG2 made in UK 185 BW-274K 2600*1000*1850 3400*1250*1750
BP275 200 250 220 275 1206A-E70TTAG2 made in UK 206 BW-C4DS 2600*1000*1850 3400*1250*1750
BP330 240 300 264 330 1506A-E88TAG5 made in USA 246 BW-C4D 3100*1050*2100 3900*1400*1950
BP385 280 350 308 385 2206C-E13TAG2 made in USA 280 BW-C4E 3300*1150*2150 4500*1400*2250
BP413 300 375 330 413 2206C-E13TAG3 made in USA 320 BW-C4F 3300*1150*2150 4500*1400*2250
BP440 320 400 352 440 2206C-E13TAG3 made in USA 320 BW-C5C 3300*1150*2150 4500*1400*2250
BP495 360 450 396 495 2506C-E15TAG1 made in USA 364 BW-C5D 3600*1500*2460 4500*1810*2360
BP550 400 500 440 550 2506C-E15TAG2 made in USA 400 BW-C5E 3600*1500*2460 4500*1810*2360
BP605 440 550 484 605 2806C-E18TAG1A made in USA 473 BW-C5F 3600*1500*2460 4500*1810*2360
BP688 500 625 550 688 2806A-E18TAG2 made in USA 520 BW-LV6B 3800*1740*2745 4500*1810*2360
BP715 520 650 572 715 2806A-E18TAG2 made in USA 520 BW-LV6C 4500*1800*2745 5600*2200*2550
BP821U 597 746 657 821 4006-23TAG2A made in UK 597 BW-LV6D 4500*1800*2745 5600*2200*2550
BP821I 597 746 657 821 4006-23TAG2A made in india 597 BW-LV6E 4500*1800*2745 5600*2200*2550
BP880U 640 800 704 880 4006-23TAG3A made in UK 641 BW-LV6G 4500*1800*2745 5600*2200*2550
BP880I 640 800 704 880 4006-23TAG3A made in india 641 BW-LV6G 4500*1800*2745 5600*2200*2550
BP990U 720 900 792 990 4008TAG1A made in UK 728 BW-P7C 4500*1800*2745 5600*2200*2550
BP990I 720 900 792 990 4008TAG1A made in india 728 BW-P7D 4500*1800*2745 5600*2200*2550
BP1100U 800 1000 880 1100 4008TAG2A made in UK 818 BW-P7E 4500*1800*2745 6100*2250*3050
BP1100I 800 1000 880 1100 4008TAG2A made in India 818 BW-P7E 4500*1800*2745 6100*2250*3050
BP1238 900 1125 990 1238 4008-30TAG3 made in UK 900 BW-P7F 4650*2065*2500 6100*2250*3050
BP1375U 1000 1250 1100 1375 4012-46TWG2A made in UK 1000 BW-P7F 4650*2065*2500 6100*2250*3050
BP1375I 1000 1250 1100 1375 4012-46TWG2A made in india 1000 BW-P7G 4650*2065*2500 6100*2250*3050
