Cummins 100kva diesel generator set for home silent with stamford alternator deepsea controller cheap high quality

1 set
MOQ
Cummins 100kva diesel generator set for home silent with stamford alternator deepsea controller cheap high quality
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Warranty: 12 Months/1000 Hours
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Product Name: Diesel Genertor, Generator 250kw, Powered By Cummins Diesel Generator, Standby Use Power Diesel Generator 1000kw
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 100KVA
Output Type: AC Single/Three Phase
Engine: Original Cummins
Controller: Deepsea/Smartgen/etc
Cooling Method: Water-cooling System
Application: Indursty Bank Etc
Basic Infomation
Place of Origin: China
Brand Name: Cummins
Certification: CE
Model Number: BC22S
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description

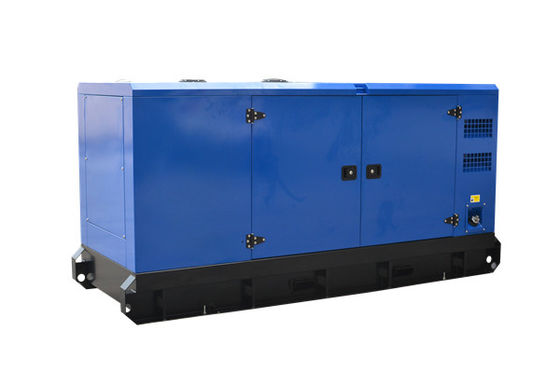

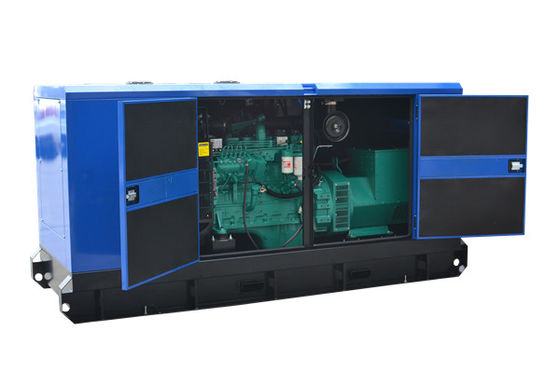

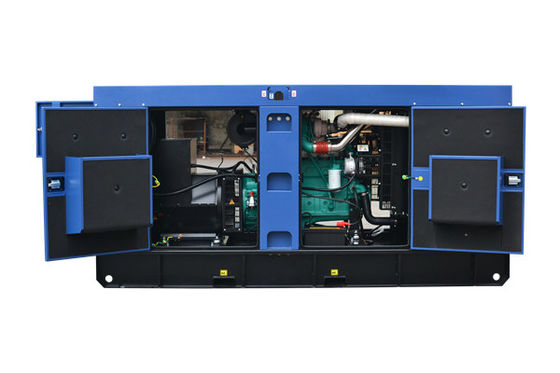

Diesel generator set powered by Cummins engine 100KVA

Products Features:
1.We cooperate with famous diesel engine -Powered by original Cummins engine.
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.


Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25


Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.



Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.



CUMMINS DIESEL GENERATING SETS TECHNICAL DATA
Gensets Technical Data of Diesel Engine(50hz/1500rpm) Alternator(50hz/1500rpm) Size
Model Gensets power(KW/KVA) Engine
model
Engine power/kw BOBIG Open type (MM) sounproof type (MM)
Prime Standby Prime
BC22 16 20 18 22 4B3.9-G11 20 BW-184ES 1450*620*1125 1950*850*1050
BC28 20 25 22 28 4B3.9-G1 24 BW-184F 1450*620*1125 1950*850*1050
BC41 30 38 33 41 4BT3.9-G1 36 BW-184H 1500*620*1150 2000*850*1050
BC55 40 50 44 55 4BTA3.9-G2 50 BW-224D 1600*620*1150 2200*880*1150
BC69 50 63 55 69 4BTA3.9-G11 70 BW-224E 1600*620*1150 2200*880*1150
BC83 60 75 66 83 4BTA3.9-G11 70 BW-224F 1820*780*1200 2500*970*1200
BC110 80 100 88 110 6BT5.9-G1 86 BW-274C 1900*700*1200 2500*970*1200
BC138 100 125 110 138 6BTA5.9-G2 106 BW-274D 2000*800*1500 2750*1040*1350
BC149 108 135 119 149 6BTAA5.9-G2 120 BW-274E 2350*800*1580 3200*1200*1660
BC165 120 150 132 165 6BTAA5.9-G12 140 BW-274E 2500*800*1760 3400*1250*1750
BC206 150 188 165 206 6CTA8.3-G1 165 BW-274G 2900*1120*1450 3800*1290*1900
BC220 160 200 176 220 6CTAA8.3-G2 183 BW-274H 2900*1120*1450 3800*1290*1900
BC275 200 250 220 275 6LTAA8.9-G2 220 BW-274K 2900*1120*1450 3800*1290*1900
BC303 220 275 242 303 6LTAA9.5-G3 250 BW-314D 3100*1050*2100 3900*1400*1950
BC330 240 300 264 330 NTA855-G1A 264 BW-314D 3100*1050*2150 4200*1600*2250
BC344 250 313 275 344 6LTAA9.5-G1 290 BW-314DS 3100*1050*2150 4200*1600*2250
BC385 280 350 308 385 NTA855-G2A 313 BW-314F 3100*1050*2150 4200*1600*2250
BC413 300 375 330 413 6ZTAA13-G3 340 BW-314F 3600*1500*2460 4500*1700*2000
BC468 340 425 374 468 6ZTAA13-G2 390 BW-354C 3600*1500*2460 4500*1810*2360
BC481 350 438 385 481 6ZTAA13-G4 400 BW-354C 4500*1800*2745 5600*2200*2550
BC550 400 500 440 550 QSZ13-G3 450 BW-354D 4500*1800*2745 5600*2200*2550
BC605 440 550 484 605 KTAA19-G5 470 BW-354DS 4500*1800*2745 5600*2200*2550
BC660 480 600 528 660 KTAA19-G6 520 BW-354E 4500*1800*2745 5600*2200*2550
BC688 500 625 550 688 KTAA19-G6A 550 BW-354FS 4500*1800*2745 5600*2200*2550
BC756 550 688 605 756 QSK19-G4 574 BW-354F 4500*1800*2745 5600*2200*2550
BC825 600 750 660 825 KTA38-G2 664 BW-404B 4500*1800*2745 5600*2200*2550
BC894 650 813 715 894 KTA38-G2B 711 BW-404C 4500*1800*2745 6100*2250*3050
BC1031 750 938 825 1031 KTA38-G2A 813 BW-404E 4650*2065*2500 6100*2250*3050
BC1100 800 1000 880 1100 KTA38-G5 880 BW-404E 4650*2065*2500 6100*2250*3050
BC1375 1000 1250 1100 1375 KTA38-G9 1089 BW-404H 4650*2065*2500 6100*2250*3050
BC1375 1000 1250 1100 1375 KTA50-G3 1097 BW-404H 4650*2065*2500 6100*2250*3050
BC1513 1100 1375 1210 1513 KTA50-G8 1200 BW-404J 4650*2065*2500 6100*2250*3050
BC1650 1200 1500 1320 1650 KTA50-GS8 1287 BW-454C 4650*2065*2500 6100*2250*3050





Cummins 100kva diesel generator set for home silent with stamford alternator deepsea controller cheap high quality 0

Cummins 100kva diesel generator set for home silent with stamford alternator deepsea controller cheap high quality 1





































































































Cummins 100kva diesel generator set for home silent with stamford alternator deepsea controller cheap high quality 2
