Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz

1
MOQ
USD 4500-7200
Price
Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

100kw silent diesel generator with CE certification

,

125kva silent diesel generator for factory

,

110kw YTO diesel generator with warranty
Basic Infomation
Place of Origin: China
Brand Name: YTO
Model Number: YTO LR6B3L-D
Payment & Shipping Terms
Packaging Details: 275*104*148cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Product Description

Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz



Product Description

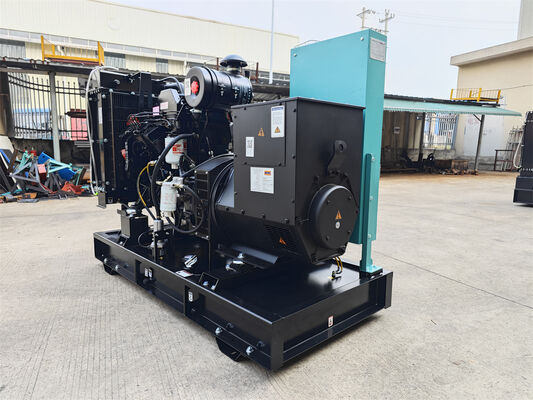

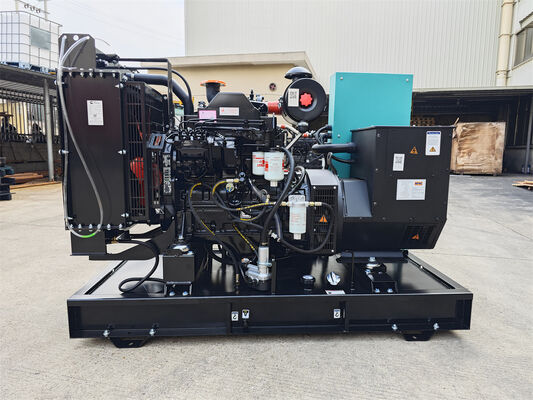

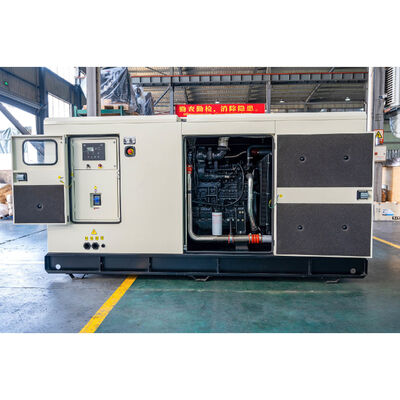

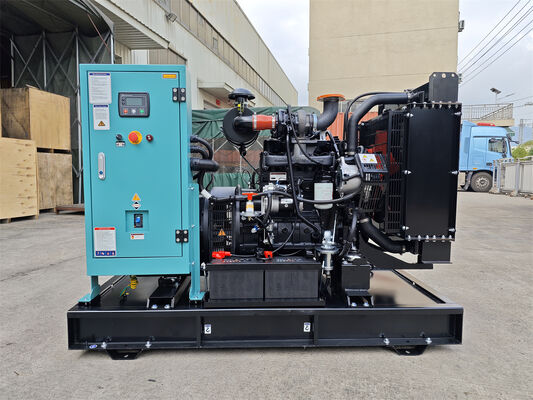

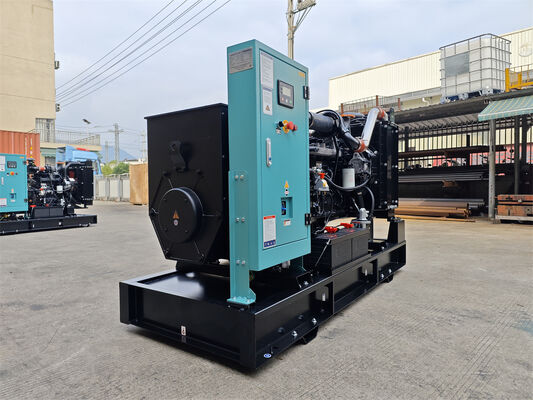

Our YTO LR6B3L-D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 120kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.



Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 0Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 1

General information Prime power Standby power
Rated Power (kVA) 150 165
Power Rating (kW) 120 132
Frequency (Hz) 50
Engine Model LR6B3L-D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
(According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin

Dimension and Weight
Model BYT165
Open type		 BYT165S
Silent type
Length (L) mm 2500 3170
Width (W) mm 800 1120
Height (H) mm 1760 1730
Tank capacity (L) 276 276







Engine Specification
Engine model & manufacturer LR6B3L-D(YTO)
Engine Model LR6B3L-D
No. of cylinders 6
Cylinder arrangement In-line
Cycle 4 stroke,compression ignition
Method of air aspiration Turbocharged with aia-air intercooler
Cooling medium Liquid
Bore 108 mm
Stroke 125 mm
Compression ratio 17.0:1
Cubic capacity 6.87 L
Dry engine weight 665 kg
Dimension(L*W*H) 1081*1456*708
Direction of rotation Anti - clockwise viewed on flywheel
Governed Engine Speed 1500
Firing order 1-5-3-6-2-4 (1cyl furthest from flywheel)
Standby Power 153
Adaptive power station (kw) 138
Steady state speed stability at constant load 3%

Alternator Specifica
Alternator
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274E
Alternator Rated Power 120kw/150kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
specific fuel consumption ≤ 202g / kw.h
Transient State Voltage ≤-15%~+20%




Control Panel



DSE 6120

Auto start and auto mains failure control module(Alternator frequency & can speed sensing)

  Key benefits
•Automatically transfers betweenmains (utility) and generator
(DSE6120 MKIII only) forconvenience.
•Hours counter provides accurateinformation for monitoring andmaintenance periods
•User-friendly set-up and buttonlayout for ease of use
•Multiple parameters are monitored& displayed simultaneously for fullvisibility
•The module can be configured tosuit a wide range of applications foruser flexibility
•PLC editor allows user configurablefunctions to meet user specificapplication requirements.

  Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 2









Key features
•4-line back-lit LCD text display
•Multiple display languages
•Five-key menu navigation
•LCD alarm indication
•Customisable power-up text andscreen images.
•DSENet® expansion compatibility
•Data logging facility
•Internal PLC editor
•Protections disable feature
•Fully configurable via PC using
USB communications
•Front panel configuration withPIN protection
•Power save mode
•3-phase generator sensing andprotection
•3-phase mains (utility) sensing andprotection (DSE6120 MKIII only)
•Automatic load transfer control(DSE6120 MKIII only)
•Generator current and powermonitoring (kW, kvar, kVA, pf)
•Mains (utility) current and power
monitoring (kW
, kvar, kVA, pf)(DSE6120 MKIII only)
•kW overload alarm
•Over current protection
•Breaker control via fascia buttons



  •Fuel and start outputs configurablewhen using CAN
•6 configurable DC outputs
•4 configurable analogue/digitalinputs
•Support for 0 V to 10 V & 4 mA to20 mA sensors
•8 configurable digital inputs
•CAN, MPU and alternatorfrequency speed sensing in onevariant
•Real time clock
•Manual and automatic fuel pumpcontrol
•Engine pre-heat and post-heatfunctions
•Engine run-time scheduler
•Engine idle control for starting &stopping
•Fuel level alarms
•3 configurable maintenance alarms
•Compatible with a wide range ofCAN engines, including Tier 4engine support
•Uses DSE Configuration Suite PC
Softwar
e for simplifiedconfiguration
•Licence-free PC software
•IP65 rating (with optional gasket)offers increased resistance to wateringress
•Configurable CAN read &transmitted information.
•1 alternative configuration





















Options



Engine Alternator Fuel System Generating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		 PMG excitation
Space heater
inding temperature
measuring		 12 / 24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank
and base tank (three-way valve)		 Deepsea, ComAp, Smartgen
etc. controller
Trailer
Tools with the machine
Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 3Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 4
Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 5

Three Phase Generator Diesel 120KW 150KW Price for YTO Silent Genset Three Phase 60hz 50hz 6
